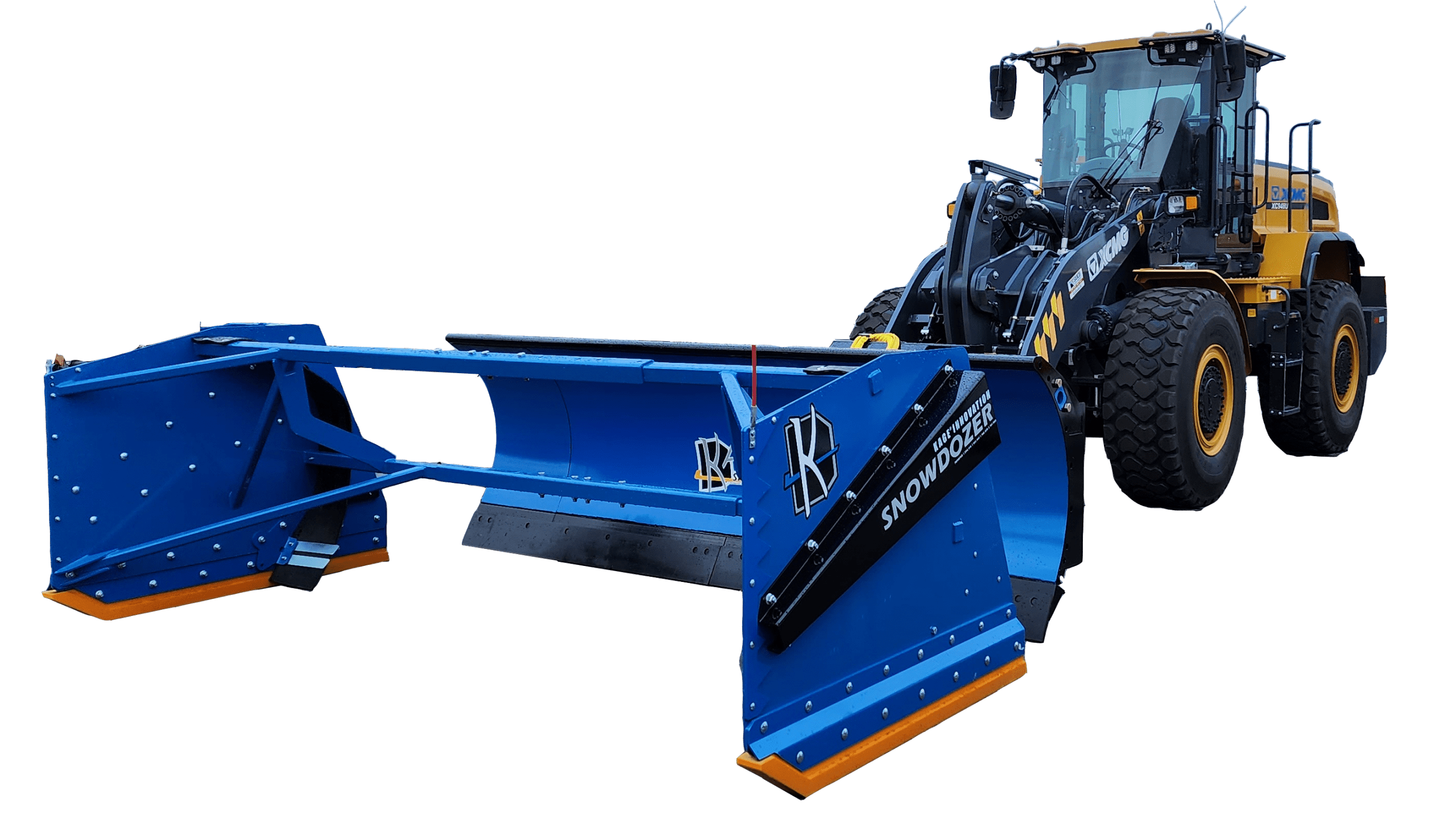

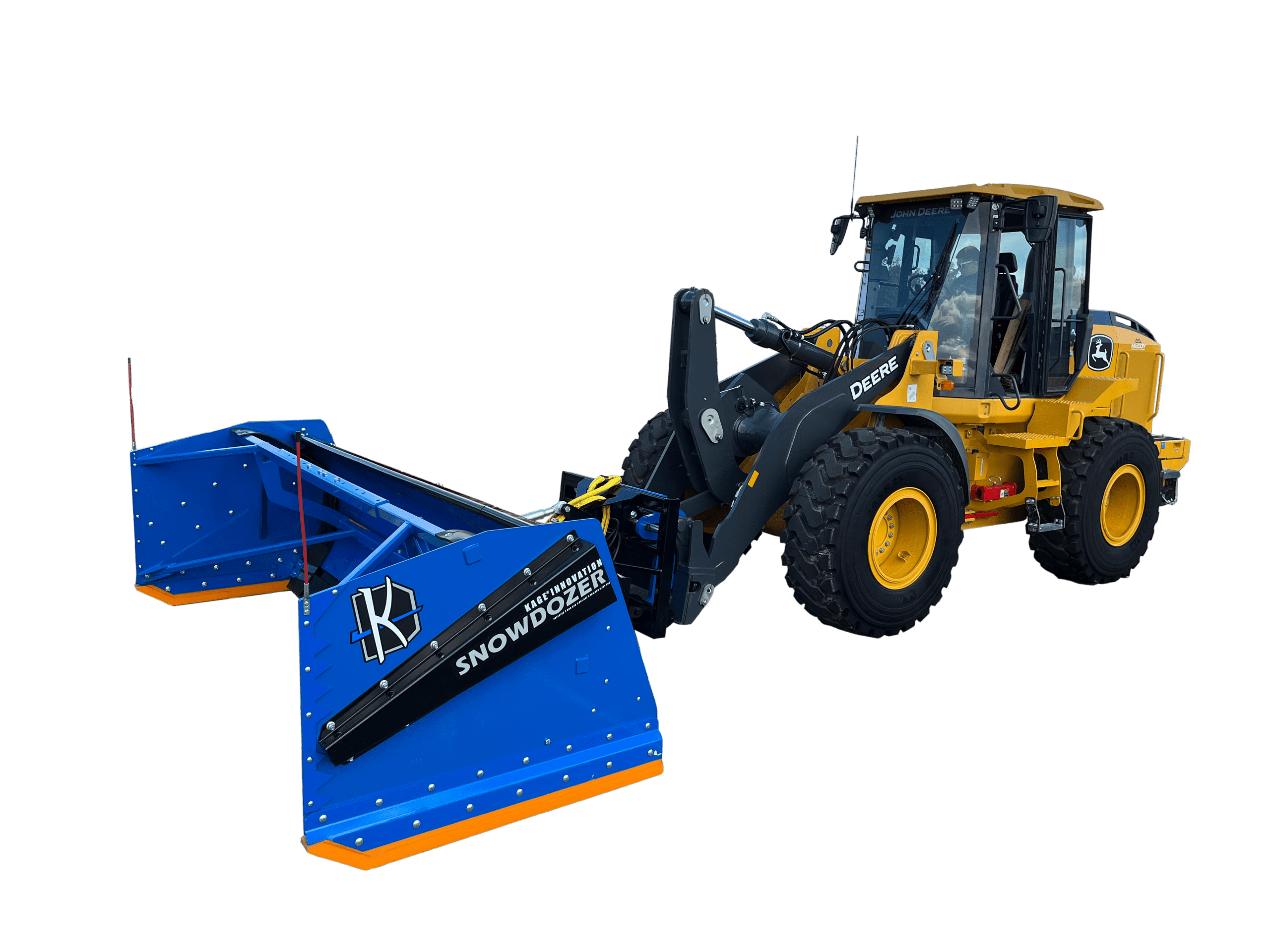

Snow Plow And Pusher For Large Loaders
The KAGE® SnowDozer™ is the largest plow in our lineup. The SnowDozer is built for large wheel loaders in the 30 – 50K range. Available in 12 foot – 20 foot ranges in increments of 2 feet. Heavy duty, and yet the operator still has the ability to switch between angle plowing and snow pushing making this large snow plow attachment exceptionally quick & nimble. This KAGE System rounds out your snow removal fleet with the power to push huge amounts of snow, and agility to do cleanup and opening operations as well!

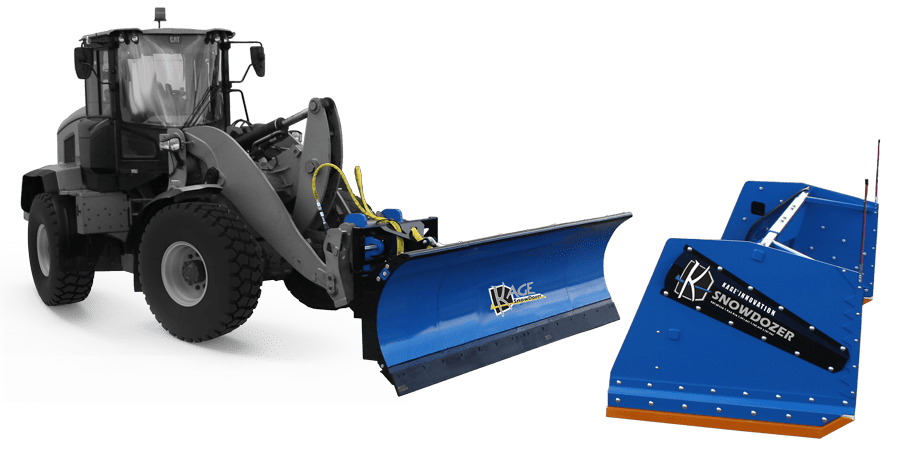

Snow Plow and Box Pusher System for Large Wheel Loaders
Combining Snow Plowing with Snow Pushing
The KAGE system combines snow plowing and snow pushing into one machine, and one operator. The simple advantages of both methods are now brought together seamlessly by being able to reliably switch from the cab, in seconds. The regular snow pusher box is less productive without having another piece of equipment along to do back dragging, scraping, and general cleanup. Not to mention that it will leave trails on both sides once it becomes full of snow. The KAGE System can angle and ‘swoop’ out corners – even with the SNOWKAGE attached – the KAGE SnowDozer is really an ‘angle pusher’ at heart. This Plow System just grew up smarter and faster than all the rest! The SNOWKAGE box comes completely off of the plow. This means that it is not hindering the operation of the angle plow when it’s not needed. Wing plows that have movable containment wings on the ends are heavy and expensive to repair. One wrong hit on a wing might put the entire unit out of use.

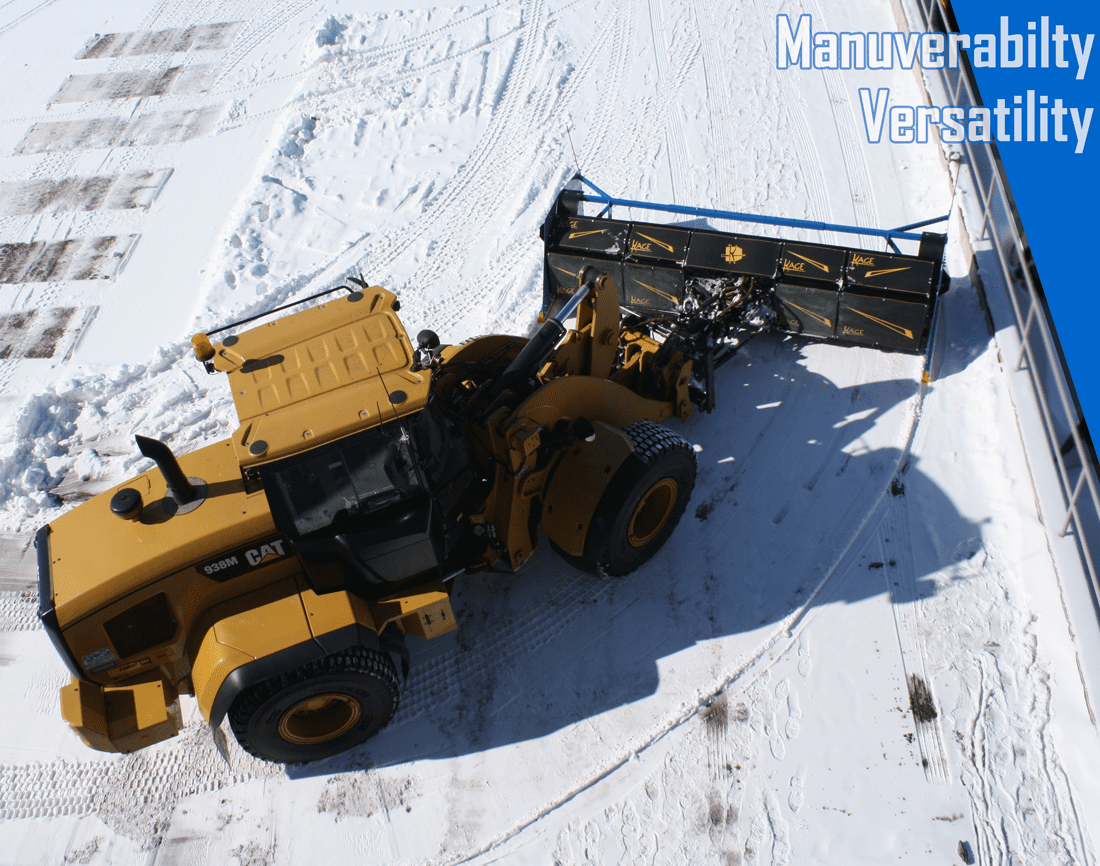

The KAGE system is great for close proximity cleanup, as well as straight snow stacking and hogging. Because the plow and box can angle and separate the operator can fit into smaller areas than before, and when it’s time to just push, you still have the weight and horsepower needed to push mountains of snow! The applications for the KAGE system combined with the brute force of large wheel loaders are virtually endless. Imagine the profitability gained by replacing a pusher and a pickup truck with one KAGE System. Your sites can look better, faster, with less equipment and manpower. That is the KAGE Advantage.

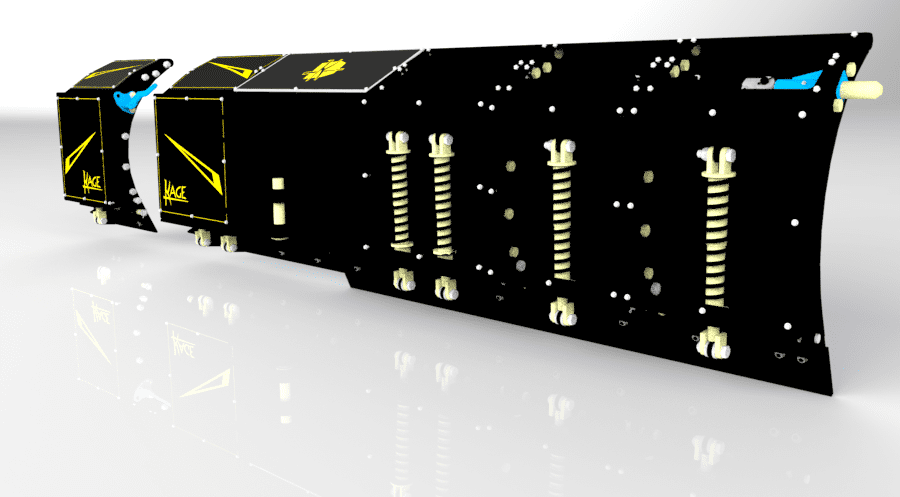

Modular Moldboard(s)
The Blade is the backbone of the SnowDozer System. With that in mind, we build each moldboard as if it has to go into battle. The Modular design of the SnowDozer moldboard allows you to customize just the right size plow for the job – without the wait of an entirely custom plow! Grade 50 steel is the standard for the moldboard skin showing that we care about the materials we use. Not only does that increase tensile strength over mild steel, but helps reduce the effects of corrosion. Baked on powder coat and primer at 400+ degrees safeguards all of the steel components, and keeps The Blade looking great for years. The standard Blue and Black two-tone finish that is so unique to KAGE signifies that it is a long lasting, quality product by KAGE Innovation®.
Trip Edge
The SnowDozer Blade has trip edges which safeguard from damage when encountering hidden obstacles. Each trip edge trips back to clear obstacles such as curbs, and manhole covers. The trip edges are a crucial feature for efficient plowing. You can’t tip-toe around things that you cannot see, that takes too much time. Let the trip edge be your ‘whiskers’ letting you know what is out there! Both sections of the trip edge have 3/4 x 8” High Carbon steel cutting edges standard (AdvantEdge System Optional). The standard cutting edges are common to the highway plow market, and the hole spacing is referred to as a “Standard Highway Punch”, so replacements are available most anywhere it snows; no need to stock custom edges or hardware for replacements! The trip edge action is powered by compression spring packs. The springs keep the edge from false tripping while pushing, meaning you can scrape and push without tripping unnecessarily.

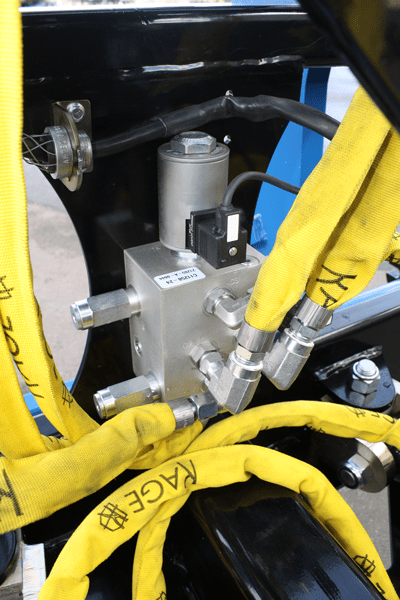

Hydraulic System
The Hydraulic System for the Blade powers the plow left and right, and if you are using it in combination with the SnowKage it locks the box onto the plow hydraulically. We, too, absolutely dread that ‘midnight maintenance’ so we had that in mind when we put this hydraulic system together. This resulted in standard preventative stuff like hose covering on all hoses, and a crossover relief valve standard. Two 3” bore x 1.5” rod hydraulic cylinders work together to power the plow left and right 34 degrees. The electric diverter valve is standard equipment with the System, which enables machines with only one auxiliary function to operate the hydro lock pins to lock the SnowKage on as well as the angle function of the plow. Just the flick of a switch is all you need to switch power from the angle cylinders to the lock pins. You won’t have to think twice about the Deutsch® plugs, heavy duty 5/8” O.D. ‘trailer cable’, strain relief cord grip, or lighted solenoids that all make up this expert setup. The standard valve operates on 24VDC, a 12VDC option is available.

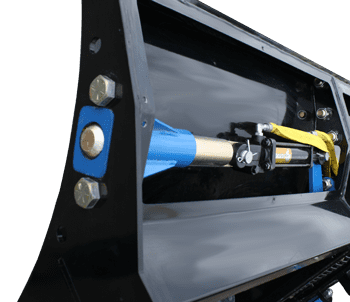

Angle Cylinders
Heavy duty 3″ Bore x 1.5″ Cylinders power the plow left and right 34 degrees. Heavy duty knuckles keep the cylinders from binding as the plow oscillates.
Wire Harness
The provided wire harness runs up into the cab, and has a Deutsch plug midstream to quickly disconnect the plow from the machine. Alternatively if you are running Cat brand machines, the 8 pin wire harness will plug directly into the auxiliary power supply and uses the OEM in cab auxiliary switch.
Floating Quick Attach
The quick attach that couples the carrier (machine) to the plow has float built right into the ears. The lower pivot points rotate on 2 x 2″ diameter 1018 cold rolled pins, while the upper slots allow the plow to float up and down riding perfectly over humps and dropping into dips. This floating system allows the operator to concentrate on driving, and not so much on the tilt or level that the plow is sitting at. Don’t worry, whenever you want positive down pressure, simply tip the attachment forward until the quick attach meets the end of the slots, and pushes into the plow frame. (see the options tab for a list of available quick attaches)
Plow Oscillation
The SnowDozer oscillates side to side to keep the cutting edges on the plowing surface at all times. The oscillation happens directly on the moldboard itself, so as the plow is hydraulically angled, the oscillation still operates as usual. The bottom line is that no matter the plow angle, the oscillation will still perform as it should. Another notable feature that is unique to the SnowDozer is our new oscillate control system, or OCS. This system uses two factory-pressurized hydraulic rams to level the plow when it is elevated – for example during transport.
Throw Pitch
The 48” tall moldboard can be manually trimmed to adjust the snow throwing pitch, and attack angle of the cutting edge.
Highway Punch Cutting Edges
The SnowDozer comes equipped with 8″ x 3/4″ thick 1084 High Carbon steel cutting edges. The cutting edges comply to the standard ‘Highway Punch’ mounting pattern, so no need for custom cutting edges. We really strive to make it easy for you, and if it’s easier for you to source cutting edges locally, do that. Otherwise you can purchase them directly from the factory, or one of our authorized dealers!

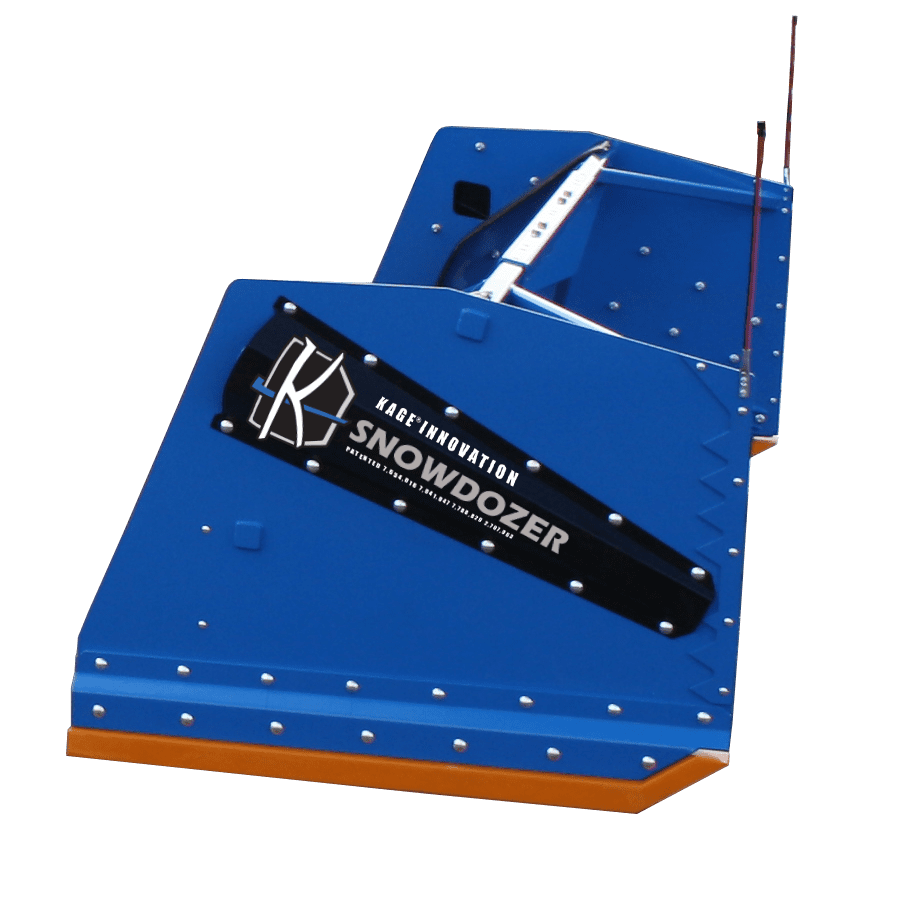

The SNOWKAGE Box
The SNOWKAGE box is the genius behind the SnowDozer System. So simple yet so intuitive. It stands alone when not in use, but mates perfectly to the Blade when needed in order to push huge amounts of snow out of the way.

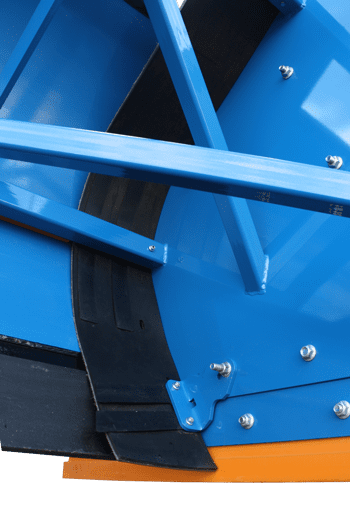

Tough Supports
Tough, triangulated supports mean that you can push this to the extreme with no breakdowns.

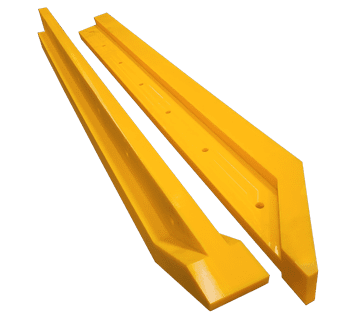

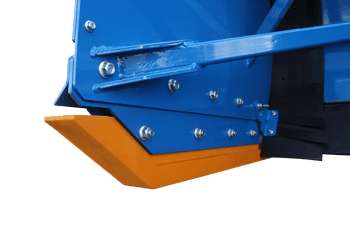

Polyurethane Skids
The 2” thick polyurethane skids are gentle on curbs and other surfaces prone to damage. The steel formed parts that hold the skid are slotted for adjustment as the cutting edge of the plow becomes worn. The 10” wide, ½” thick conveyor belt contours to the radius of the moldboard keeping the snow sealed within.

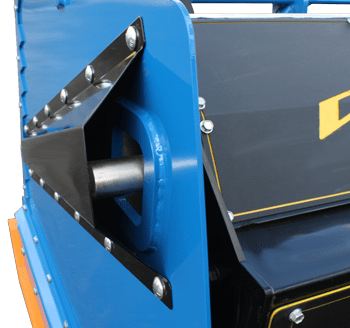

Hydro Lock Pins
The Hydro Lock Pins drive out from each end of the plow hydraulically to engage the openings in the SnowKage. Each opening is enlarged so that the SnowKage Box can float up and down, and
tilt forward and backwards. This ensures that the SnowKage floats independently from the plow, and the cutting edges of the plow are in constant contact with the plowing surface! You don’t have to worry about getting the perfect pitch adjustment – just drop and go!
Wheel Loader Attachments
Quick Attaches
The wheel loader hitch can accommodate most quick attaches found on wheel loaders and tractor loader backhoes. The pivot frame of the plow remains the same, and the quick attach, particular to your make / model of machine merely pins on with 4, 2 inch pins. Look closely and you will see that the blade will float up and down for uneven terrain. Down pressure? Sure, just ‘dump’ the quick attach with the curl function and it will bottom out, creating down pressure for back dragging or scraping ice!

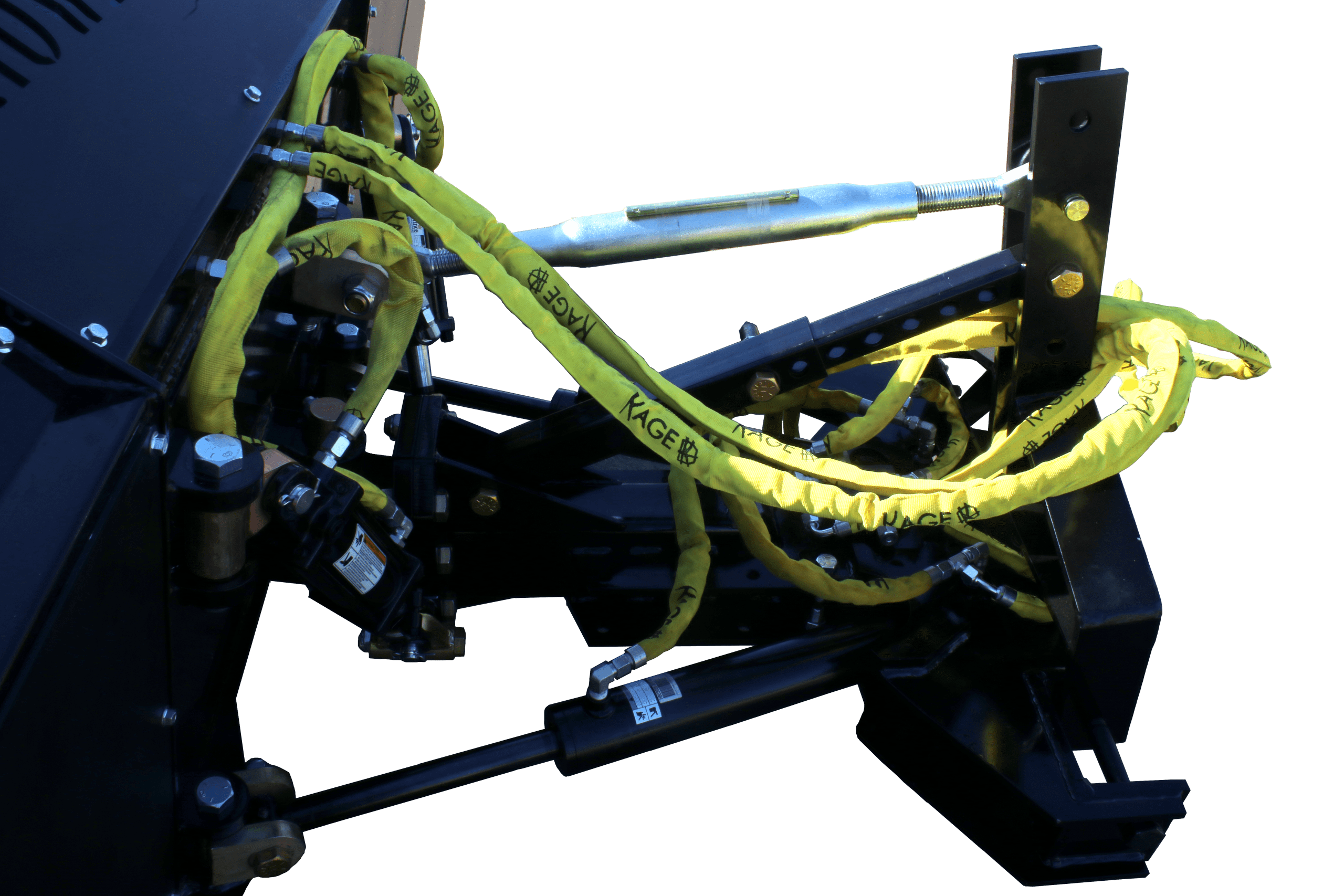

3 Point Hitch
For ag tractors, the 3 point hitch provides a compact attachment, and full range of motion while keeping the plow as close to the machine as possible. Universal to any CAT II, 3 point hitch, it can be used in combination with one of our Kage Tractor Undercarriages, or any other brand.
Carbide Edge Extenders
Optional Carbide Edge Extenders can be bolted on to the center and ends of the trip edge, increasing the longevity of the cutting edges.

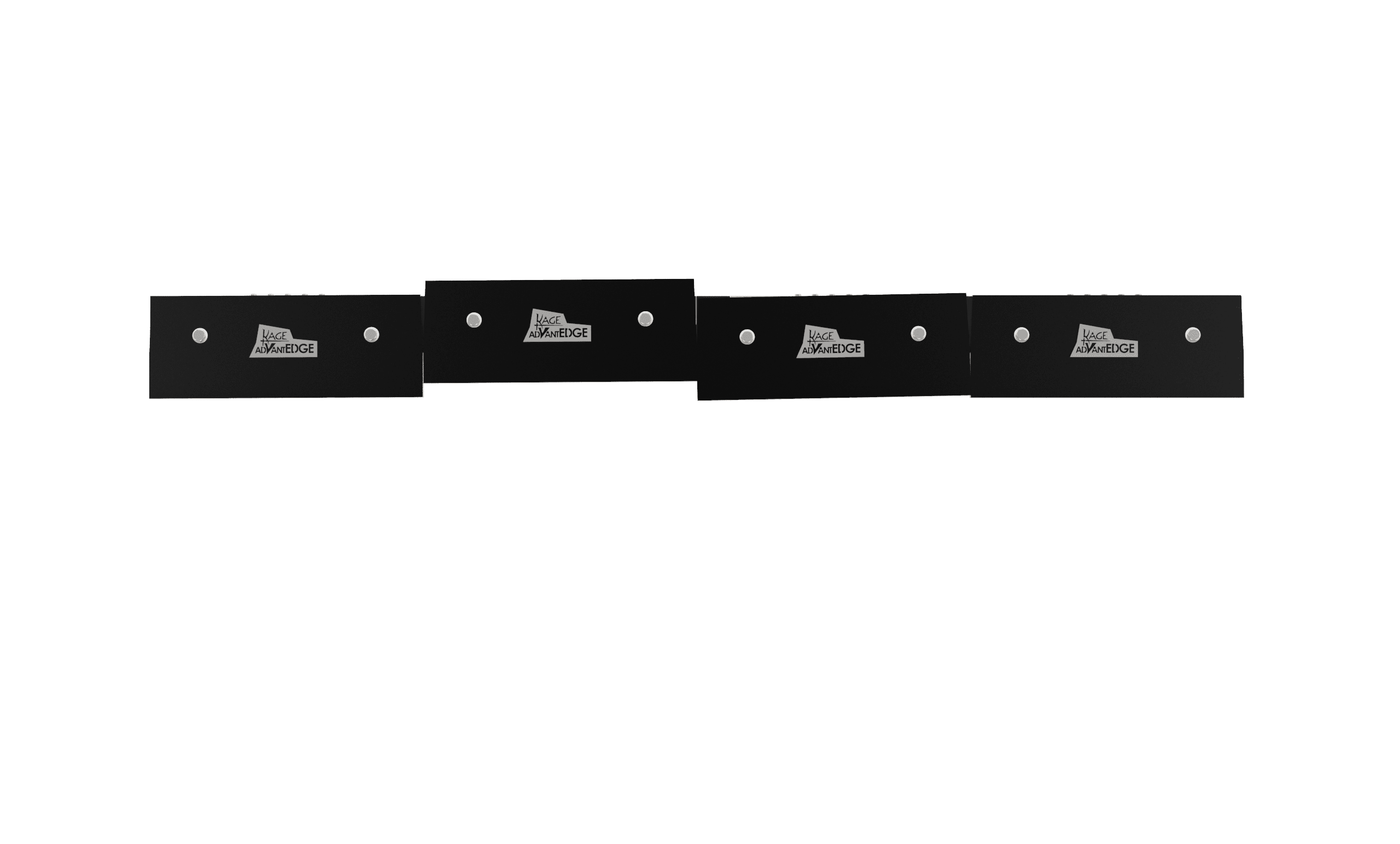

AdvantEdge Sectional Cutting Edge
Optionally install the AdvantEdge Cutting Edge System onto your SnowDozer Blade for the cleanest scrape.
Screw-Type Couplers
Cat screw-type couplers are optional to replace the standard 1/2″ Body Flat Faced ISO 16028 couplers.
12VDC Coils
Optionally choose the 12VDC coils instead of the standard 24VDC coils, if your machine has a 12VDC system.

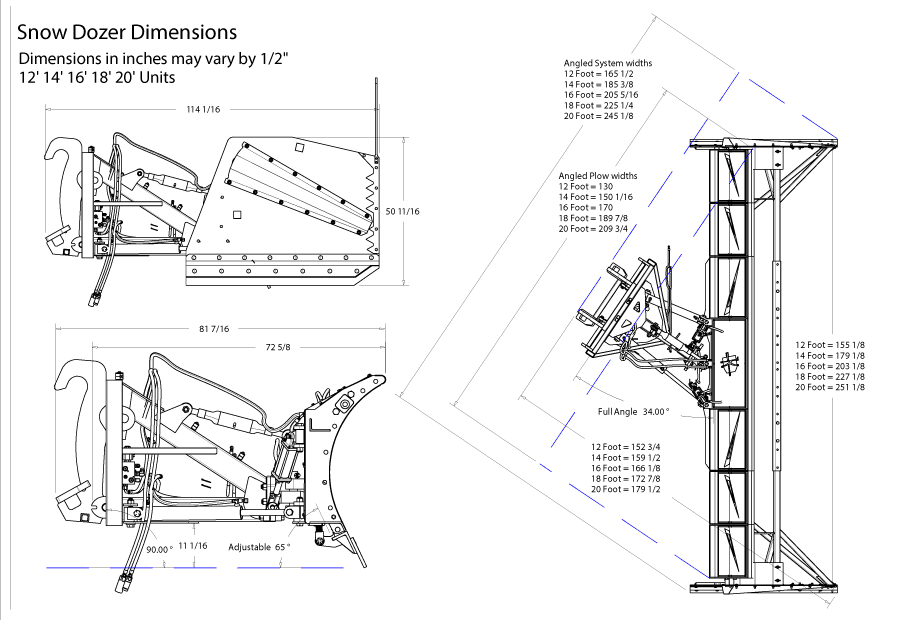

Specifications
The Blade SD
BP12'
For Machines Weighing 25,000 – 50,000 lbs | BP12 |
---|---|
Machine Size Rec. | 25K-50K |
Angle | 34° |
Blade Width | 12′ |
Blade Width at Full Angle | 130″ |
Oscillation Each End (Degrees/Inches) | 12° |
Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
Trip Springs (Compression) | 6 |
Cutting Edge (High Carbon) | 3/4″ x 8″ x 6′ (2) |
Pivot Frame Length for Loader Attachment | 48″ |
Weight | 4,917 lbs. |
Cylinders | 3″ Bore 1 1/2″ Rod (2) |
Blade Height | 48″ |
BP14'
For Machines Weighing 25,000 – 50,000 lbs | BP14 |
---|---|
Machine Size Rec. | 25-50K |
Angle | 34° |
Blade Width | 14′ |
Blade Width at Full Angle | 150.06″ |
Oscillation Each End (Degrees/Inches) | 12° |
Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
Trip Springs (Compression) | 6 |
Cutting Edge (High Carbon) | 3/4″ x 8″ x 7′ (2) |
Pivot Frame Length for Loader Attachment | 48″ |
Weight | 5,114 lbs |
Cylinders | 3″ Bore 1 1/2″ Rod (2) |
Blade Height | 48″ |
BP16'
For Machines Weighing 25,000 – 50,000 lbs | BP16 |
---|---|
Machine Size Rec. | 25-50K |
Angle | 34° |
Blade Width | 16′ |
Blade Width at Full Angle | 170″ |
Oscillation Each End (Degrees/Inches) | 12° |
Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
Trip Springs (Compression) | 8 |
Cutting Edge (High Carbon) | 3/4″ x 8″ x 8′ (2) |
Pivot Frame Length for Loader Attachment | 48″ |
Weight | 5,527 lbs. |
Cylinders | 3″ Bore 1 1/2″ Rod (2) |
Blade Height | 48″ |
BP18'
For Machines Weighing 25,000 – 50,000 lbs | BP18 |
---|---|
Machine Size Rec. | 25-50K |
Angle | 34° |
Blade Width | 18′ |
Blade Width at Full Angle | 225.25″ |
Oscillation Each End (Degrees/Inches) | 12° |
Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
Trip Springs (Compression) | 8 |
Cutting Edge (High Carbon) | 3/4″ x 8″ x 9′ (2) |
Pivot Frame Length for Loader Attachment | 48″ |
Weight | 5,722 lbs |
Cylinders | 3″ Bore 1 1/2″ Rod (2) |
Blade Height | 48″ |
BP20'
For Machines Weighing 25,000 – 50,000 lbs | BP20 |
---|---|
Machine Size Rec. | 25-50K |
Angle | 34° |
Blade Width | 20′ |
Blade Width at Full Angle | 209.75 |
Oscillation Each End (Degrees/Inches) | 12° |
Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
Trip Springs (Compression) | 12 |
Cutting Edge (High Carbon) | 3/4″ x 8″ x 9′ (2) |
Pivot Frame Length for Loader Attachment | 48″ |
Weight | 5912 lbs. |
Cylinders | 3″ Bore 1 1/2″ Rod (2) |
Blade Height | 48″ |
The SNOWKAGE SD
BPSK12'
For Machines Weighing 25,000 – 50,000 lbs | BPSK12 |
---|---|
Machine Size Rec. | 25-50K |
Height of Box | 41″ |
Overall Width | 155.12″ |
Overall Width at Full Angle | 165.5″ |
Poly Skids | 2″ x 10″ x 42″ |
Weight (Blade and Box) | 6,974 lbs. |
BPSK14'
For Machines Weighing 25,000 – 50,000 lbs | BPSK14 |
---|---|
Machine Size Rec. | 25-50K |
Height of Box | 41″ |
Overall Width | 179.12″ |
Overall Width at Full Angle | 185.37″ |
Poly Skids | 3.5″ x 6.75″ x 66″ |
Weight (Blade and Box) | 7,170 lbs. |
BPSK16'
For Machines Weighing 25,000 – 50,000 lbs | BPSK16 |
---|---|
Machine Size Rec. | 25-50K |
Height of Box | 41″ |
Overall Width | 203 1/8 |
Overall Width at Full Angle | 205.31″ |
Poly Skids | 3.5″ x 6.75″ x 66″ |
Weight (Blade and KAGE) | 7,357 lbs. |
BPSK18'
For Machines Weighing 25,000 – 50,000 lbs | BPSK18 |
---|---|
Machine Size Rec. | 25-50K |
Height of Box | 41″ |
Overall Width | 227 1/8 |
Overall Width at Full Angle | 225.25″ |
Poly Skids | 3.5″ x 6.75″ x 66″ |
Weight (Blade and KAGE) | 7,846 lbs. |
BPSK20'
For Machines Weighing 25,000 – 50,000 lbs | BPSK20 |
---|---|
Machine Size Rec. | 25-50K |
Height of Box | 41″ |
Overall Width | 251.12 |
Overall Width at Full Angle | 245.12 |
Poly Skids | 3.5″ x 6.75″ x 66″ |
Weight (Blade and KAGE) | 8,037 lbs. |
Available Quick Attaches
Make / Model | Number |
---|---|
JRB 416 | JRB416 |
JRB 418 | JRB418 |
CAT IT28 | CATIT28F-K |
JCB 514 | JCB514 |
JRB 418 | JRB418 |
CAT IT38 | CATIT38F-K |
CAT FUSION | CATFUSION |
JOHN DEERE WORKSITEPRO | JDWKSP |
HYUNDAI | HL740TM |
ACS | CALL |
VOLVO | 356-1 |
TEREX | TERSKI863 |
