Snow Pusher to Snow Plow in Seconds
The KAGE® Snowfire Snow Plow Box System for skid steers and compact wheel loaders has a revolutionary design that is built to withstand the rigors of commercial snow plowing. This patented 2-in-1 system allows the operator to switch between angle plowing, back dragging, and pushing the snow. Simply and seamlessly transition from angle plowing to snow pushing…. all within seconds and from the cab! That is the KAGE advantage!
Snow Plows For Skid Steer, Compact Wheel Loader, Compact Utility Tractor
- System

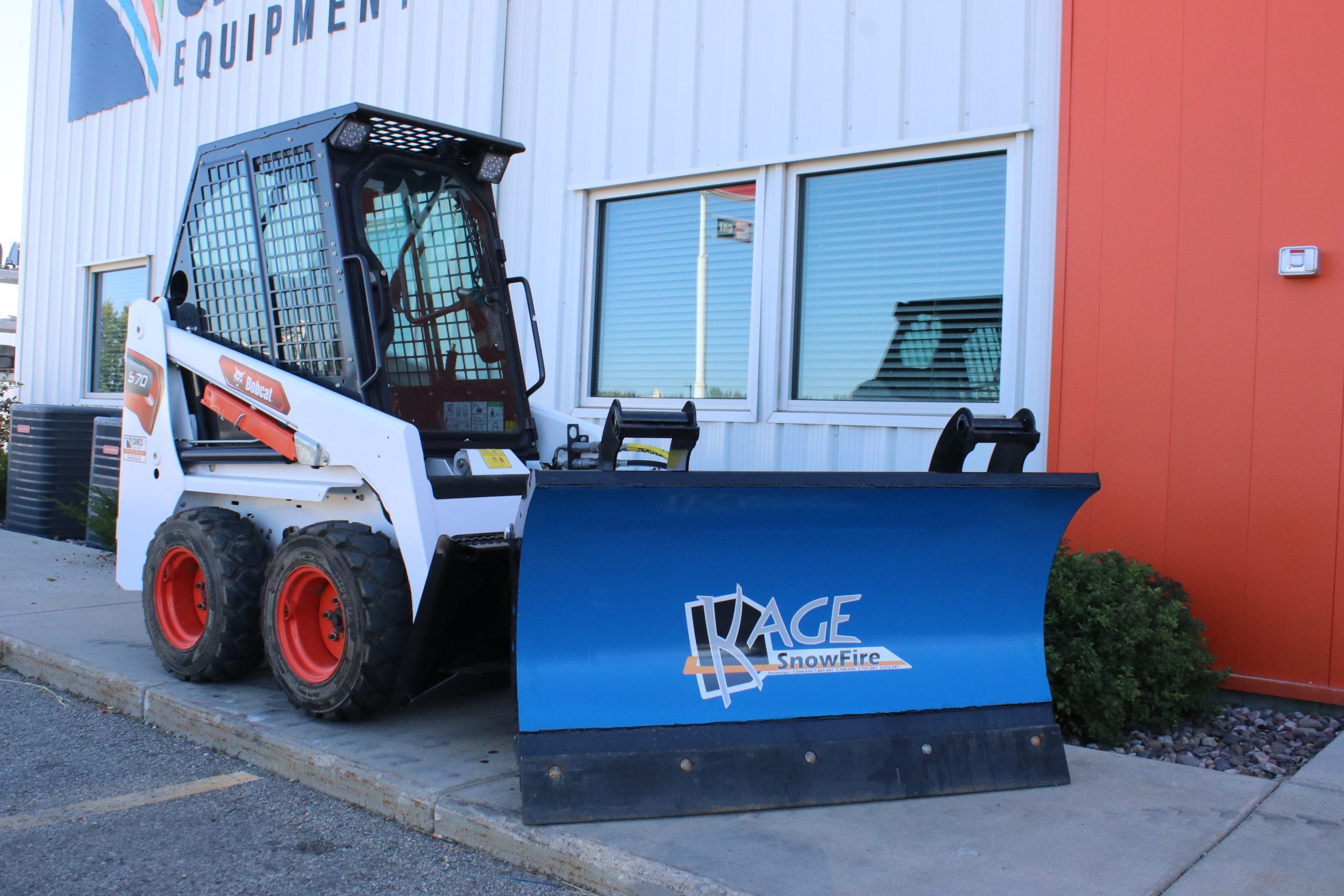

- The Blade
- The Box
- Accessories
- Specifications
- Skid Steers
- Compact Loader
- Compact Tractor
- Mid-Size Tractor

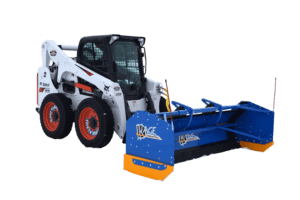

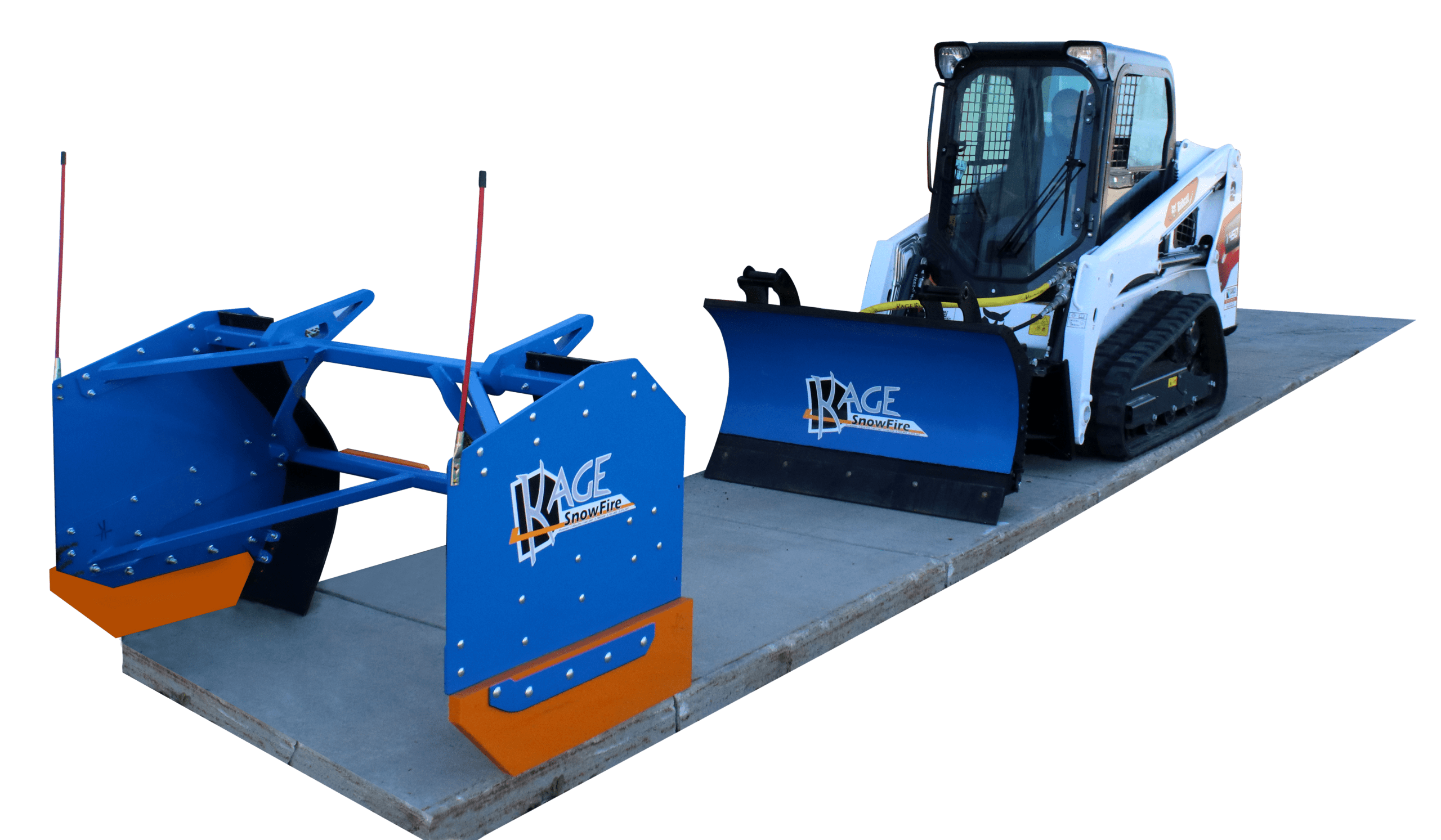

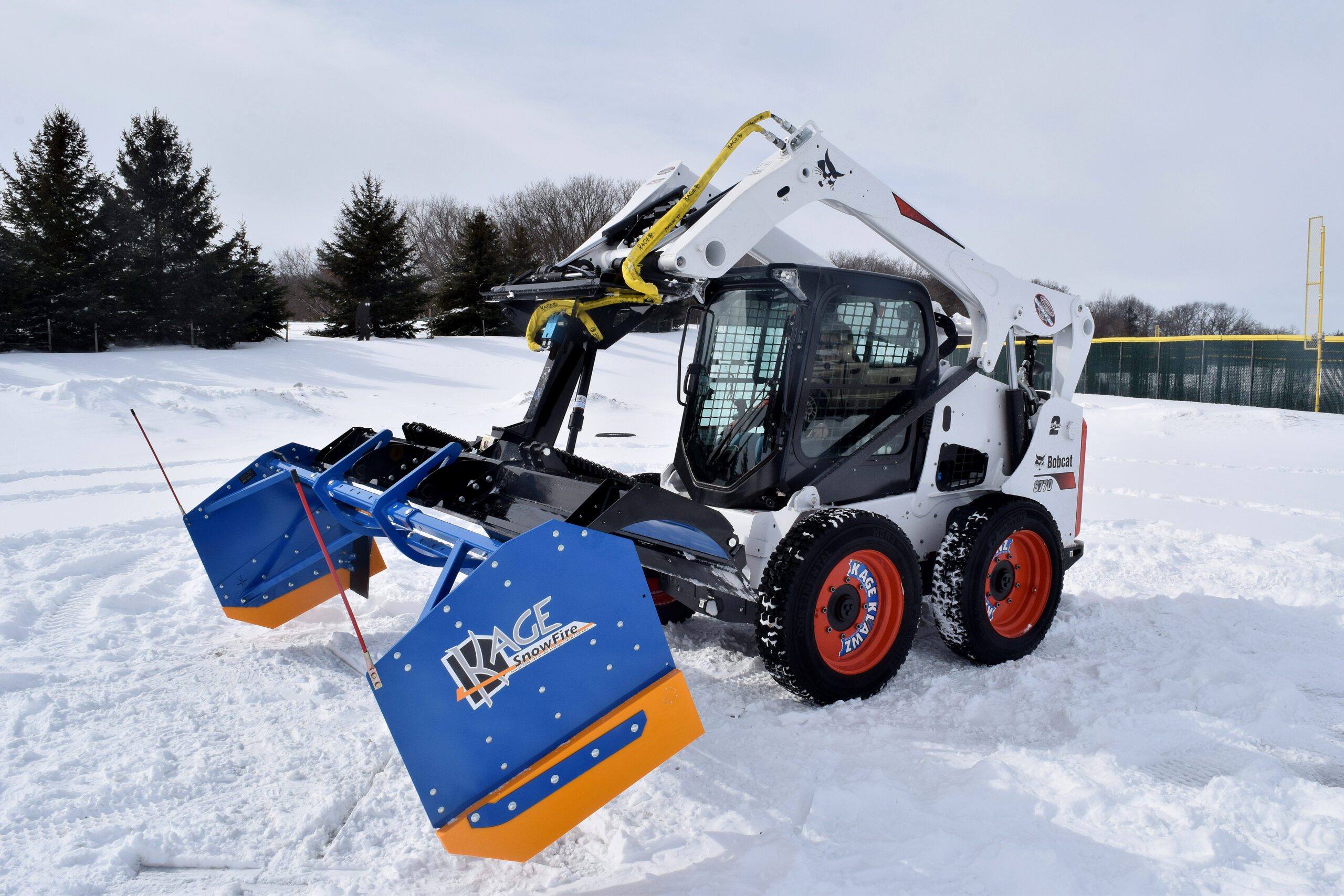

Seamless Transition from
Snow Plow to Box Plow

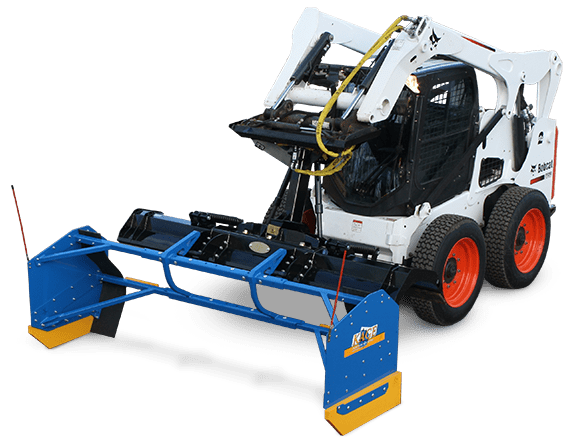

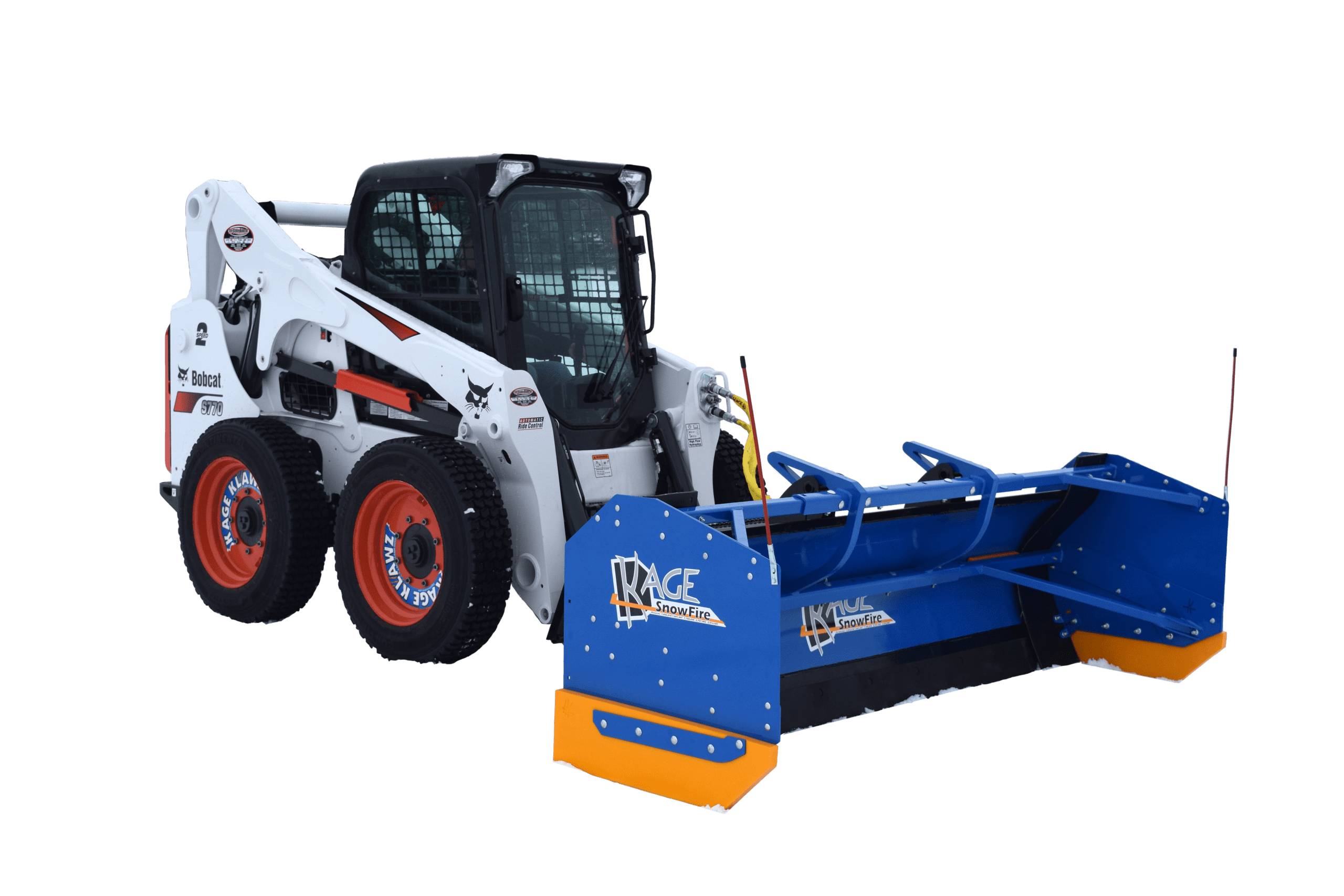

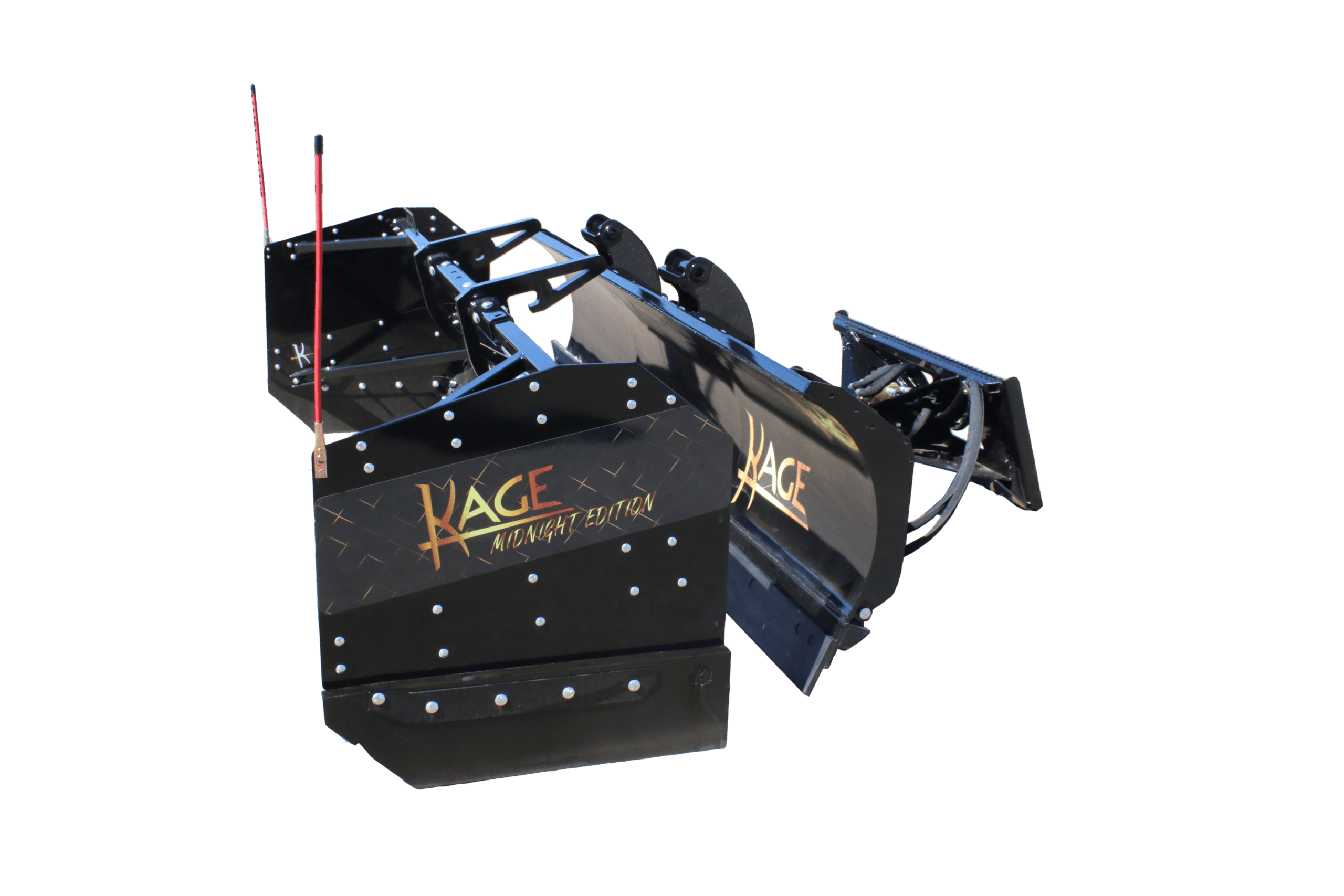

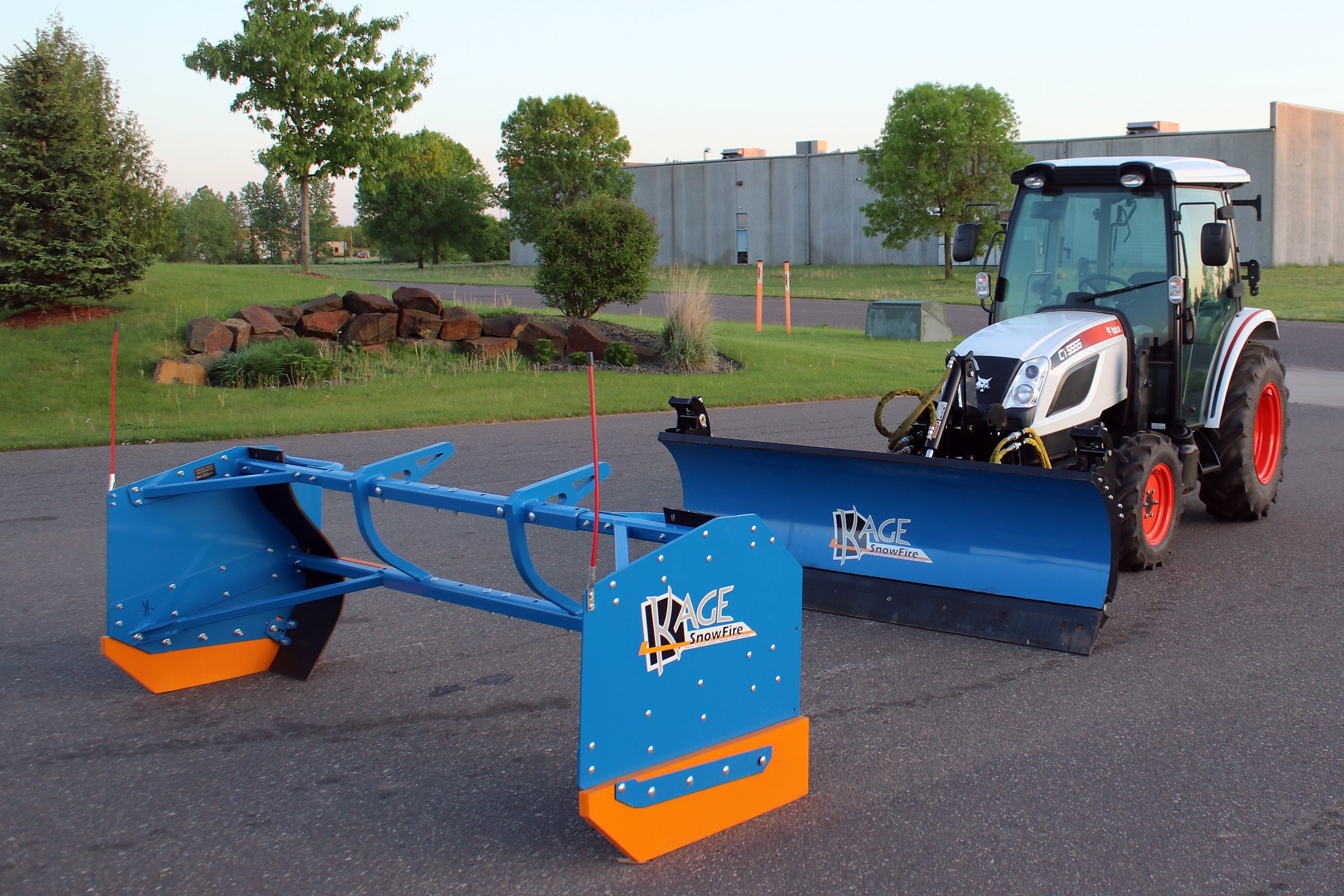

The SNOWKAGE box hooks onto a skid steer snow plow to instantly create a revolutionary containment system. This is done in seconds without leaving the cab – no pins, bolts, or hinges. The KAGE system takes the advantages of a snow plow and a pusher box and combines them into one fast and seamless operation. Operators can windrow or backdrag with the plow normally, then grab the SNOWKAGE box to push out their piles or windrows. Then they can go back to plowing – without leaving the cab. The KAGE system reduces plowing frustrations and hassles. The KAGE system reduces plowing times by 25-50%.

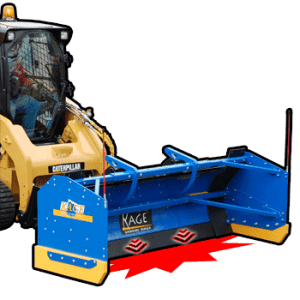

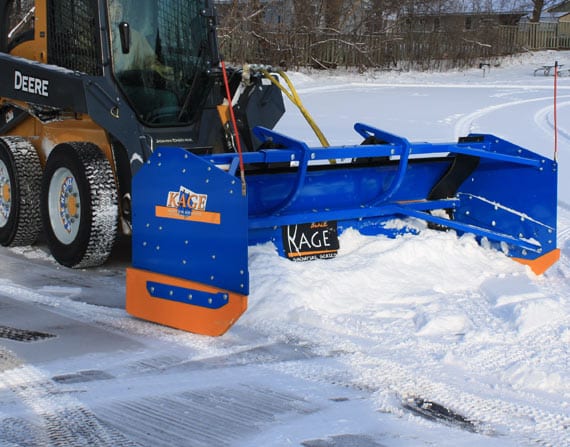

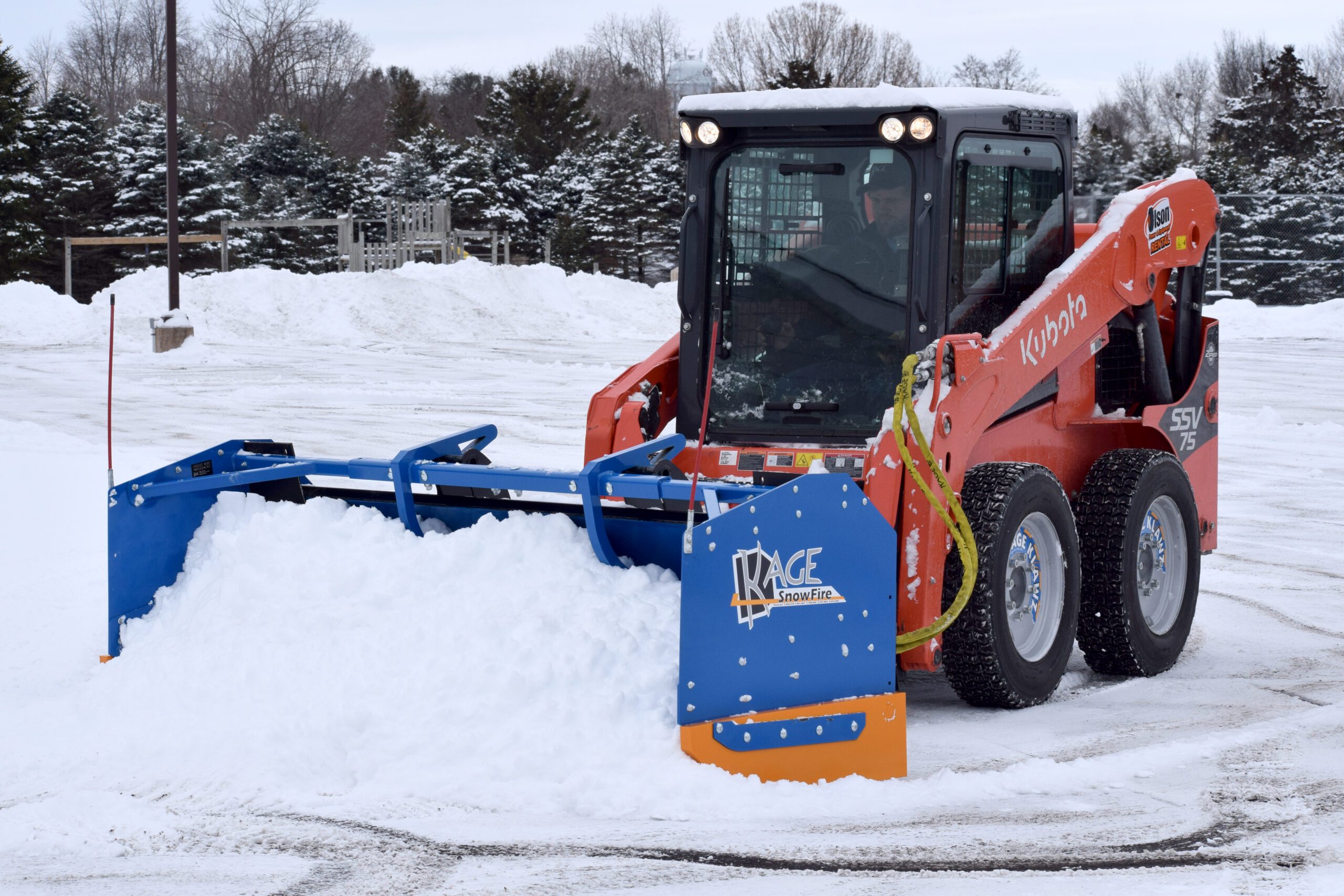

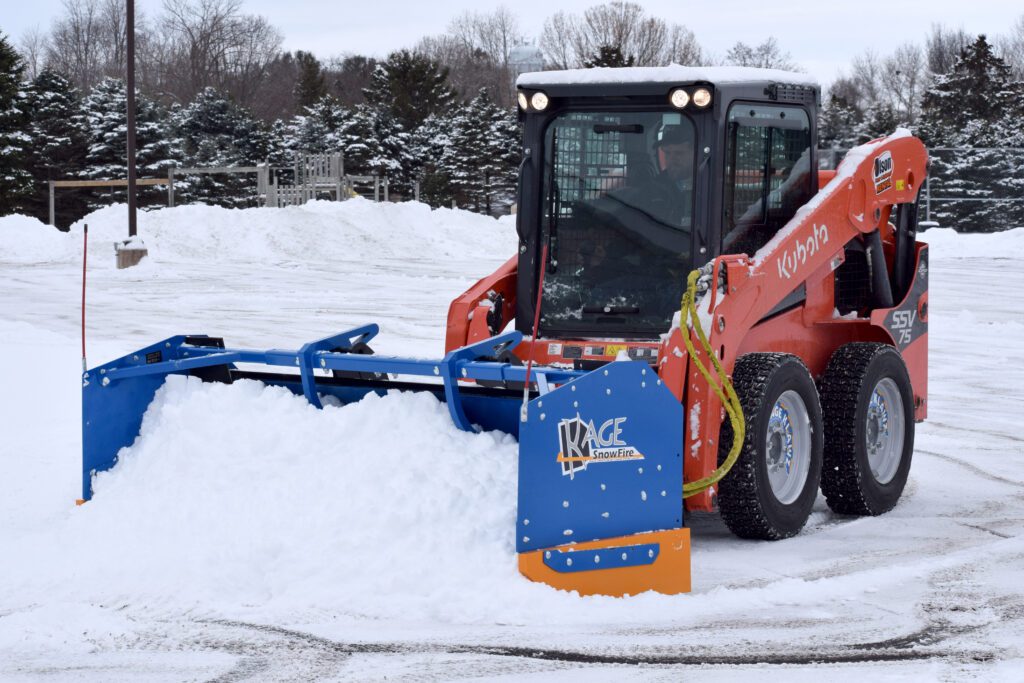

Snow Scraping

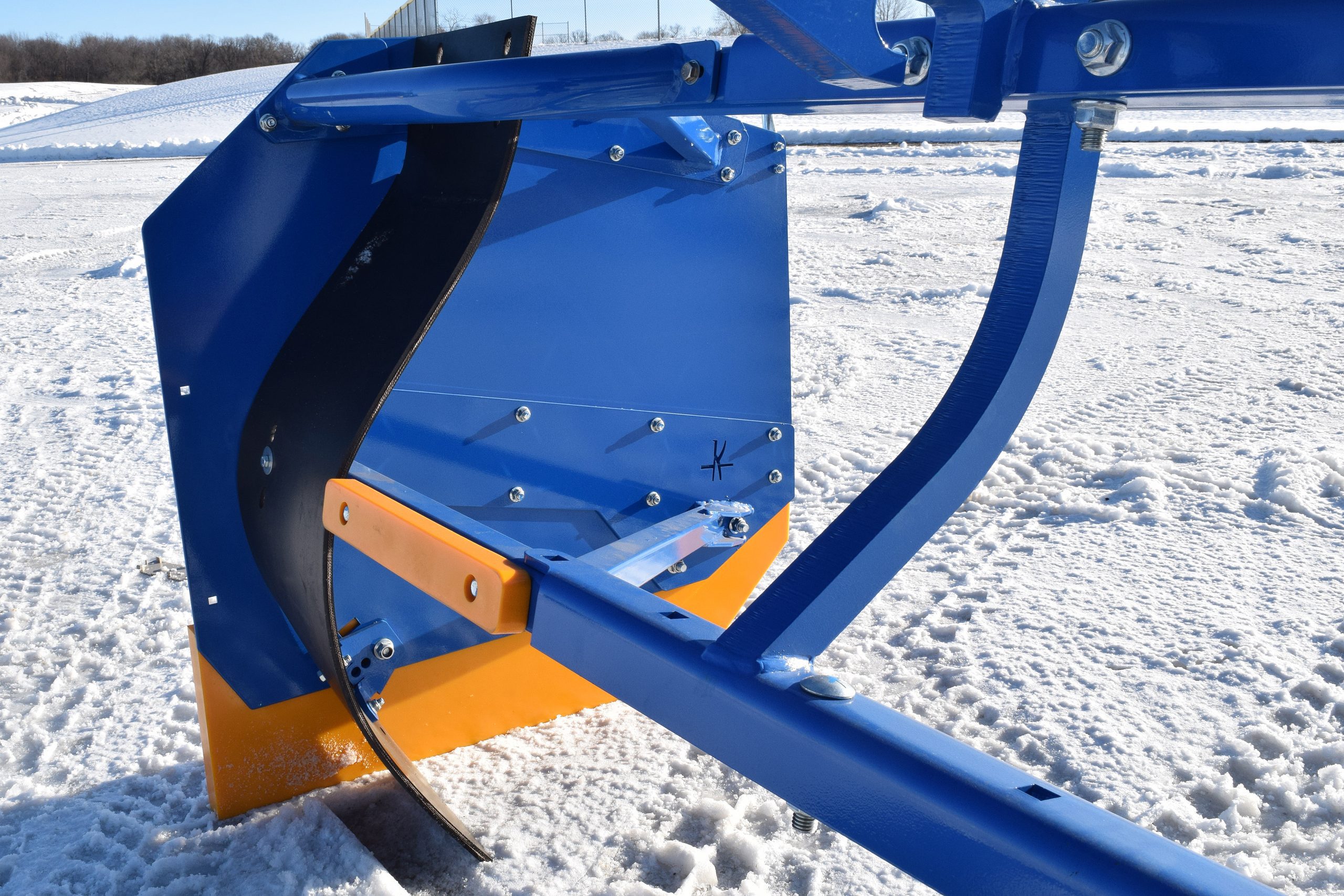

With the KAGE box attached, the trip edge mechanism of the plow still operates normally. Not only does the trip edge work normally, but so does the cutting edge! The scraping ability of the plow is not hindered by the ‘shoes’ of the SNOWKAGE. This means that you are always scraping down to asphalt in one pass.

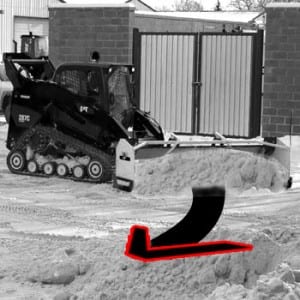

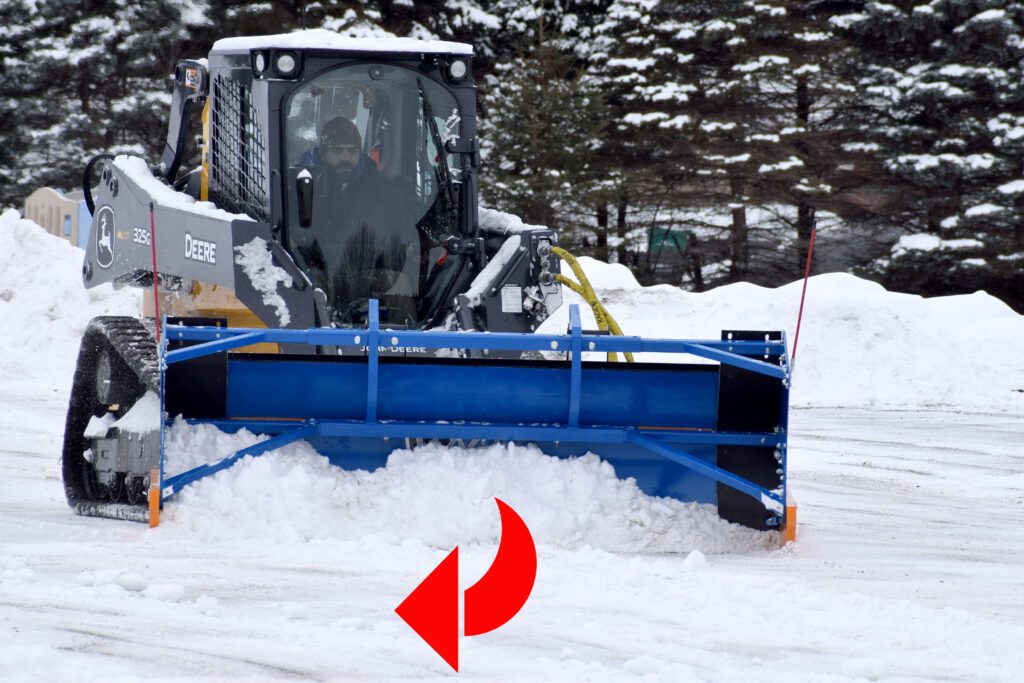

Snowplow Angle Function
Use the angle function of the plow while you are pushing. This means that you have a huge advantage over fixed snow pushers in that you can maneuver the load around turns without losing half of it!

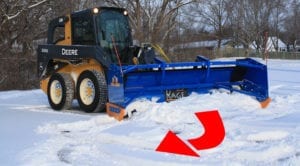

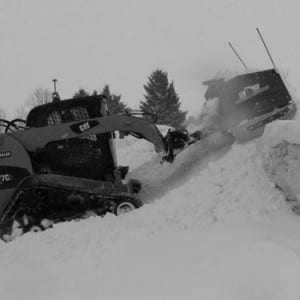

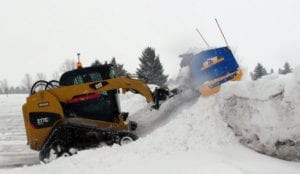

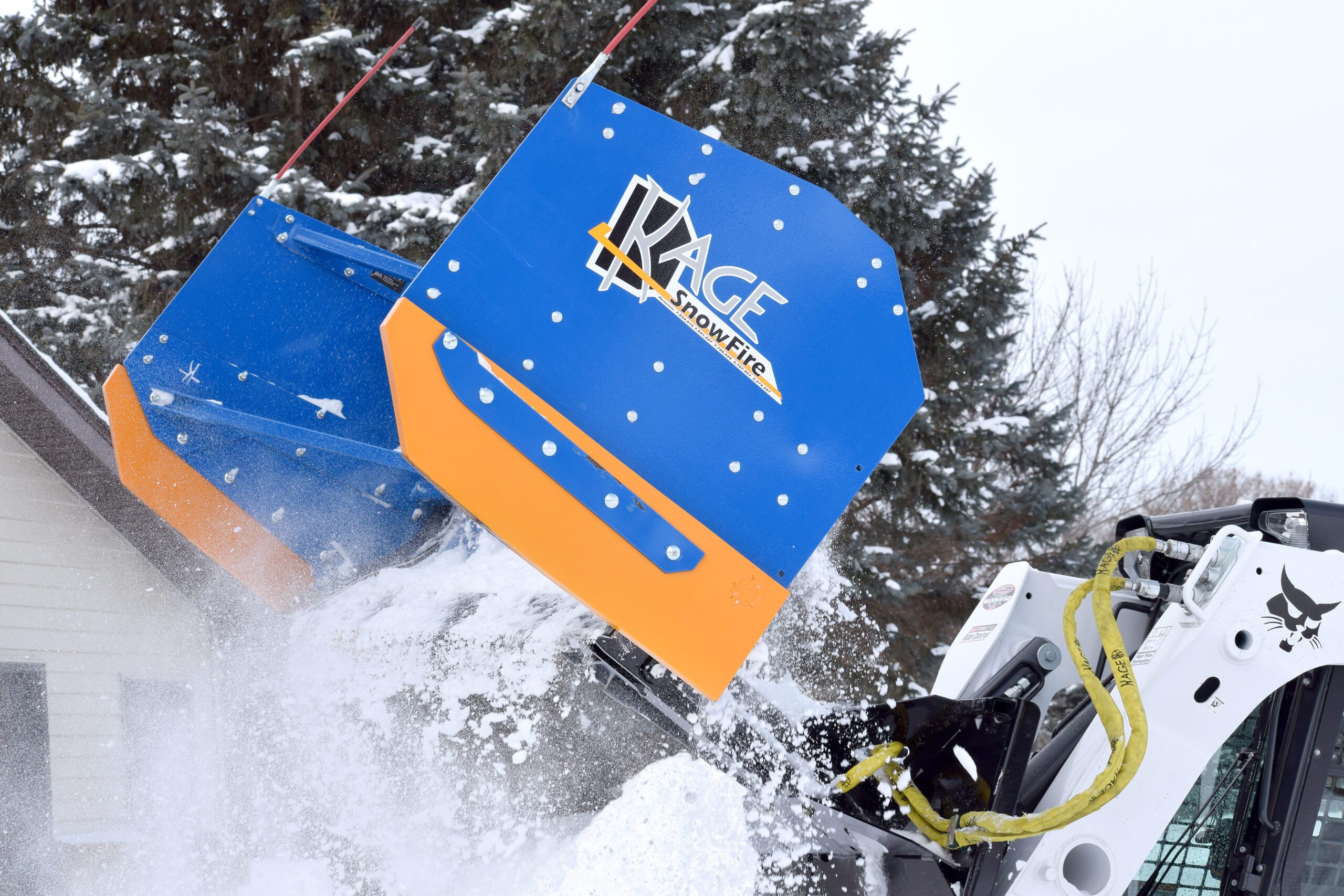

Snow Stacking
The KAGE system is great for cleanup operations, as well as break-out during a heavy snow fall. The applications for the KAGE system combined with the skid steer versatility are virtually endless. In contrast, fixed snow pushers reduce skid steer efficiency and versatility. The normally wide range of sites that skid steers can be used at is greatly diminished, and little things like cleanup along curbs becomes a chore. When KAGE box is dropped off, there is no change to the performance of the snow plow. Can it stack snow? Why yes, of course. In fact it will stack higher and faster than a pusher or bucket because you have more reach and don’t have to ‘dump’!

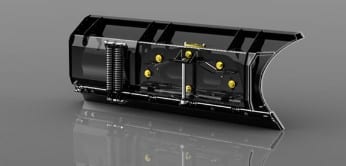

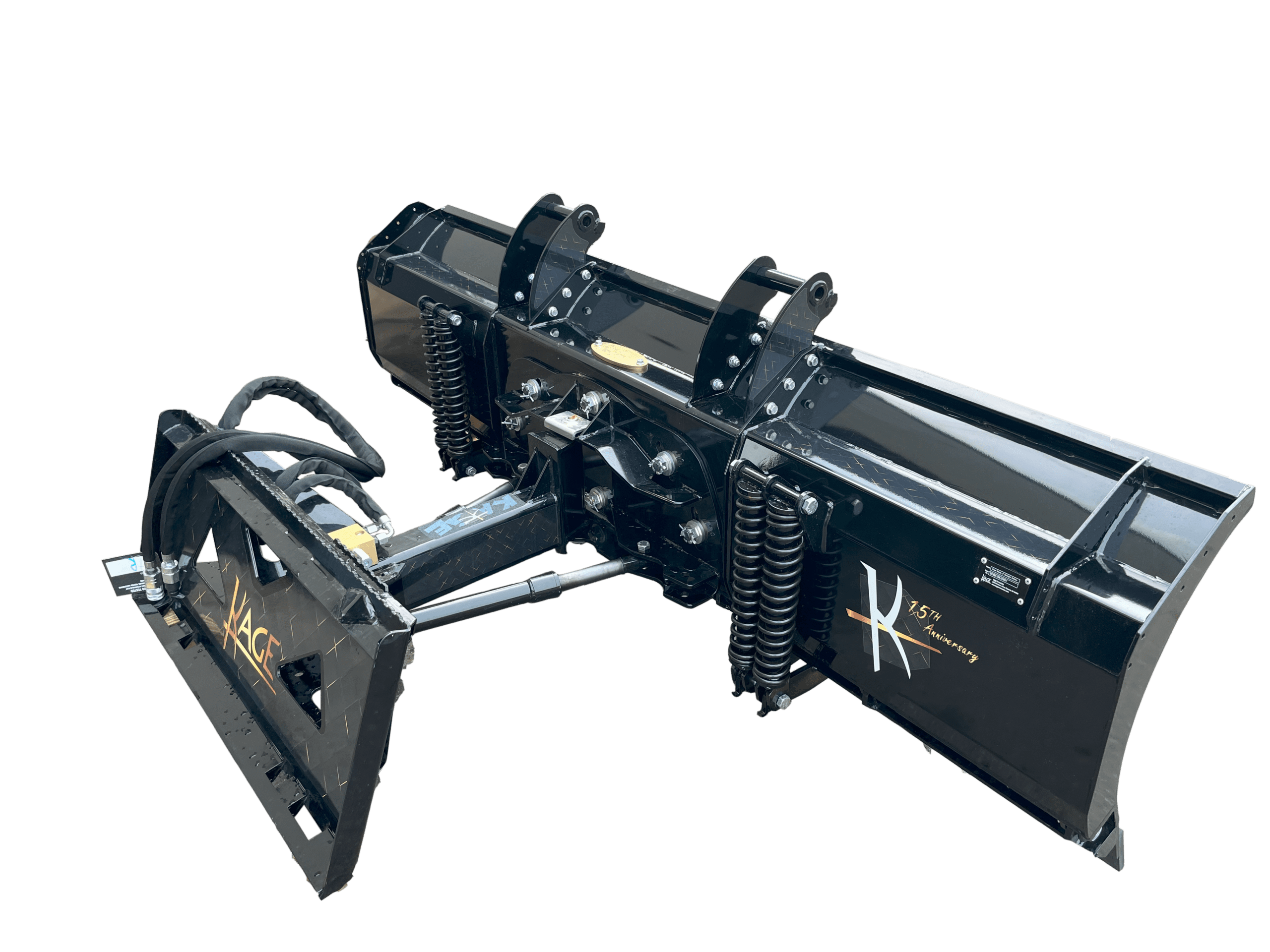

Tri-Formed Box For Strength
The KAGE Moldboard has a plow structure like no other in its class. The full length Tri-Formed Box structure gives it the most torque resistance and rigidity. Designs like this have been used in the highway plows for years. We take skid steer plowing seriously. Even the moldboard sheet itself is no run-of-the-mill mild steel. No this is 10ga GRADE 50, which among other things has a higher tensile strength, meaning it is harder to dent and tear, prolonging the life of the finish and plow itself.

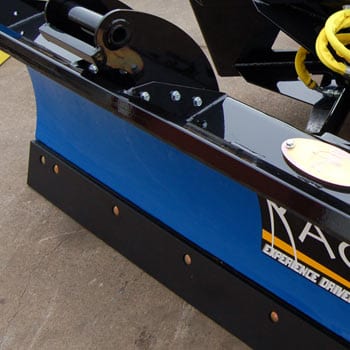

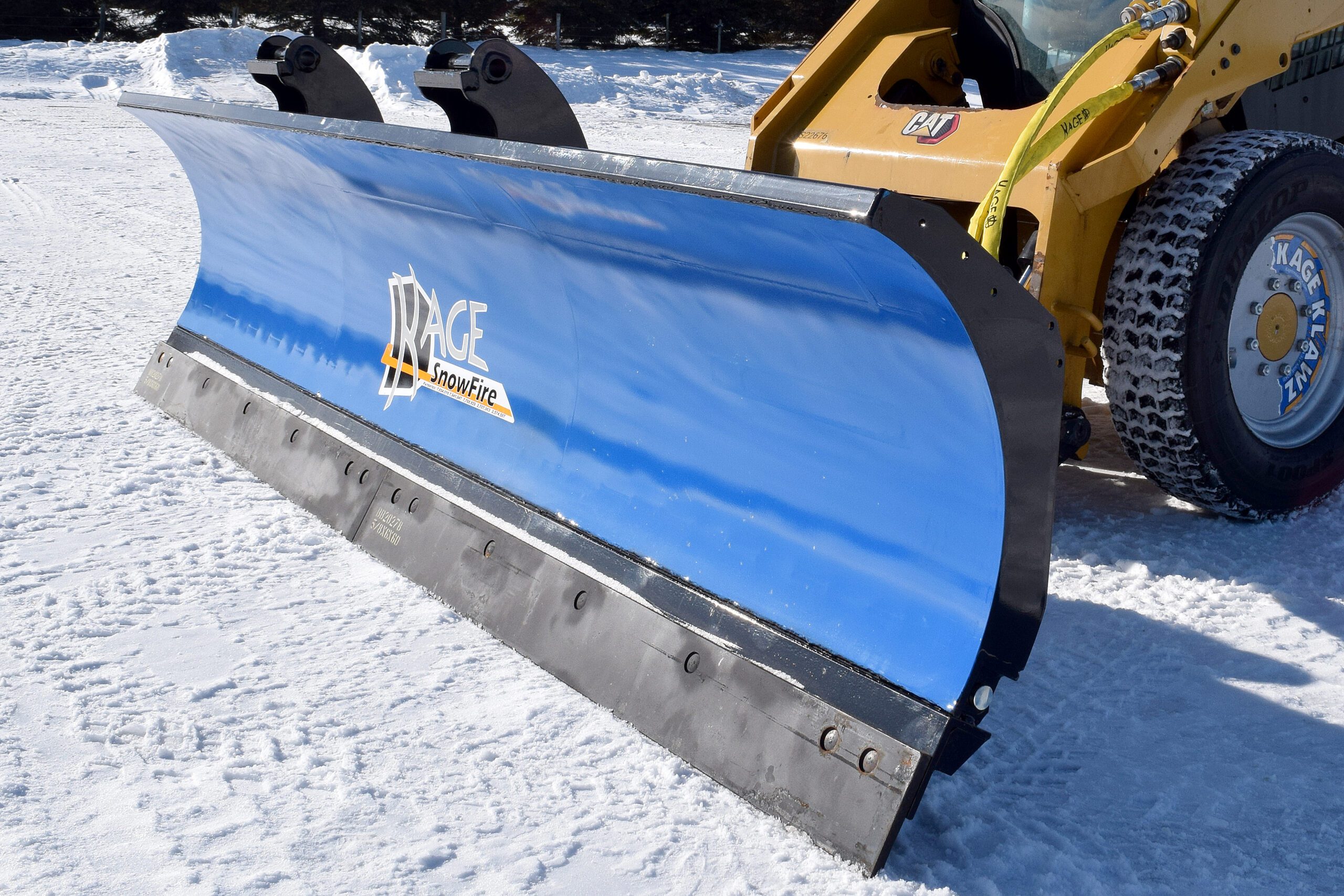

Heavy Duty Snow Plow Powder Coating
Powder Coated Snow Plow Blade Baked on powder coat and primer at 400+ degrees safeguards all of the steel components, and keeps the Blade looking great for years. We don’t like the look of rust streaks or deteriorating pockets of corrosion, and we guess neither do you, so we eliminate all of that through a proprietary method of applying seam sealer to all un-welded joints prior to the finish getting baked on. This substantially increases the life of the entire finish and overall long lasting quality appearance. Not to mention our two-tone powder process that gives you the striking KAGE Blue and black combination, signifying Lasting KAGE Quality.

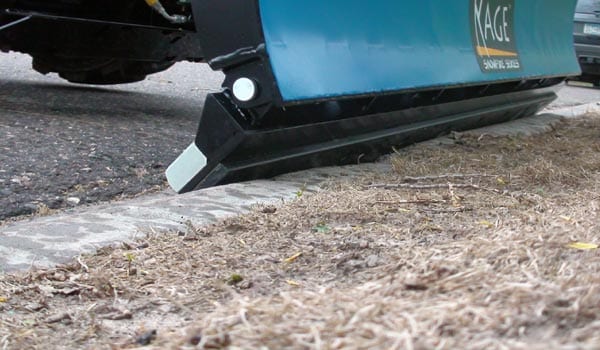

9″ Plow Blade Trip Edge
The Blade features a tall, 9″ safety trip-edge standard. This prevents accidental damage when encountering hidden obstacles by tripping back 68 degrees. Powered by four compression style return springs and pivoting on 7 total 1 inch trip pins, it trips when you need it, and stays put when you don’t.

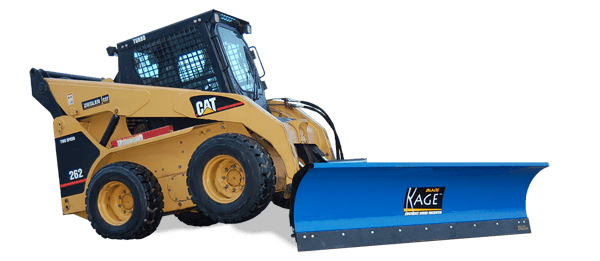

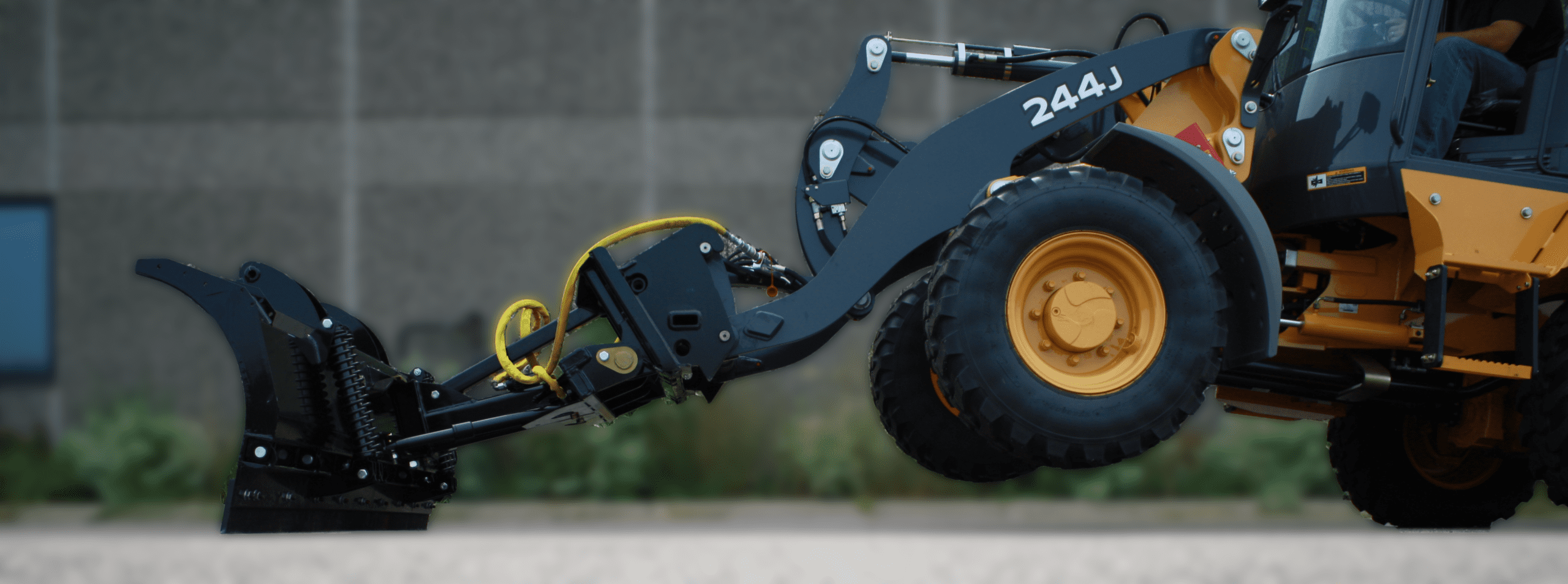

Blade Down Pressure
Snow Plow Down PressureDown pressure? Bring it on! Trip edges like this are meant to take the abuse so common to skid steer plowing.

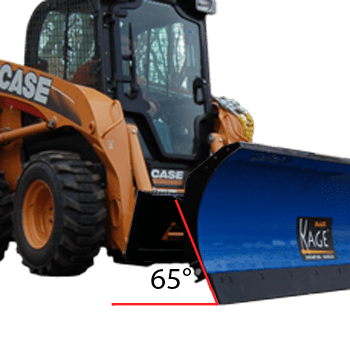

Aggressive Plow Angle

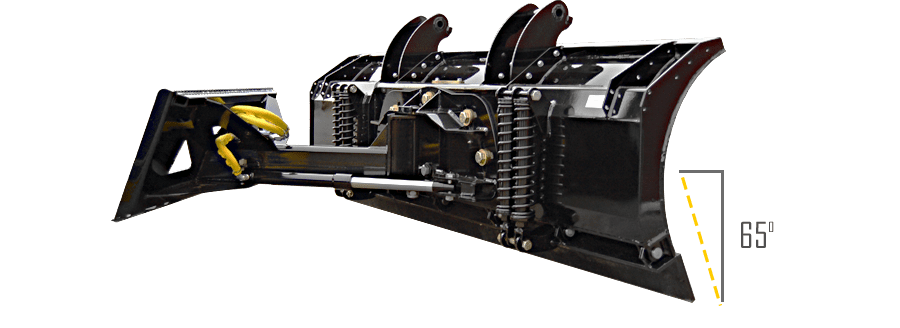

The Attack Angle is an aggressive 65 degrees so that it scrapes cleanly – forward and backwards. Mounted onto the trip edge is a High Carbon steel cutting edge, 6 inches tall, 5/8 inches thick.

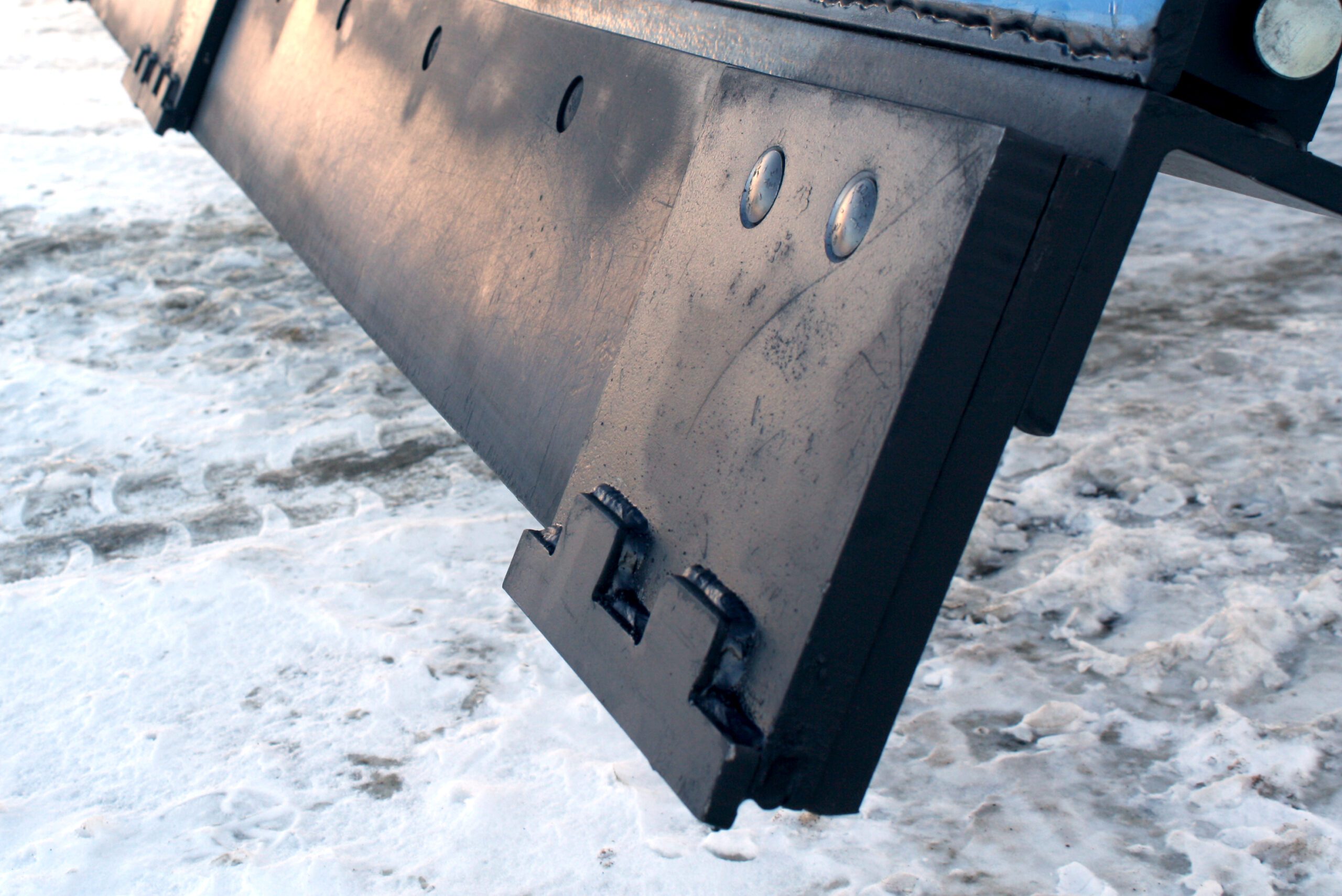

Replaceable Plow Cutting Edge
Our cutting edges are also a result of the highway department standards, and will fit up with any ‘standard highway punch’ design, available almost anywhere. No-one wants more downtime, so just replace the edge as needed – no need to move, rotate, flip or flop!

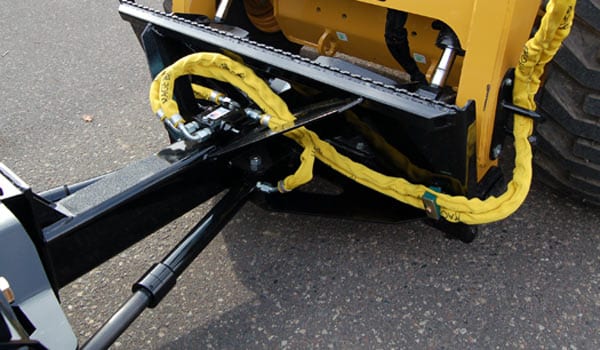

Hydraulics System

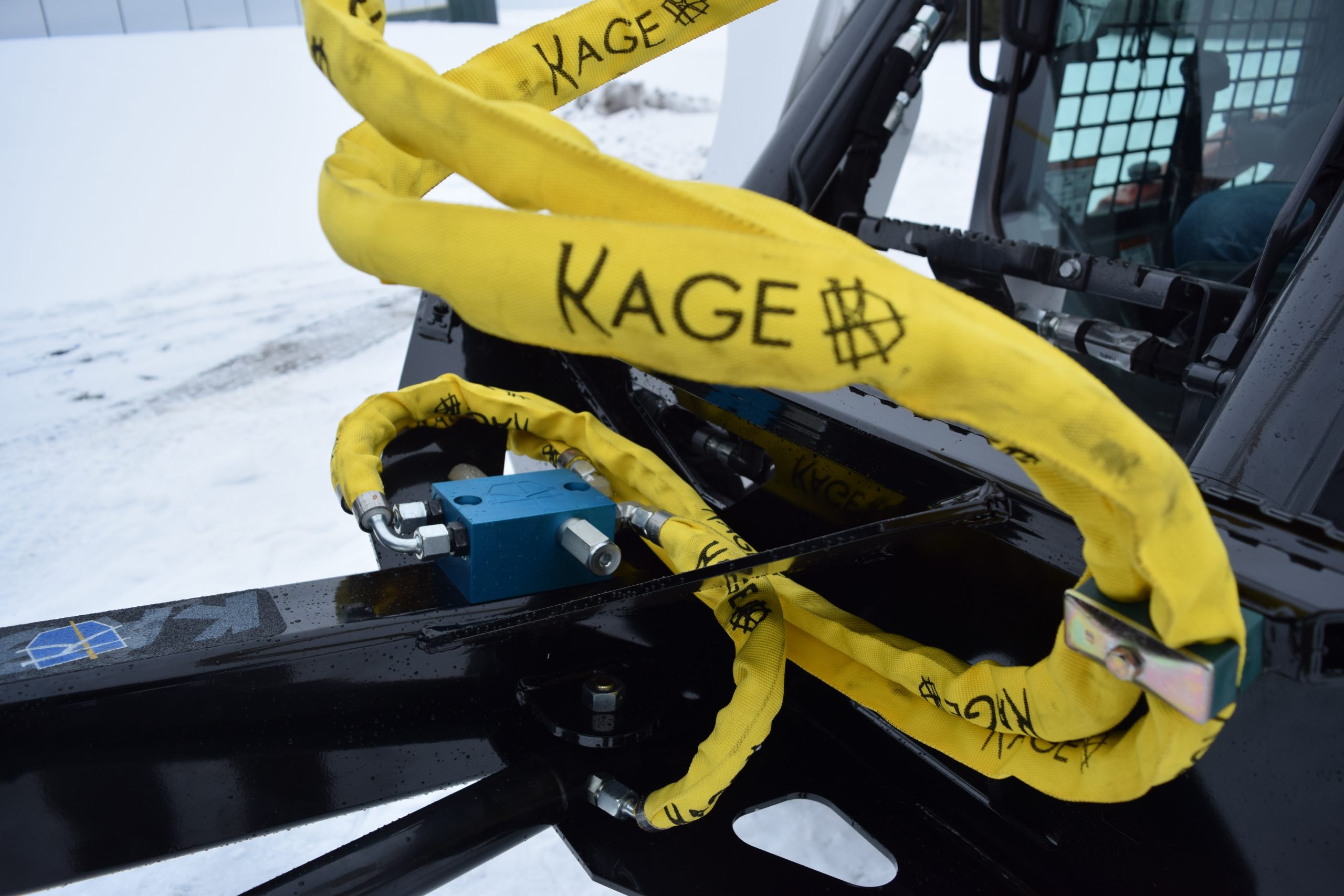

Protective Sleeves & Advanced Couplers
First, we put protective sleeves on all of the hoses; standard. Next we include a Stucchi APM Series Male and Female Coupling that will connect by hand with residual pressure of 300 bar or 2900 psi locked in the hydraulic circuit. It will connect with residual pressure without releasing any fluid into the environment. The mating circuit will need to be without residual pressure. Mobile equipment & attachment tools where exposure to the sun,or temperature change causes pressure to develop due to thermal expansion of trapped fluid. Any application where static pressure can get locked into the system. Finally, this system is completed with fluid restrictors, an adjustable hose-placement tie-down block and two Nitro Rod plow cylinders. This robust system complements the rugged features and operation of this system in any environment old man winter can produce.

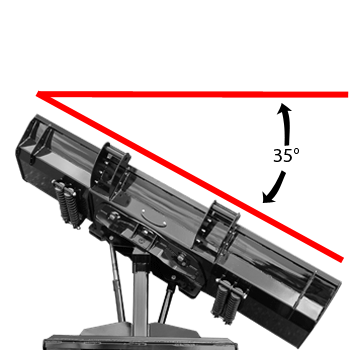

Severe Plowing Angle
Angle plowing with a skid steer at low speed? Absolutely! No question that this is efficient, and it’s made even better with the severe 35 degree max angle that the plow can achieve. This is more productive and efficient than plowing with trucks in many situations!

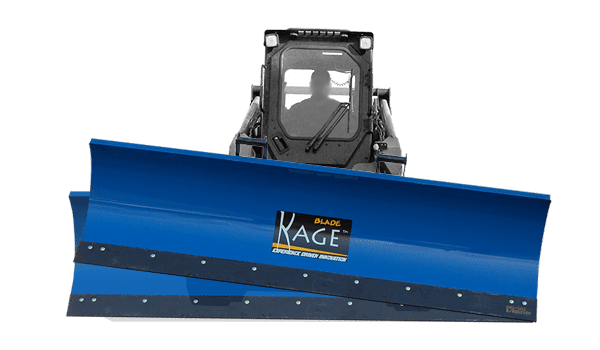

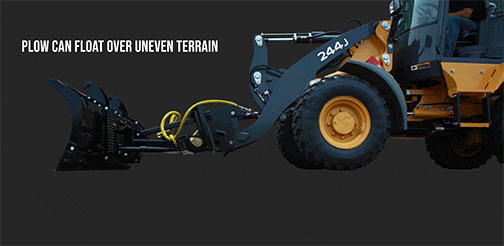

Snow Plow Blade Oscillation
Well the next thing is oscillation, this prevents situations when your blade doesn’t stay flat on the plowing surface, whether due to uneven pavement, or improper boom adjustment. The KAGE Blade always stays flat on the plowing surface, from tip to tip whether fully angled or straight. Even with down pressure applied! Simple for operators, just drop and go. You don’t have to worry about one side digging in as you angle or drive over bumps.

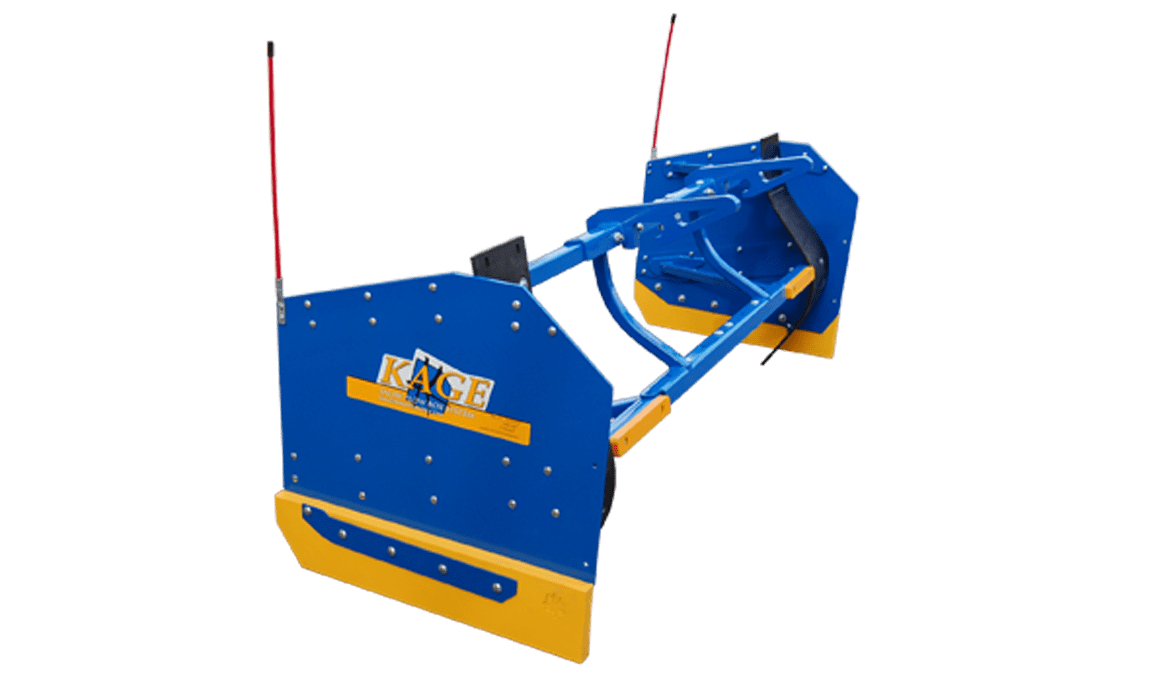

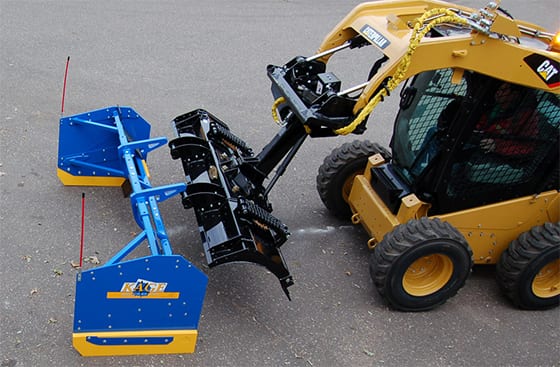

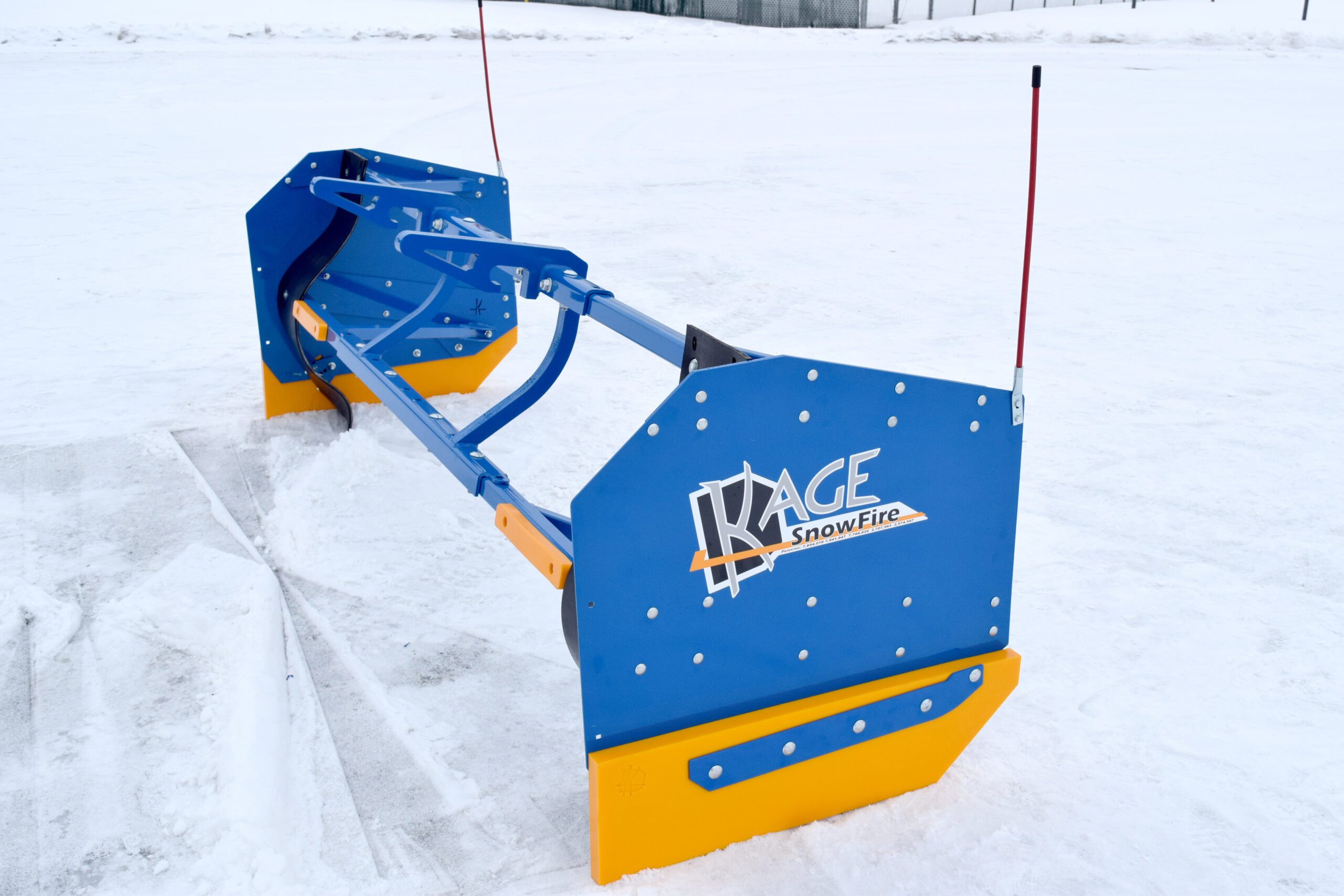

SNOWKAGE Transforms Simple Blade Into Box Plow
So simple, yet so genius. The simple design of the SNOWKAGE gives it a bullet proof structure that befuddles the destructive tendencies so many snow removal operations can produce.

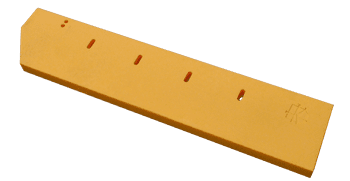

Flexible Polyurethane Skids
Polyurethane skids are flexible, rather than rigid steel shoes. Finally, something that doesn’t get bent up! They also feature 4 slots in the rear that allow the skid to self-adjust upwards as the cutting edge of the plow becomes worn. This ensures that the plow is always scraping and cleaning like it should.
Low Maintenance
Every detail of the SNOWKAGE flows right into the overall theme of low maintenance and simplicity. The polyurethane bumpers protect the finish, while the pre-punched 10 inch wide snow catches prevent spillage while pushing.

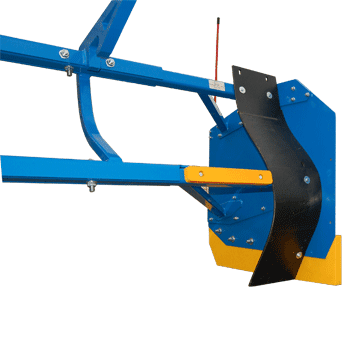

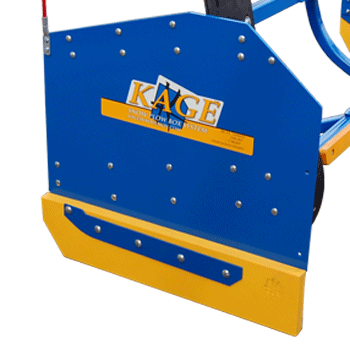

Pusher Replaceable Side Panels
Replaceable side panels are standard and just bolt on easily in case of replacement.

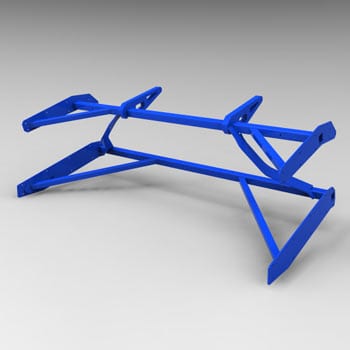

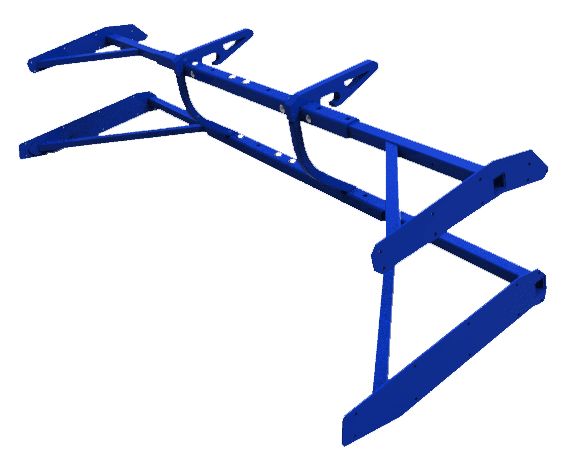

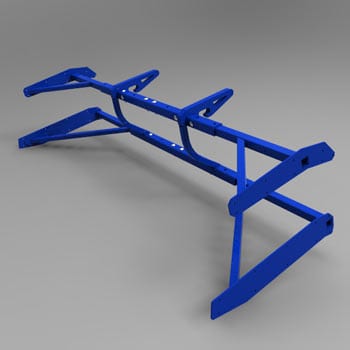

SNOWKAGE Frames
SNOWKAGE Frames: 6ft solid weldment, 8ft – 10ft adjustable.
SK72 Frame – 6ft solid weldment | SK2011 Frame – 8-10ft adjustable

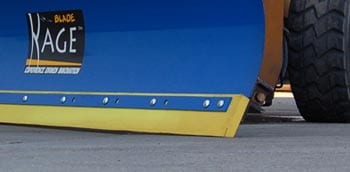

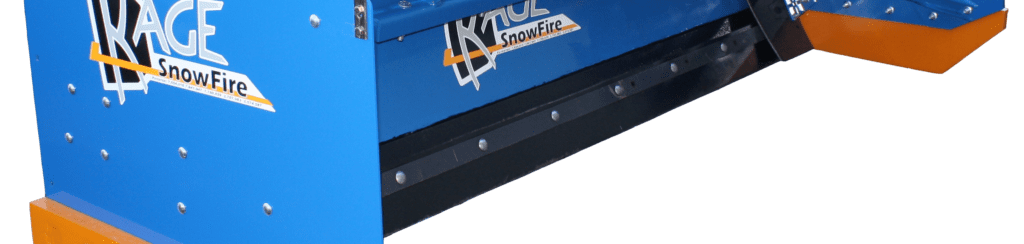

Polyurethane Cutting Edge
The Polyurethane Cutting Edge is useful when plowing delicate surfaces such as decorative concrete and pavers, or sealcoating. In our experience, this proprietary blend of polyurethanes outlasts rubber, and even steel in some cases without damaging the plowing surface. The blade is 1 ½ inches thick, pre-drilled and the optional kit comes with a steel support strip and extra long carriage bolts for easy installation.

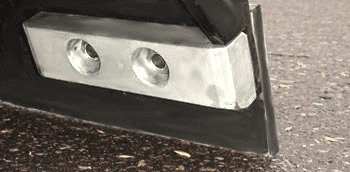

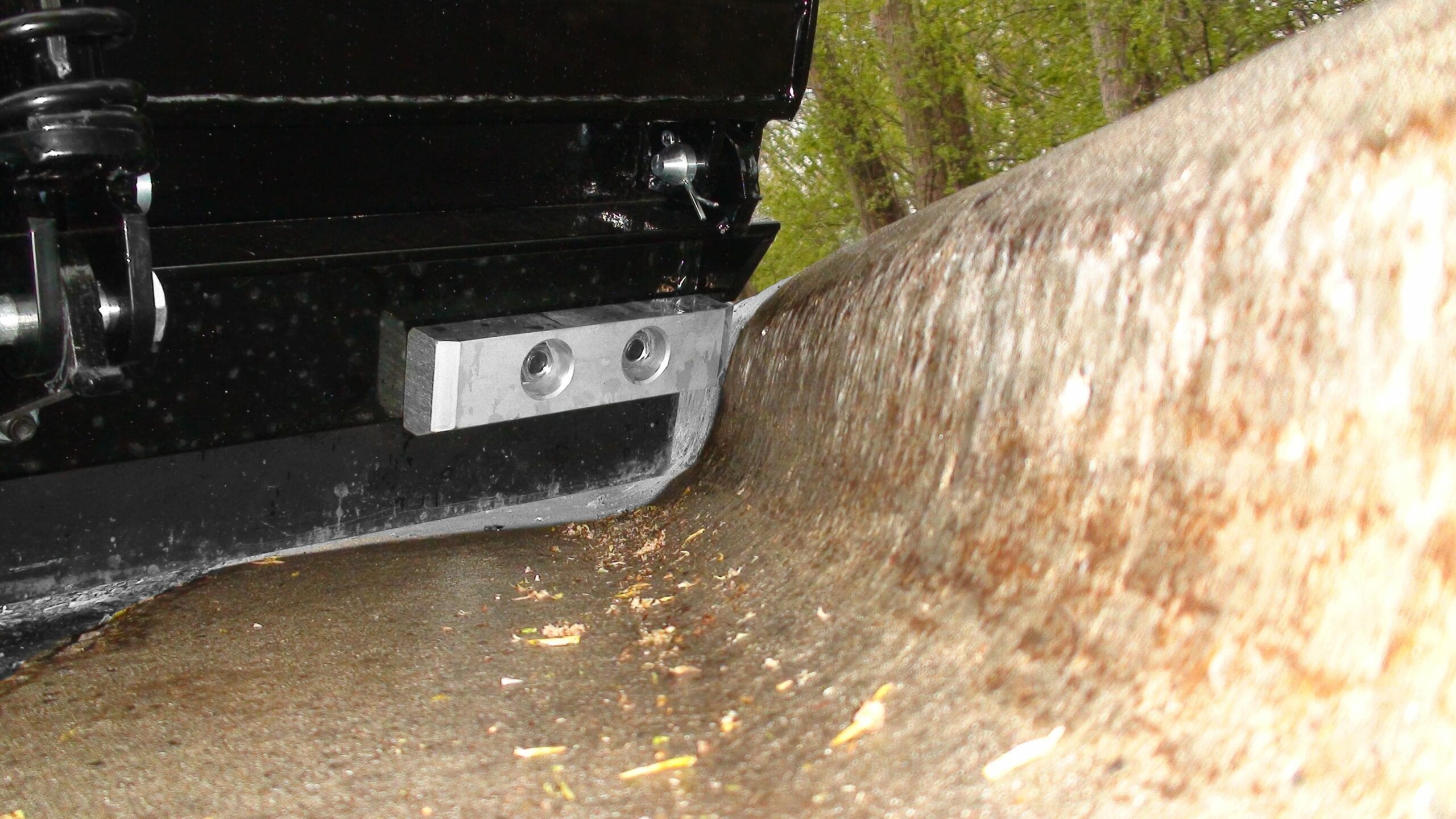

Curb-Guard
Optional curb guard kit helps reduce wear to the trip edge. Clean curb lines are crucial, but don’t wear out your plow in the process! The curb guards are sold as a kit, and they are able to transpose so that you get double the wear.

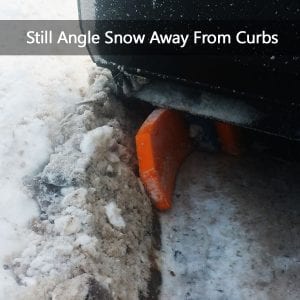

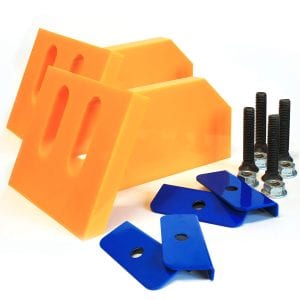

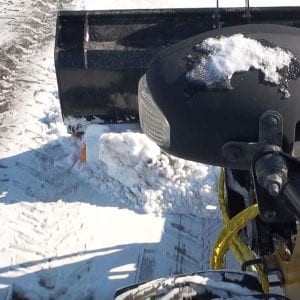

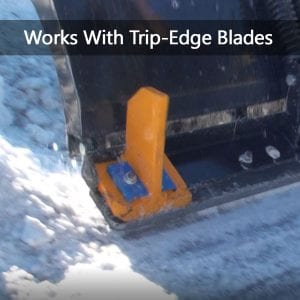

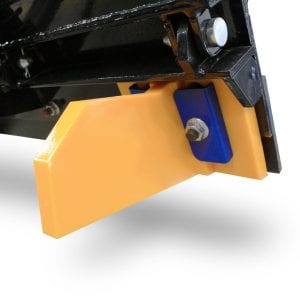

Back Drag Kit
Do you have sites where you’re regularly back dragging snow? Do you want to dramatically increase the efficiency of your snow plow when back dragging snow? The Back Drag Kit manufactured exclusively by KAGE Innovation is designed to fit any 6″ to 8″ snow plow cutting edge machine with a highway punch bolt hole pattern. It also works great with trip-edge plows and when you’re angling snow away from curbs, the flexible design of the Back Drag Kit can take the abuse.
The entire kit weighs 10 pounds and it’s built from the same uniquely blended polyurethane material used in our Poly Cutting Edges and Poly Skids. It’s far more durable and will last considerably longer than rubber. The kit comes with 2 Poly Back Drag Catches, 4 Back Catch Backing Plates for secure mounting, 4 High Strength Steel Bolts and 4 Flange Locknuts.

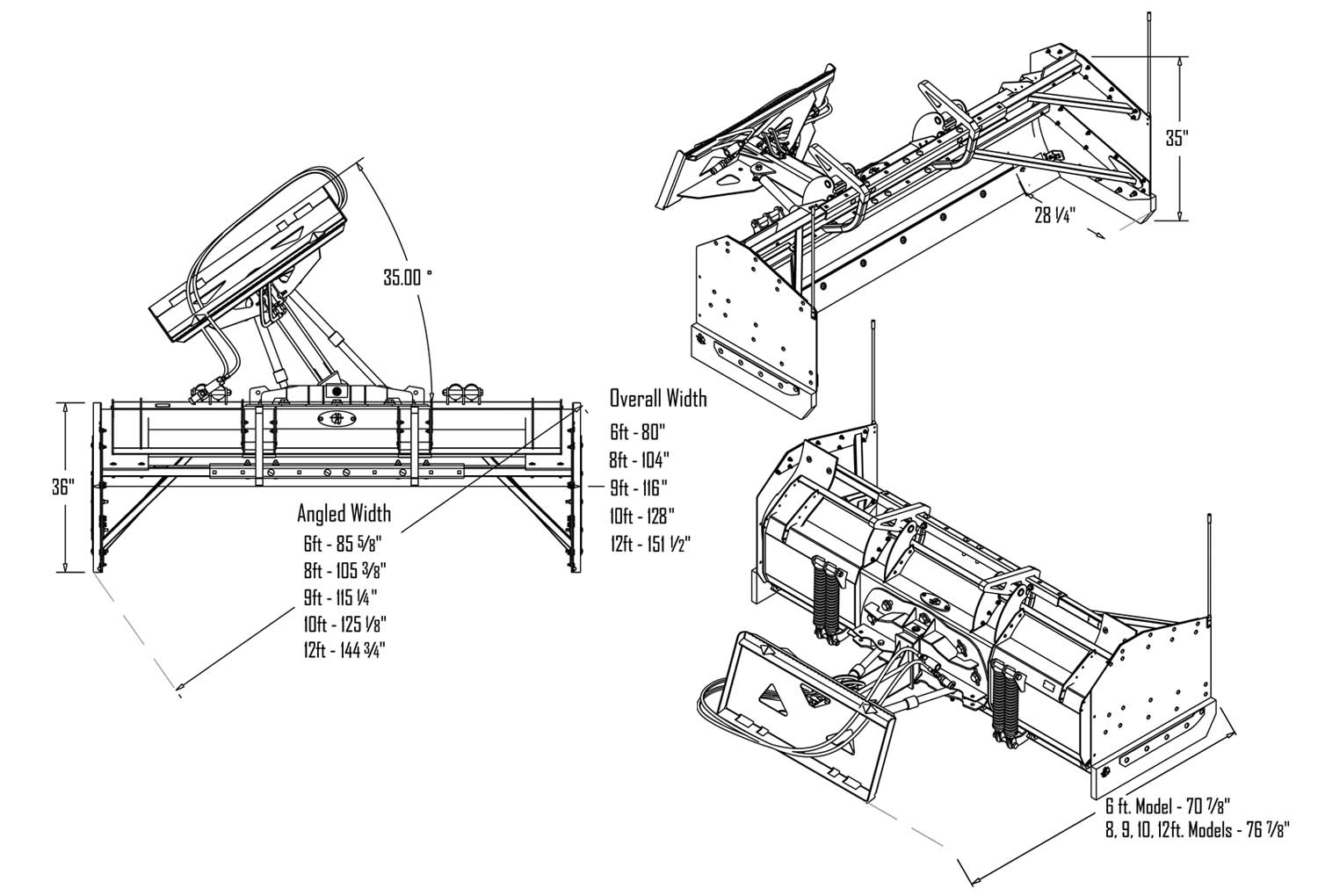

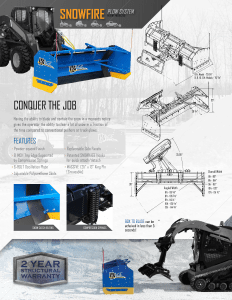

SPECIFICATIONS
SNOWBLADE
SB72
For Machines Starting at 5,000 lbs | SB72 |
---|---|
Blade Width | 6′ |
Blade Width at Full Angle | 59″ |
Oscillation (Degrees/Inches) Each End | 6°/7.5″ |
Moldboard Radius | 15.5″ |
Moldboard Gauge / Steel Grade | 10 ga. / Grade 50 |
Trip Springs | 4 |
Cutting Edge High Carbon | 5/8″ x 6 |
Cross-Over Relief Valve | Standard |
Pivot Frame Length | (25″) |
Machine Size Recommended | 5,000 lbs+ |
Weight | 906 lbs |
Cylinders (2) | Nitro 1.5″ |
Blade Height | 31.125″ |
SB96
For Machines Starting at 5,000 lbs | SB96 |
---|---|
Blade Width | 8′ |
Blade Width at Full Angle | 79″ |
Oscillation (Degrees/Inches) Each End | 6°/10″ |
Moldboard Radius | 15.5″ |
Moldboard Gauge / Steel Grade | 10 ga. / Grade 50 |
Trip Springs | 4 |
Cutting Edge High Carbon | 5/8″ x 6 |
Cross-Over Relief Valve | Standard |
Pivot Frame Length | (31″) |
Machine Size Recommended | 6,000 lbs+ |
Weight | 1031 lbs |
Cylinders (2) | Nitro 1.5″ |
Blade Height | 31.125″ |
SB108
For Machines Starting at 5,000 | SB108 |
---|---|
Blade Width | 9′ |
Blade Width at Full Angle | 88.5″ |
Oscillation (Degrees/Inches) Each End | 6°/11.25″ |
Moldboard Radius | 15.5″ |
Moldboard Gauge / Steel Grade | 10 ga. / Grade 50 |
Trip Springs | 4 |
Cutting Edge High Carbon | 5/8″ x 6 |
Cross-Over Relief Valve | Standard |
Pivot Frame Length | (31″) |
Machine Size Recommended | 6,500 lbs+ |
Weight | 1087 lbs |
Cylinders (2) | Nitro 1.5″ |
Blade Height | 31.125″ |
SB120
For Machines Starting at 5,000 lbs | SB120 |
---|---|
Blade Width | 10′ |
Blade Width at Full Angle | 98.25″ |
Oscillation (Degrees/Inches) Each End | 6°/12.5″ |
Moldboard Radius | 15.5″ |
Moldboard Gauge / Steel Grade | 10 ga. / Grade 50 |
Trip Springs | 4 |
Cutting Edge High Carbon | 5/8″ x 6 |
Cross-Over Relief Valve | Standard |
Pivot Frame Length | (31″) |
Machine Size Recommended | 7,000 lbs+ |
Weight | 1147 lbs |
Cylinders (2) | Nitro 1.5″ |
Blade Height | 31.125″ |
SB144
For Machines Starting at 5,000 lbs | SB144 |
---|---|
Blade Width | 12′ |
Blade Width at Full Angle | 119″ |
Oscillation (Degrees/Inches) Each End | 6°/15″ |
Moldboard Radius | 15.5″ |
Moldboard Gauge / Steel Grade | 10 ga. / Grade A36 |
Trip Springs | 8 |
Cutting Edge High Carbon | 5/8″ x 6 |
Cross-Over Relief Valve | Standard |
Pivot Frame Length | (31″) |
Machine Size Recommended | 8,500 lbs+ |
Weight | 1,541 lbs |
Cylinders (2) | Nitro 2″ |
Blade Height | 31.125″ |
SNOWKAGE
SK72
For Machines Starting at 5,000 lbs | SK72 |
---|---|
Overall Height | 40″ |
Overall Width | 80″ |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-steer Model Only) | 1.5″ |
Replaceable Poly Skids | 36″ x 9.75″ x 1.5″ |
Weight | 366 lbs |
Machine Size Recommended | 5,000 lbs+ |
Overall Width at 35 Degree Angle | 85.8″ |
Total Weight of Kage System (Blade+Box) | 1,272 lbs |
SK96
For Machines Starting at 5,000 lbs | SK96 |
---|---|
Overall Height | 40″ |
Overall Width | 104″ |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-steer Model Only) | 1.5″ |
Replaceable Poly Skids | 36″ x 9.75″ x 1.5″ |
Weight | 442 lbs |
Machine Size Recommended | 6,000 lbs+ |
Overall Width at 35 Degree Angle | 105.4″ |
Total Weight of Kage System (Blade+Box) | 1,473 lbs |
SK108
For Machines Starting at 5,000 lbs | SK108 |
---|---|
Overall Height | 40″ |
Overall Width | 116″ |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-steer Model Only) | 1.5″ |
Replaceable Poly Skids | 36″ x 9.75″ x 1.5″ |
Weight | 442 lbs |
Machine Size Recommended | 6,500 lbs+ |
Overall Width at 35 Degree Angle | 115.3″ |
Total Weight of Kage System (Blade+Box) | 1,529 lbs |
SK120
For Machines Starting at 5,000 lbs | SK120 |
---|---|
Overall Height | 40″ |
Overall Width | 128″ |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-steer Model Only) | 1.5″ |
Replaceable Poly Skids | 36″ x 9.75″ x 1.5″ |
Weight | 442 lbs |
Machine Size Recommended | 7,000 lbs+ |
Overall Width at 35 Degree Angle | 125.2″ |
Total Weight of Kage System (Blade+Box) | 1,589 lbs |
SK144
For Machines Starting at 5,000 lbs | SK144 |
---|---|
Overall Height | 40″ |
Overall Width | 150″ |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-steer Model Only) | 1.5″ |
Replaceable Poly Skids | 36″ x 9.75″ x 1.5″ |
Weight | 477 lbs |
Machine Size Recommended | 8,500 lbs+ |
Overall Width at 35 Degree Angle | 145″ |
Total Weight of Kage System (Blade+Box) | 1,983 lbs |

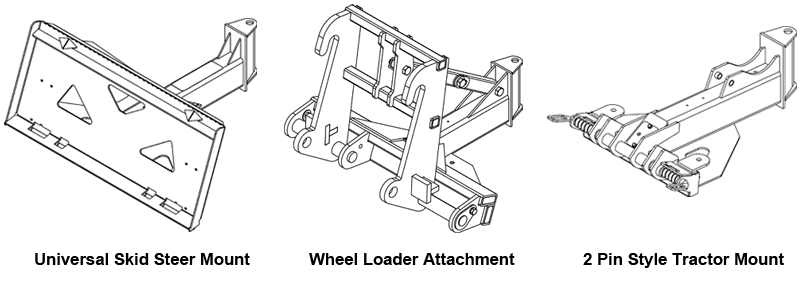

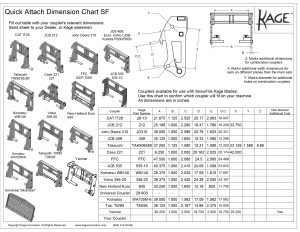

Available Quick Attaches

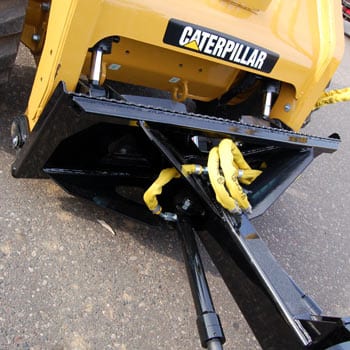

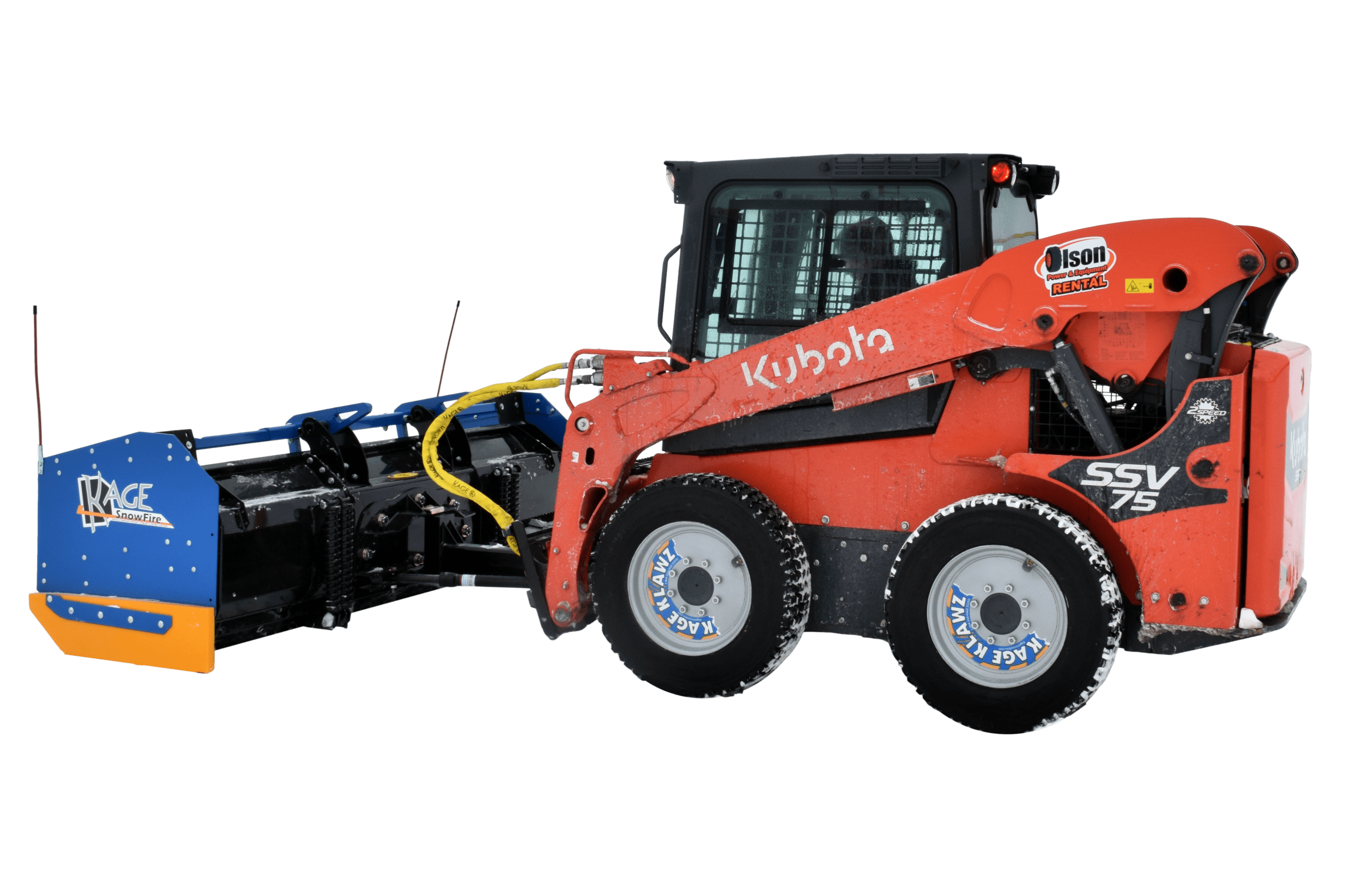

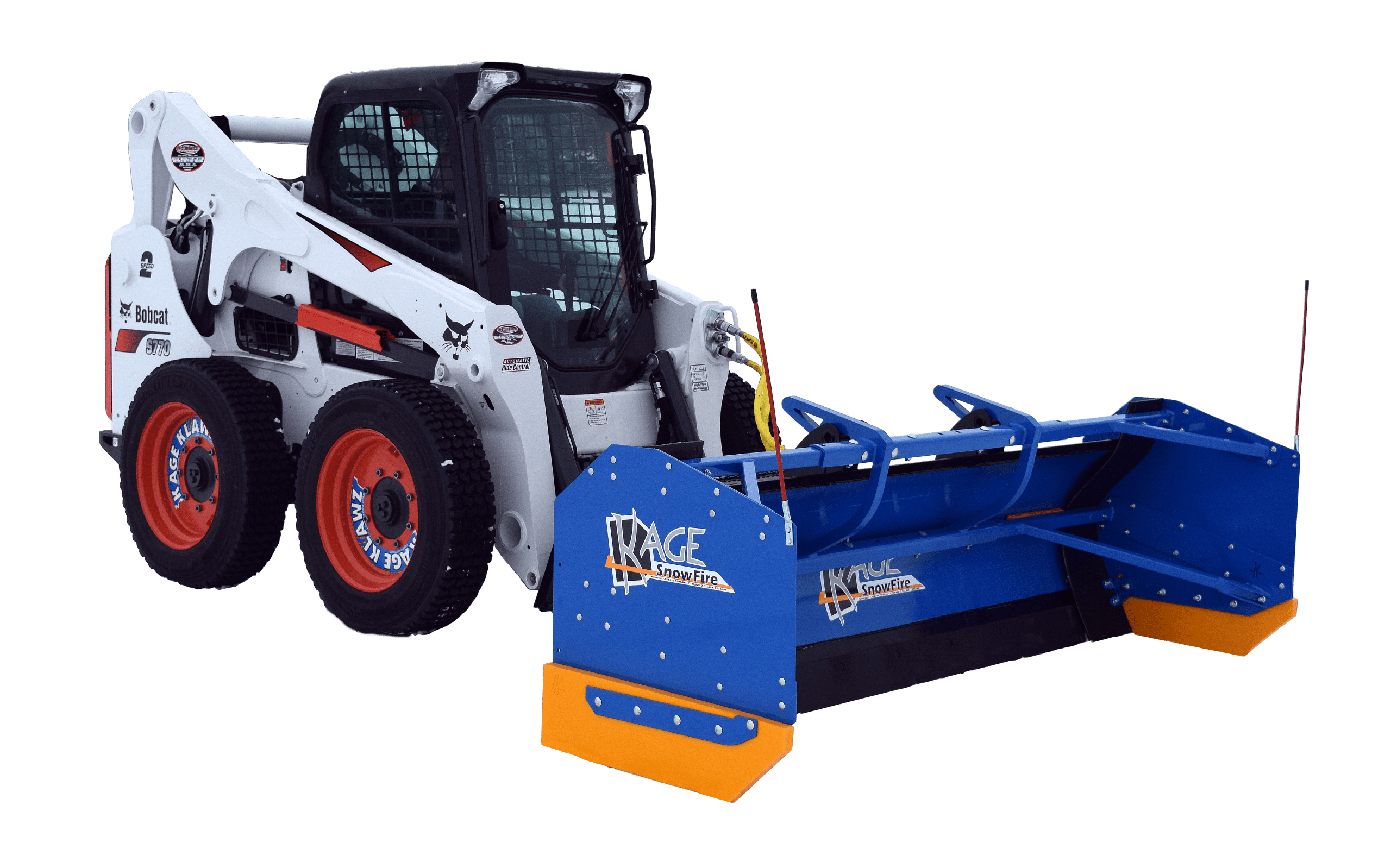

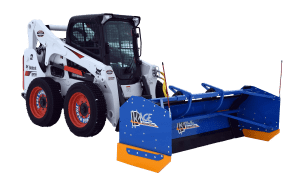

Universal Skid Steer Mount
The Universal Skid Steer Mount is the standard for the SnowFire System. This couples to any modern skid steer in seconds. Then just couple the hydraulic couplers to the machine auxiliary hydraulic and you are ready to roll snow!
MACHINE SIZE RECOMMENDATION
- SBK72 [icon name=”arrow-right” class=”” unprefixed_class=””] 5,000+ LBS
- SBK96 [icon name=”arrow-right” class=”” unprefixed_class=””] 6,000+ LBS
- SBK108 [icon name=”arrow-right” class=”” unprefixed_class=””] 6,500+ LBS
- SBK120 [icon name=”arrow-right” class=”” unprefixed_class=””] 7,000+ LBS

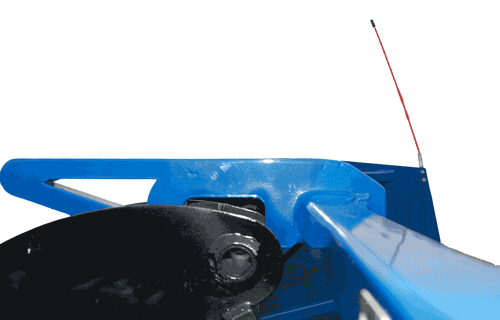

Snow Pusher Cam Lock
Cam Lock – the simple and sturdy way to attach the SnowKage to The Blade from inside your skid steer cab. Raise the boom up and tilt the plow down behind the hooks of the SnowKage, align cam lock brackets of the Blade with the receptor hooks of the SnowKage and raise the boom…. then back to work! This is done in about 5 seconds. Back and forth from plowing to pushing.

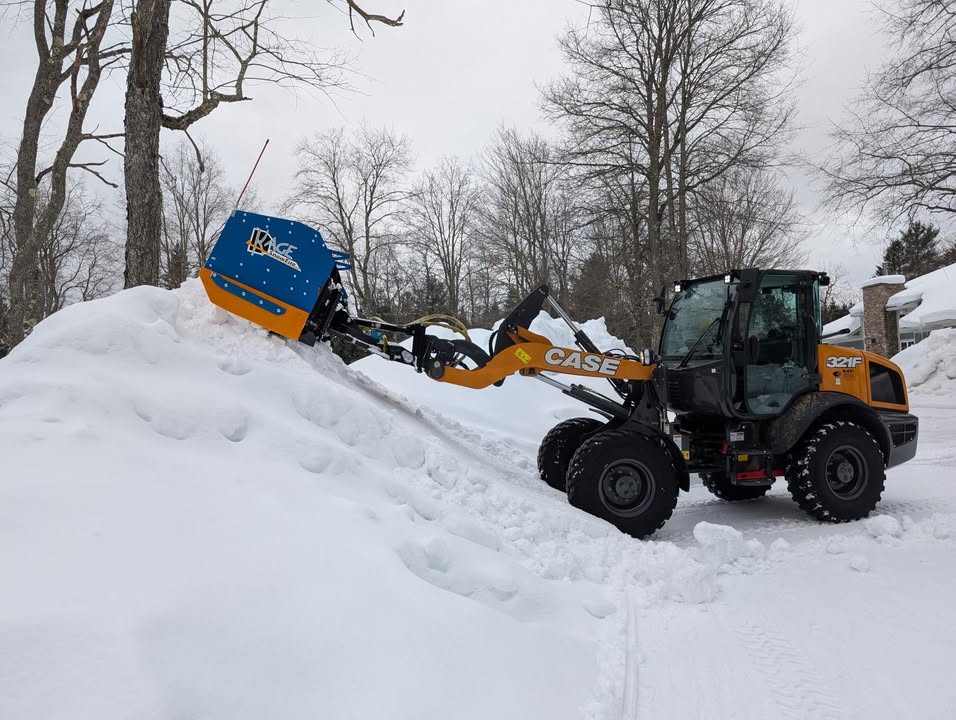

Wheel Loader Attachments

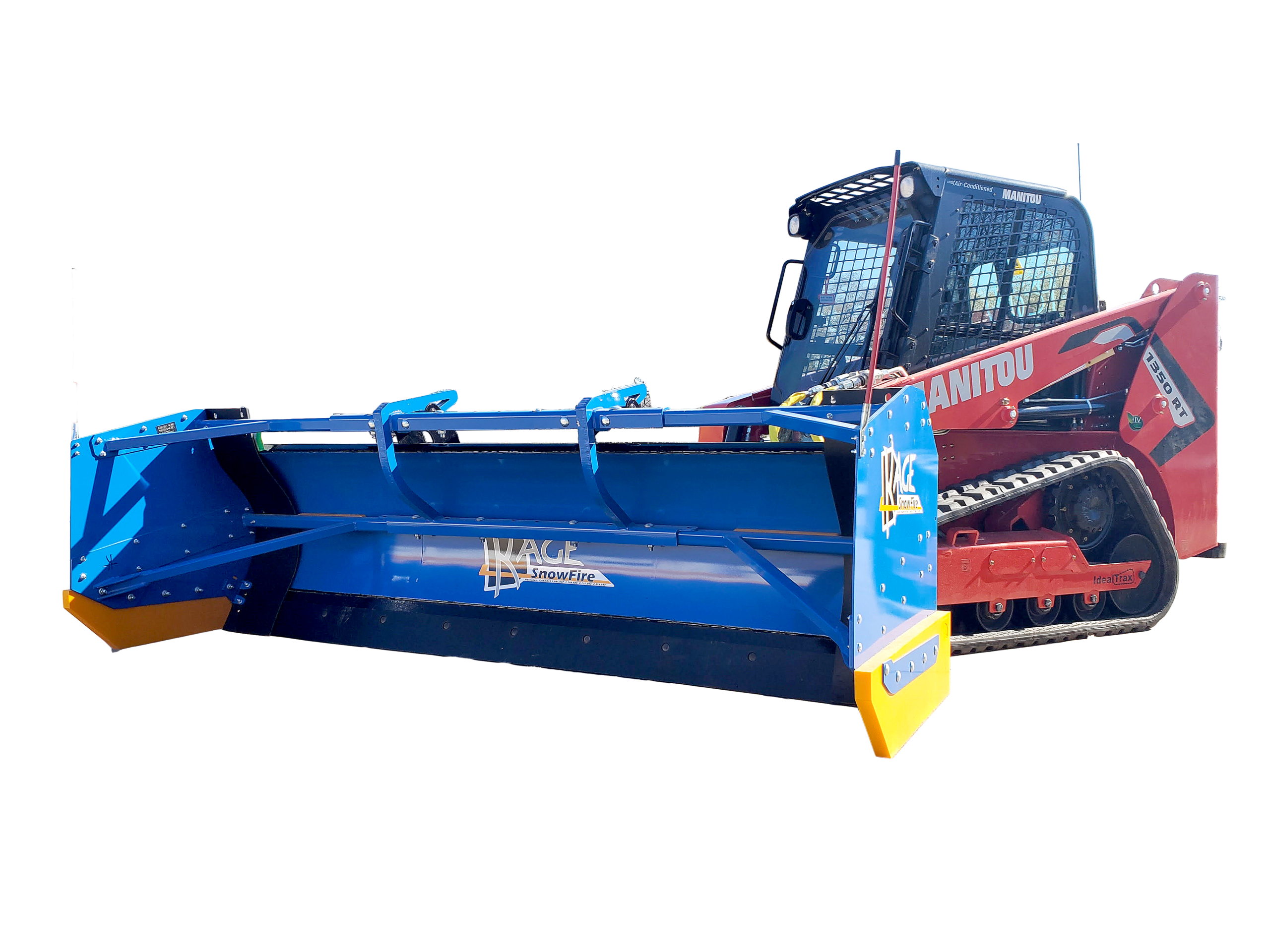

The newest attachment style offered for the SnowFire series is for compact wheel loaders and tractor-loader-backhoes. This system can incorporate many different styles of hook-and-pin style attachments OR universal skid steer attachments. Uniquely designed for compact wheel loader applications, this attachment allows the plow to float while driving over uneven terrain. This floating hitch style is recommended for all wheel loader applications because it increases the ability to steer the loader, and the scraping ability of the plow. For available Quick Attaches see our specification tab.
MACHINE SIZE RECOMMENDATION
- SBK72 [icon name=”arrow-right” class=”” unprefixed_class=””] 5,000+ LBS
- SBK96 [icon name=”arrow-right” class=”” unprefixed_class=””] 6,000+ LBS
- SBK108 [icon name=”arrow-right” class=”” unprefixed_class=””] 6,500+ LBS
- SBK120 [icon name=”arrow-right” class=”” unprefixed_class=””] 7,000+ LBS
- SBK144 [icon name=”arrow-right” class=”” unprefixed_class=””] 7,500+ LBS
Snow Pusher Cam Lock
Cam Lock – the simple and sturdy way to attach the SnowKage to The Blade from inside your compact wheel loader cab. Raise the boom up and tilt the plow down behind the hooks of the SnowKage, align cam lock brackets of the Blade with the receptor hooks of the SnowKage and raise the boom…. then back to work! This is done in about 5 seconds. Back and forth from plowing to pushing.
Flexible Carrier Options | Available Quick Attaches

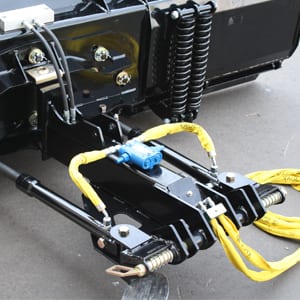

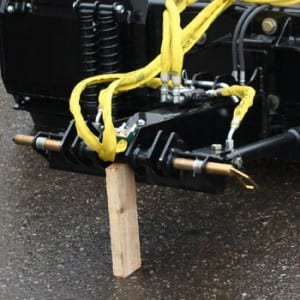

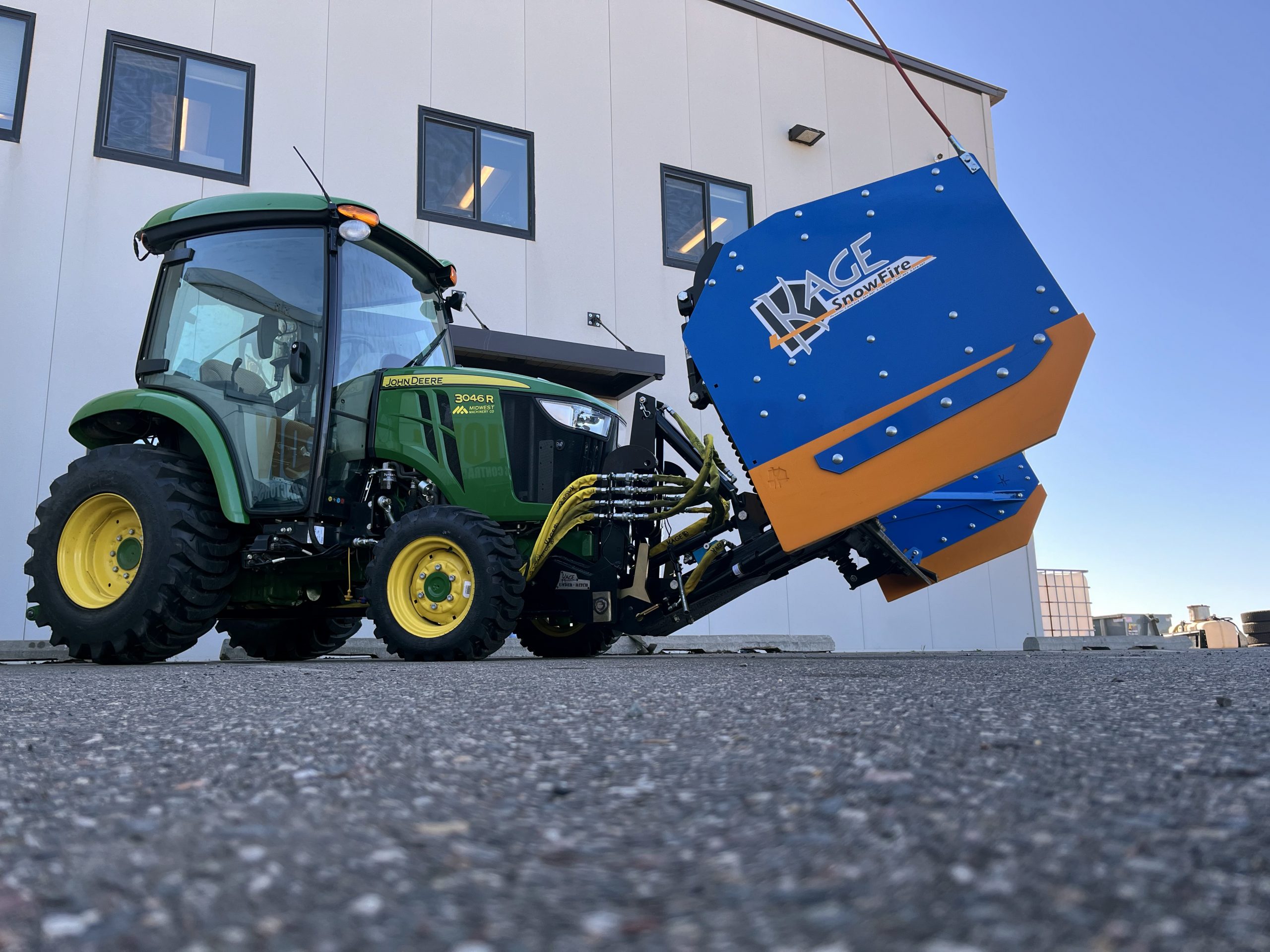

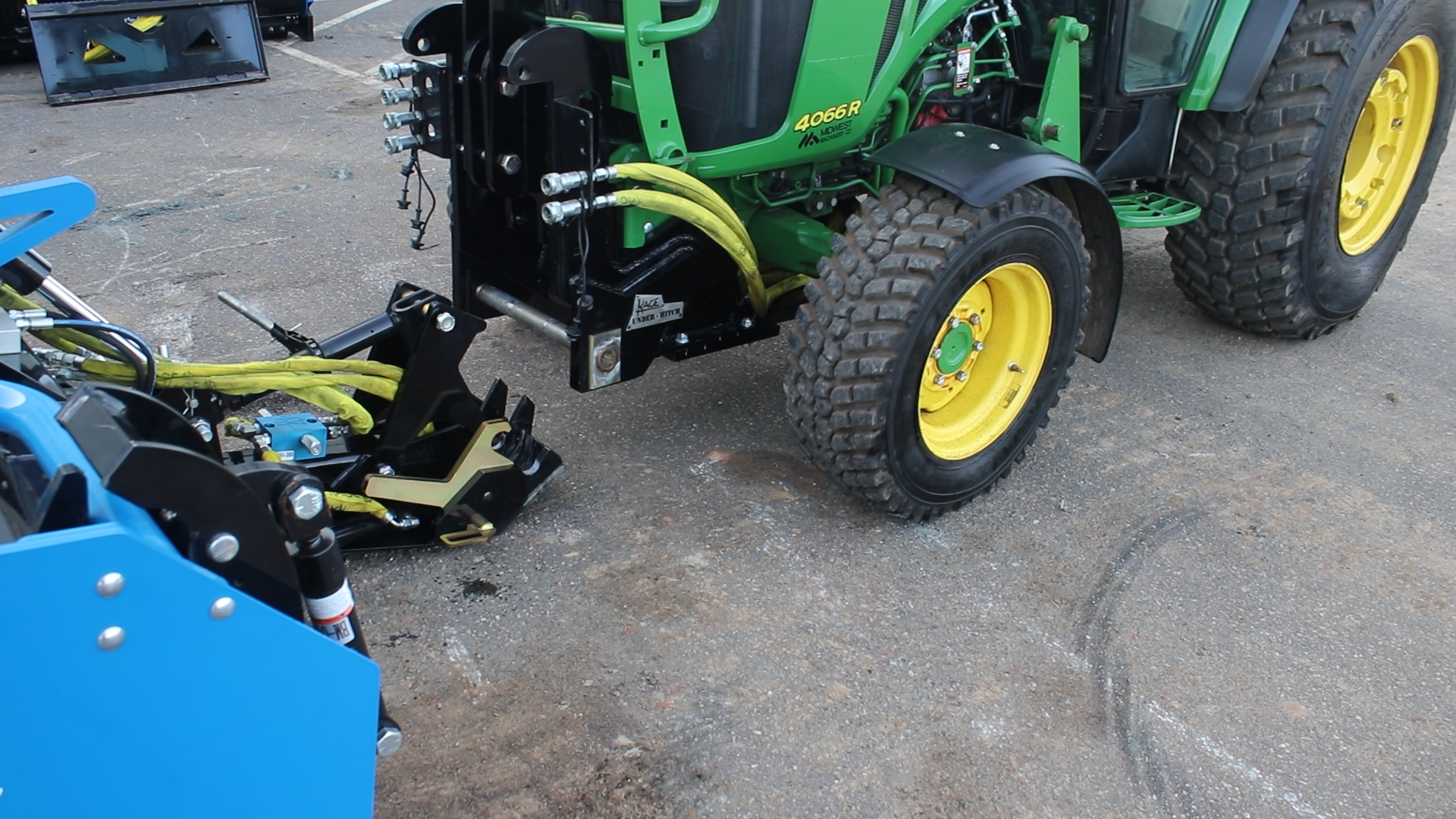

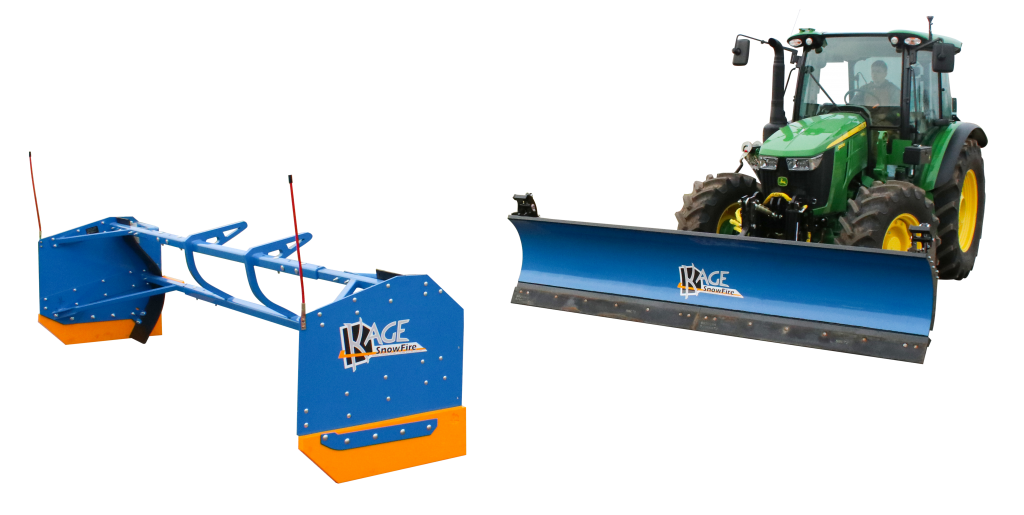

2 Pin Style Tractor Mount
Another Option for attachment is the 2 pin style tractor mount. This hitch is used in combination with one of the Kage Tractor Undercarriages for compact tractors.
MACHINE SIZE RECOMMENDATION
- TBKP96 [icon name=”arrow-right” class=”” unprefixed_class=””] 40 + Horsepower
- TBKP108 [icon name=”arrow-right” class=”” unprefixed_class=””] 50 + Horsepower
- TBKP120 [icon name=”arrow-right” class=”” unprefixed_class=””] 60 + Horsepower
- TBKP144 [icon name=”arrow-right” class=”” unprefixed_class=””] 75 + Horsepower
- Rear counter-weight is recommended for better traction.

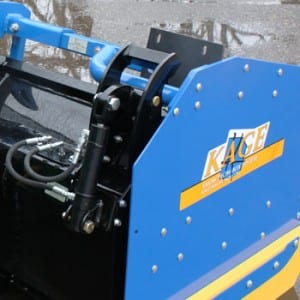

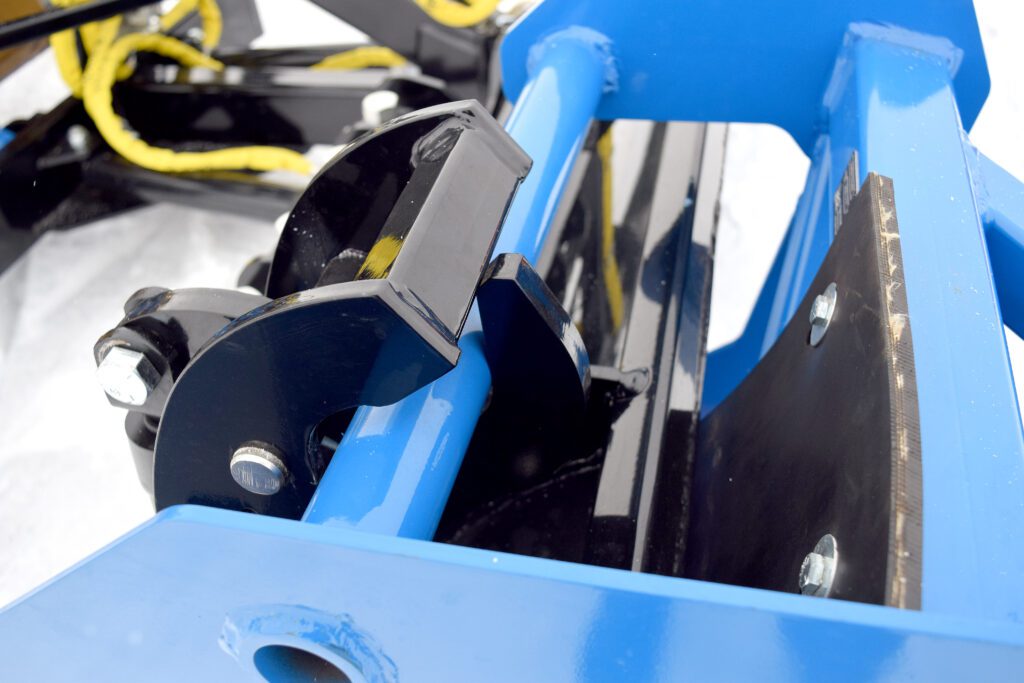

Snow Pusher Hydro Lock
Hydro Lock – uses hydraulic clamps to attach the SnowKage. This is used when the system is coupled to machinery without loader arms; a compact tractor, for instance. Just drop the plow to the pavement, push into the box and activate the hydro clamps to engage the locking tubes of the SnowKage box.

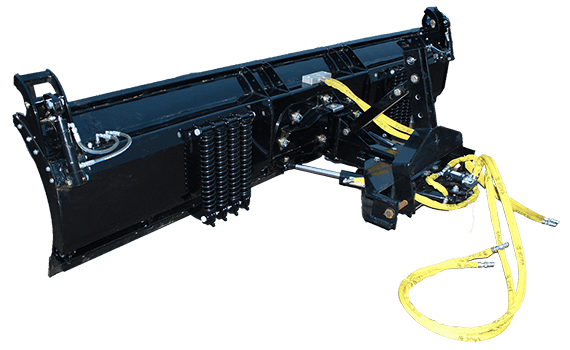

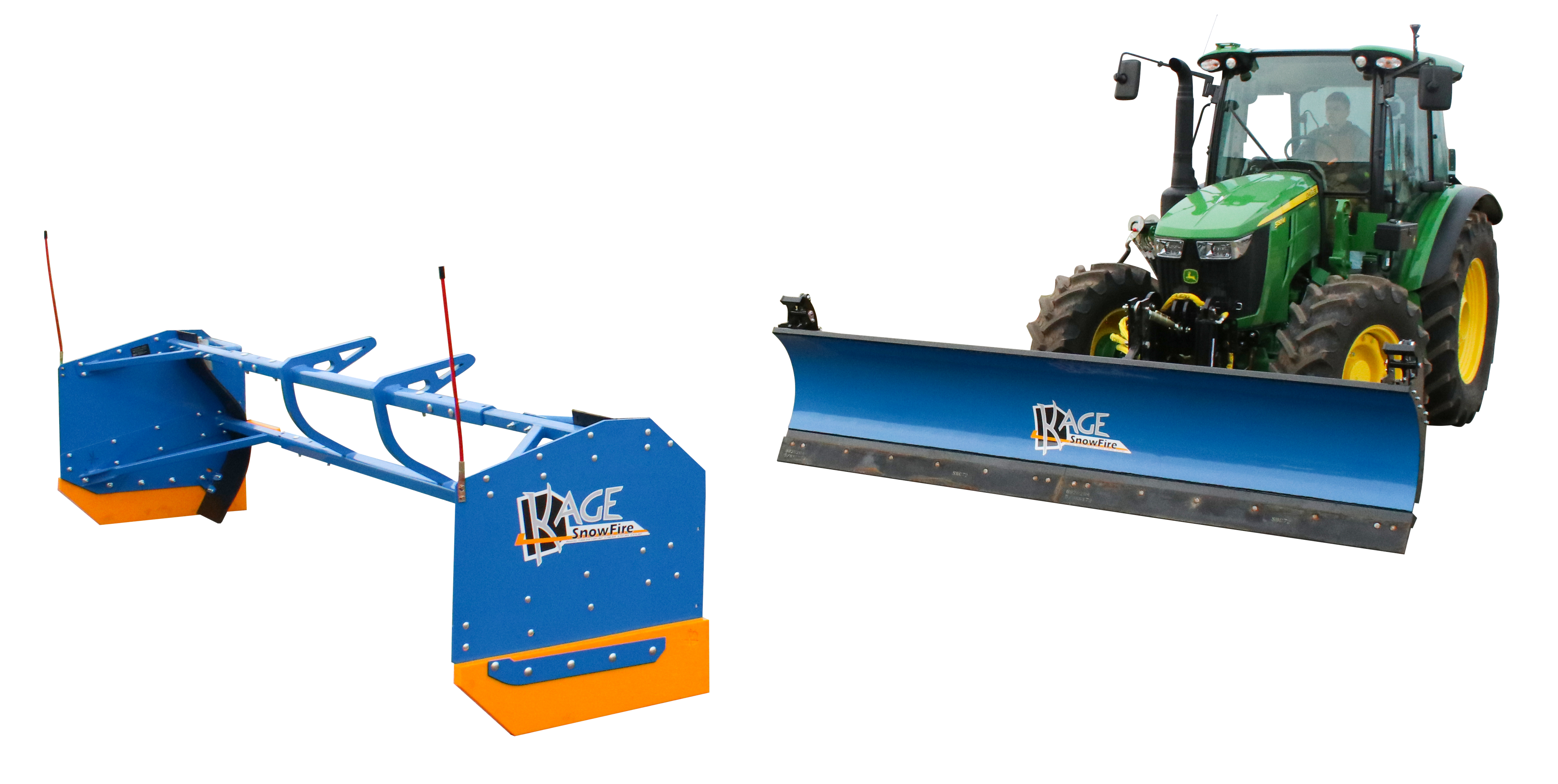

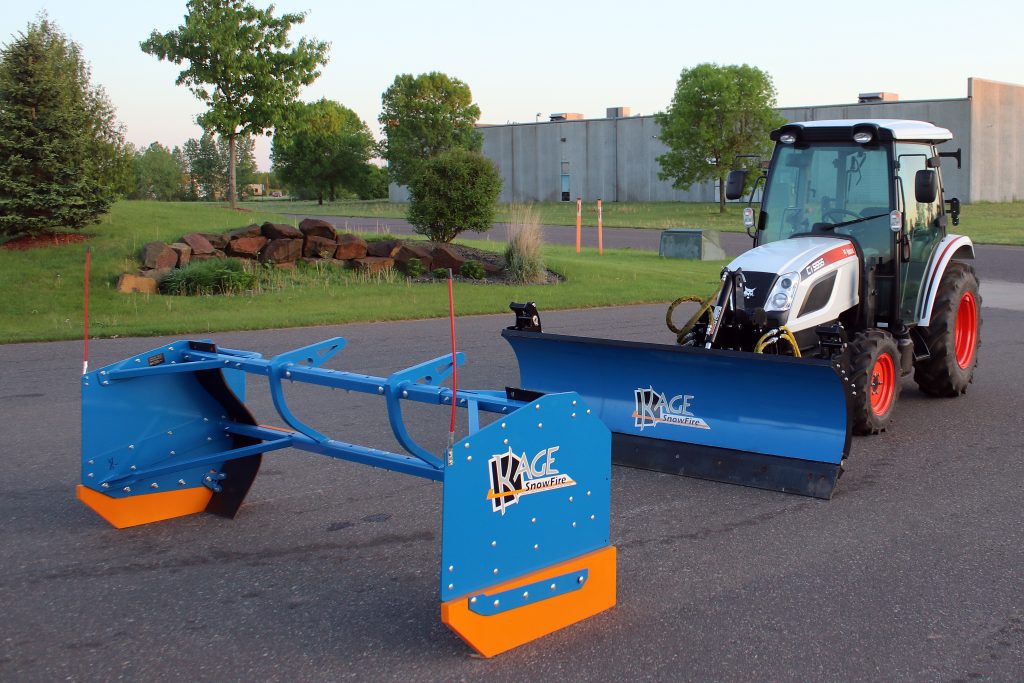

CAT II 3 Point Mount
The CAT II 3 point hitch is designed for agricultural tractors that have a front 3 point carrier system. Some brands and models of tractors have optional OEM front carrier systems. If yours does not, don’t worry! Check out our line-up of turn-key and easy to install tractor undercarriages. We won’t let anything stand in the way to making you more efficient!
MACHINE SIZE RECOMMENDATION
- KS3P96 [icon name=”arrow-right” class=”” unprefixed_class=””] 40 + Horsepower
- KS3P108 [icon name=”arrow-right” class=”” unprefixed_class=””] 50 + Horsepower
- KS3P120 [icon name=”arrow-right” class=”” unprefixed_class=””] 60 + Horsepower
- KS3P144 [icon name=”arrow-right” class=”” unprefixed_class=””] 75 + Horsepower
- Rear counter-weight is recommended for better traction.
Snow Pusher Hydro Lock
Hydro Lock – uses hydraulic clamps to attach the SnowKage. This is used when the system is coupled to machinery without loader arms; a compact tractor, for instance. Just drop the plow to the pavement, push into the box and activate the hydro clamps to engage the locking tubes of the SnowKage box.
Seamless Transition from Snow Plow to Box Plow
The SNOWKAGE box hooks onto a skid steer snow plow to instantly create a revolutionary containment system. This is done in seconds without leaving the cab – no pins, bolts, or hinges. The KAGE system takes the advantages of a snow plow and a pusher box and combines them into one fast and seamless operation. Operators can windrow or backdrag with the plow normally, then grab the SNOWKAGE box to push out their piles or windrows. Then they can go back to plowing – without leaving the cab. The KAGE system reduces plowing frustrations and hassles. The KAGE system reduces plowing times by 25-50%.
Snow Scraping
With KAGE box attached, the trip edge mechanism of the plow still operates normally. Not only does the trip edge work normally, but so does the cutting edge! The scraping ability of the plow is not hindered by the ‘shoes’ of the SNOWKAGE. This means that you are always scraping down to asphalt in one pass.
Snowplow Angle Function
Use the angle function of the plow while you are pushing. This means that you have a huge advantage over fixed snow pushers in that you can maneuver the load around turns without losing half of it!
Snow Stacking
The KAGE system is great for cleanup operations, as well as break-out during a heavy snow fall. The applications for the KAGE system combined with the skid steer versatility are virtually endless. In contrast, fixed snow pushers reduce skid steer efficiency and versatility. The normally wide range of sites that skid steers can be used at is greatly diminished, and little things like cleanup along curbs becomes a chore. When KAGE box is dropped off, there is no change to the performance of the snow plow. KAGE box cannot become unwantingly detached -even while pushing up piles- until correct boom tilt is performed. Can it stack snow? Why yes, of course. In fact it will stack higher and faster than a pusher or bucket because you have more reach and don’t have to ‘dump’!
Tri-Formed Box For Strength
The KAGE Moldboard has a plow structure like no other in its class. The full length Tri-Formed Box structure gives it the most torque resistance and rigidity. Designs like this have been used in the highway plows for years. We take skid steer plowing seriously. Even the moldboard sheet itself is no run-of-the-mill mild steel. No this is 10ga GRADE 50, which among other things has a higher tensile strength, meaning it is harder to dent and tear, prolonging the life of the finish and plow itself.
Heavy Duty Snow Plow Powder Coating
Powder Coated Snow Plow BladeBaked on powder coat and primer at 400+ degrees safeguards all of the steel components, and keeps the Blade looking great for years. We don’t like the look of rust streaks or deteriorating pockets of corrosion, and we guess neither do you, so we eliminate all of that through a proprietary method of applying seam sealer to all un-welded joints prior to the finish getting baked on. This substantially increases the life of the entire finish and overall long lasting quality appearance. Not to mention our two-tone powder process that gives you the striking KAGE Blue and black combination, signifying Lasting KAGE Quality.
9″ Plow Blade Trip Edge
The Blade features a tall, 9″ safety trip-edge standard. This prevents accidental damage when encountering hidden obstacles by tripping back 68 degrees. Powered by four compression style return springs and pivoting on 7 total 1 inch trip pins, it trips when you need it, and stays put when you don’t.
Blade Down Pressure
Snow Plow Down PressureDown pressure? Bring it on! Trip edges like this are meant to take the abuse so common to skid steer plowing.
Aggressive Plow Angle
Plow AngleThe Attack Angle is an aggressive 65 degrees so that it scrapes cleanly – forward and backwards. Mounted onto the trip edge is a High Carbon steel cutting edge, 6 inches tall, 5/8 inches thick.
Replaceable Plow Cutting Edge
Our cutting edges are also a result of the highway department standards, and will fit up with any ‘standard highway punch’ design, available almost anywhere. No-one wants more downtime, so just replace the edge as needed – no need to move, rotate, flip or flop!
Advanced Snowplow
Hydraulics System
The SNOWFIRE Hydraulic System is packed with features that every snow control pro will love.
Protective Sleeves & Advanced Couplers
First, we put protective sleeves on all of the hoses; standard. Next we include a Stucchi APM Series Male and Female Coupling that will connect by hand with residual pressure of 300 bar or 2900 psi locked in the hydraulic circuit. It will connect with residual pressure without releasing any fluid into the environment. The mating circuit will need to be without residual pressure. Mobile equipment & attachment tools where exposure to the sun,or temperature change causes pressure to develop due to thermal expansion of trapped fluid. Any application where static pressure can get locked into the system. Finally this system is completed with fluid restrictors, an adjustable hose-placement tie-down block and two Nitro Rod plow cylinders. This robust system complements the rugged features and operation of this system in any environment old man winter can produce.
Severe Plowing Angle
Angle plowing with a skid steer at low speed? Absolutely! No question that this is efficient, and it’s made even better with the severe 35 degree max angle that the plow can achieve. This is more productive and efficient than plowing with trucks in many situations!
Snow Plow Blade Oscillation
Well the next thing is oscillation, AKA tilt or float; this prevents situations when your blade doesn’t stay flat on the plowing surface, whether due to uneven pavement, or improper boom adjustment. The KAGE Blade always stays flat on the plowing surface, from tip to tip whether fully angled or straight. Even with down pressure applied! Simple for operators, just drop and go. You don’t have to worry about one side digging in as you angle or drive over bumps.heavy-duty-plow-slot-plate
SNOWKAGE Transforms Simple Blade Into Box Plow
So simple, yet so genius. The simple design of the SNOWKAGE gives it a bullet proof structure that befuddles the destructive tendencies so many snow removal operations can produce.
Flexible Polyurethane Skids
Polyurethane skids are flexible, rather than rigid steel shoes. Finally, something that doesn’t get bent up! They also feature 4 slots in the rear that allow the skid to self-adjust upwards as the cutting edge of the plow becomes worn. This ensures that the plow is always scraping and cleaning like it should.
Low Maintenance
Every detail of the SNOWKAGE flows right into the overall theme of low maintenance and simplicity. The polyurethane bumpers protect the finish, while the pre-punched 10 inch wide snow catches prevent spillage while pushing.
Pusher Replaceable Side Panels
Replaceable side panels are standard and just bolt on easily in case of replacement.
SNOWKAGE Frames
SNOWKAGE Frames: 6ft solid weldment, 8ft – 10ft adjustable. SK72 Frame – 6ft solid weldment SK2011 Frame – 8-10ft adjustable
Attachment Options
Universal Skid Steer Mount
The Universal Skid Steer Mount is the standard for the SnowFire System. This couples to any modern skid steer in seconds. Then just couple the hydraulic couplers to the machine auxiliary hydraulic and you are ready to roll snow!
MACHINE SIZE RECOMMENDATION
- SBK72 [icon name=”arrow-right” class=”” unprefixed_class=””] 5,000+ LBS
- SBK96 [icon name=”arrow-right” class=”” unprefixed_class=””] 6,000+ LBS
- SBK108 [icon name=”arrow-right” class=”” unprefixed_class=””] 6,500+ LBS
- SBK120 [icon name=”arrow-right” class=”” unprefixed_class=””] 7,000+ LBS
Wheel Loader Attachments
The newest attachment style offered for the SnowFire series is for compact wheel loaders and tractor-loader-backhoes. This system can incorporate many different styles of hook-and-pin style attachments OR universal skid steer attachments. Uniquely designed for compact wheel loader applications, this attachment allows the plow to float while driving over uneven terrain. This floating hitch style is recommended for all wheel loader applications because it increases the ability to steer the loader, and the scraping ability of the plow. For available Quick Attaches see our specification tab.
2 Pin Style Tractor Mount
Another Option for attachment is the 2 pin style tractor mount. This hitch is used in combination with one of the Kage Tractor Undercarriages for compact tractors.
Lock Options
Snow Pusher Cam Lock
Cam Lock – the simple and sturdy way to attach the SnowKage to The Blade from inside your skid steer cab. Raise the boom up and tilt the plow down behind the hooks of the SnowKage, align cam lock brackets of the Blade with the receptor hooks of the SnowKage and raise the boom…. then back to work! This is done in about 5 seconds. Back and forth from plowing to pushing.
Snow Pusher Hydro Lock
Hydro Lock – uses hydraulic clamps to attach the SnowKage. This is used when the system is coupled to machinery without loader arms; a compact tractor, for instance. Just drop the plow to the pavement
Polyurethane Cutting Edge
The Polyurethane Cutting Edge is useful when plowing delicate surfaces such as decorative concrete and pavers, or sealcoating. In our experience, this proprietary blend of polyurethanes outlasts rubber, and even steel in some cases without damaging the plowing surface. The blade is 1 ½ inches thick, pre-drilled and the optional kit comes with a steel support strip and extra long carriage bolts for easy installation.
Curb-Guard
Optional curb guard kit helps reduce wear to the trip edge. Clean curb lines are crucial, but don’t wear out your plow in the process! The curb guards are sold as a kit, and they are able to transpose so that you get double the wear.
Back Drag Kit
Do you have sites where you’re regularly back dragging snow? Do you want to dramatically increase the efficiency of your snow plow when back dragging snow? The Back Drag Kit manufactured exclusively by KAGE Innovation is designed to fit any 6″ to 8″ snow plow cutting edge machine with a highway punch bolt hole pattern. It also works great with trip-edge plows and when you’re angling snow away from curbs, the flexible design of the Back Drag Kit can take the abuse. The entire kit weighs 10 pounds and it’s built from the same uniquely blended polyurethane material used in our Poly Cutting Edges and Poly Skids. It’s far more durable and will last considerably longer than rubber. The kit comes with 2 Poly Back Drag Catches, 4 Back Catch Backing Plates for secure mounting, 4 High Strength Steel Bolts and 4 Flange Locknuts.
SPECIFICATIONS
SNOWBLADE
SB72
For Machines Starting at 5,000 lbs | SB72 |
---|---|
Blade Width | 6′ |
Blade Width at Full Angle | 59″ |
Oscillation (Degrees/Inches) Each End | 6°/7.5″ |
Moldboard Radius | 15.5″ |
Moldboard Gauge / Steel Grade | 10 ga. / Grade 50 |
Trip Springs | 4 |
Cutting Edge High Carbon | 5/8″ x 6 |
Cross-Over Relief Valve | Optional |
Pivot Frame Length | (25″) |
Machine Size Recommended | 5,000 lbs+ |
Weight | 906 lbs |
Cylinders (2) | Nitro 1.5″ |
Blade Height | 31.125″ |
SB96
For Machines Starting at 5,000 lbs | SB96 |
---|---|
Blade Width | 8′ |
Blade Width at Full Angle | 79″ |
Oscillation (Degrees/Inches) Each End | 6°/10″ |
Moldboard Radius | 15.5″ |
Moldboard Gauge / Steel Grade | 10 ga. / Grade 50 |
Trip Springs | 4 |
Cutting Edge High Carbon | 5/8″ x 6 |
Cross-Over Relief Valve | Standard |
Pivot Frame Length | (31″) |
Machine Size Recommended | 6,000 lbs+ |
Weight | 1031 lbs |
Cylinders (2) | Nitro 1.5″ |
Blade Height | 31.125″ |
SB108
For Machines Starting at 5,000 | SB108 |
---|---|
Blade Width | 9′ |
Blade Width at Full Angle | 88.5″ |
Oscillation (Degrees/Inches) Each End | 6°/11.25″ |
Moldboard Radius | 15.5″ |
Moldboard Gauge / Steel Grade | 10 ga. / Grade 50 |
Trip Springs | 4 |
Cutting Edge High Carbon | 5/8″ x 6 |
Cross-Over Relief Valve | Standard |
Pivot Frame Length | (31″) |
Machine Size Recommended | 6,500 lbs+ |
Weight | 1087 lbs |
Cylinders (2) | Nitro 1.5″ |
Blade Height | 31.125″ |
SB120
For Machines Starting at 5,000 lbs | SB120 |
---|---|
Blade Width | 10′ |
Blade Width at Full Angle | 98.25″ |
Oscillation (Degrees/Inches) Each End | 6°/12.5″ |
Moldboard Radius | 15.5″ |
Moldboard Gauge / Steel Grade | 10 ga. / Grade 50 |
Trip Springs | 4 |
Cutting Edge High Carbon | 5/8″ x 6 |
Cross-Over Relief Valve | Standard |
Pivot Frame Length | (31″) |
Machine Size Recommended | 7,000 lbs+ |
Weight | 1147 lbs |
Cylinders (2) | Nitro 1.5″ |
Blade Height | 31.125″ |
SB144
For Machines Starting at 5,000 lbs | SB144 |
---|---|
Blade Width | 12′ |
Blade Width at Full Angle | 119″ |
Oscillation (Degrees/Inches) Each End | 6°/15″ |
Moldboard Radius | 15.5″ |
Moldboard Gauge / Steel Grade | 10 ga. / Grade A36 |
Trip Springs | 8 |
Cutting Edge High Carbon | 5/8″ x 6 |
Cross-Over Relief Valve | Standard |
Pivot Frame Length | (31″) |
Machine Size Recommended | 8,500 lbs+ |
Weight | 1,541 lbs |
Cylinders (2) | Nitro 2″ |
Blade Height | 31.125″ |
SNOWKAGE
SK72
For Machines Starting at 5,000 lbs | SK72 |
---|---|
Overall Height | 40″ |
Overall Width | 80″ |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-steer Model Only) | 1.5″ |
Replaceable Poly Skids | 36″ x 9.75″ x 1.5″ |
Weight | 366 lbs |
Machine Size Recommended | 5,000 lbs+ |
Overall Width at 35 Degree Angle | 85.8″ |
Total Weight of Kage System (Blade+Box) | 1,272 lbs |
SK96
For Machines Starting at 5,000 lbs | SK96 |
---|---|
Overall Height | 40″ |
Overall Width | 104″ |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-steer Model Only) | 1.5″ |
Replaceable Poly Skids | 36″ x 9.75″ x 1.5″ |
Weight | 442 lbs |
Machine Size Recommended | 6,000 lbs+ |
Overall Width at 35 Degree Angle | 105.4″ |
Total Weight of Kage System (Blade+Box) | 1,473 lbs |
SK108
For Machines Starting at 5,000 lbs | SK108 |
---|---|
Overall Height | 40″ |
Overall Width | 116″ |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-steer Model Only) | 1.5″ |
Replaceable Poly Skids | 36″ x 9.75″ x 1.5″ |
Weight | 442 lbs |
Machine Size Recommended | 6,500 lbs+ |
Overall Width at 35 Degree Angle | 115.3″ |
Total Weight of Kage System (Blade+Box) | 1,529 lbs |
SK120
For Machines Starting at 5,000 lbs | SK120 |
---|---|
Overall Height | 40″ |
Overall Width | 128″ |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-steer Model Only) | 1.5″ |
Replaceable Poly Skids | 36″ x 9.75″ x 1.5″ |
Weight | 442 lbs |
Machine Size Recommended | 7,000 lbs+ |
Overall Width at 35 Degree Angle | 125.2″ |
Total Weight of Kage System (Blade+Box) | 1,589 lbs |
SK144
For Machines Starting at 5,000 lbs | SK144 |
---|---|
Overall Height | 40″ |
Overall Width | 150″ |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-steer Model Only) | 1.5″ |
Replaceable Poly Skids | 36″ x 9.75″ x 1.5″ |
Weight | 477 lbs |
Machine Size Recommended | 8,500 lbs+ |
Overall Width at 35 Degree Angle | 145″ |
Total Weight of Kage System (Blade+Box) | 1,983 lbs |
