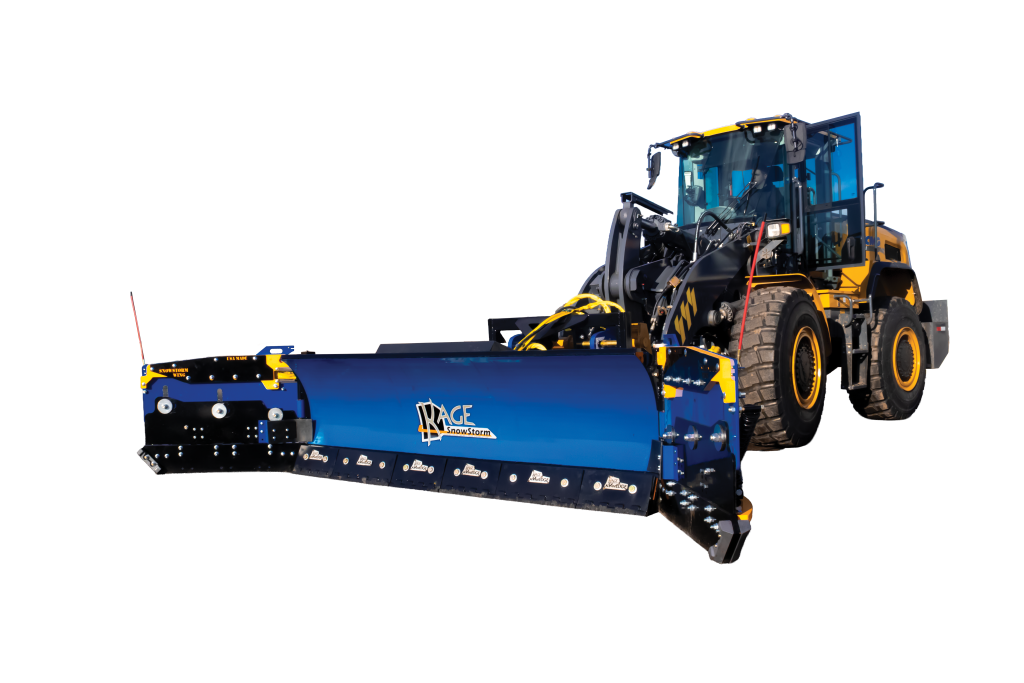

Wing Plow For Loaders & Tractors
The KAGE® SnowStorm™ Wing is the widest snow plow in our lineup for mid-size equipment with the ability to extend to 20 feet wide. The SnowStorm Wing, designed for wheel loaders in the 15-30K pound range and 100-plus horsepower tractors is available in 15 foot to 22 foot widths (with wings extended) based on 7 to 14 foot center moldboards and 4-foot hydraulic wings.
Built for heavy duty work, it has the ability to smoothly transition anywhere from containment back dragging to windrow plowing and snow pushing. This 36-inch tall snow plow attachment has infinite possibilities.
The KAGE SnowStorm wing plow rounds out your snow removal fleet with the power to push huge amounts of snow, and agility to do cleanup and open-up operations as well!
Use the SnowStorm Wing plow on:

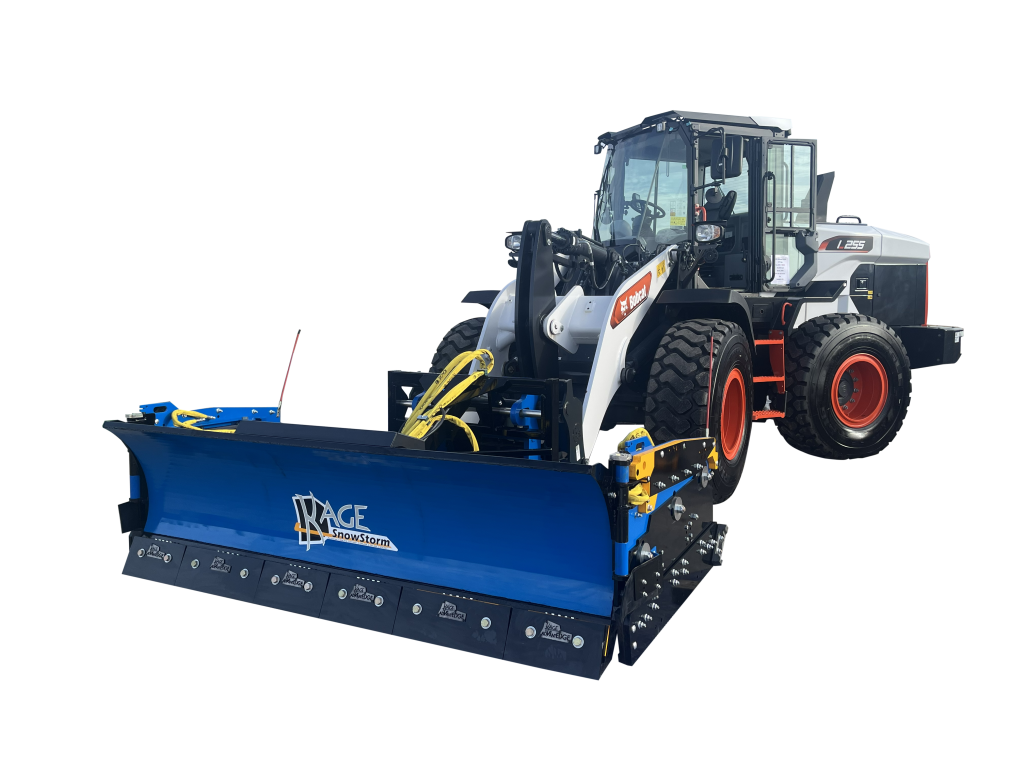

- Wheel Loaders
- Tractors
- Tractor Loader Backhoes
- Telehandlers
Hydraulic Wing Plow For Mid-Size Wheel Loaders And Tractors
All-In-One Snow Plow
The KAGE SnowStorm Wing combines windrowing with box pushing, stacking and back dragging into a do-it-all snow plow with hydraulically powered wings. The simple advantages of these functions are brought together with a compact, flexible inline three-button control switch that allows you to simultaneously or independently control the hydraulic wings on either side of the moldboard.
This 36-inch tall wing plow simplifies the leveling process, increasing efficiency and reducing uneven wear on the wings.

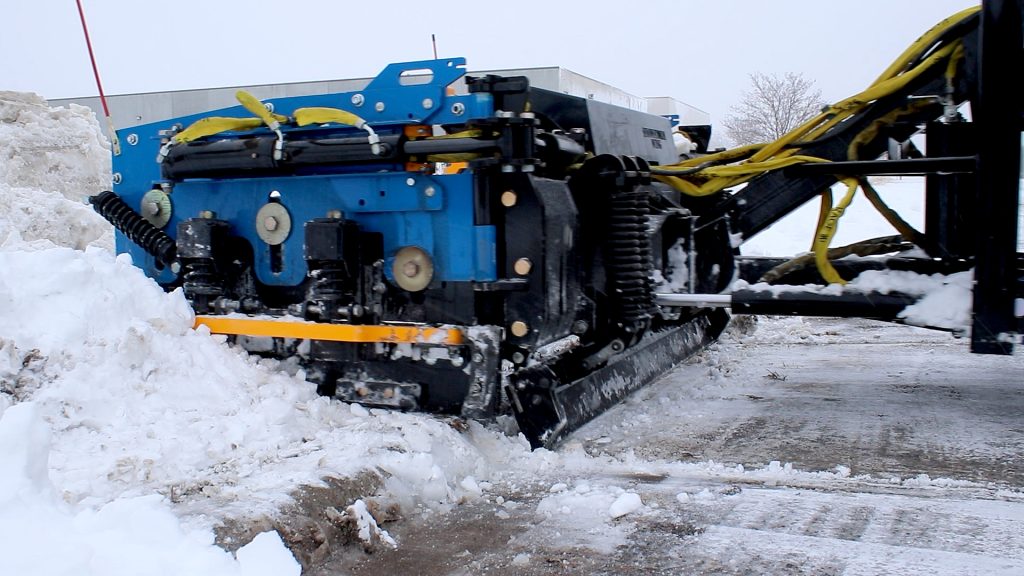

Floating & Oscillating Skids
The SnowStorm Wing’s unique heel-to-toe floating and oscillating skids shorten the learning curve for new operators and increase the lifespan of the wings while maximizing performance. No longer do you have to set your plow down perfectly level to keeps the wings in the proper position (although it’s still recommended to avoid dragging the loader boom on the ground).
Vertical travel at the heel combined with vertical travel at the toe of the skid allow the full wings to stay in contact with the ground, even if the plow is tilted forward or backward. This prevents uneven wear on the skids and substrate as well as preventing snow leakage from under the wing.

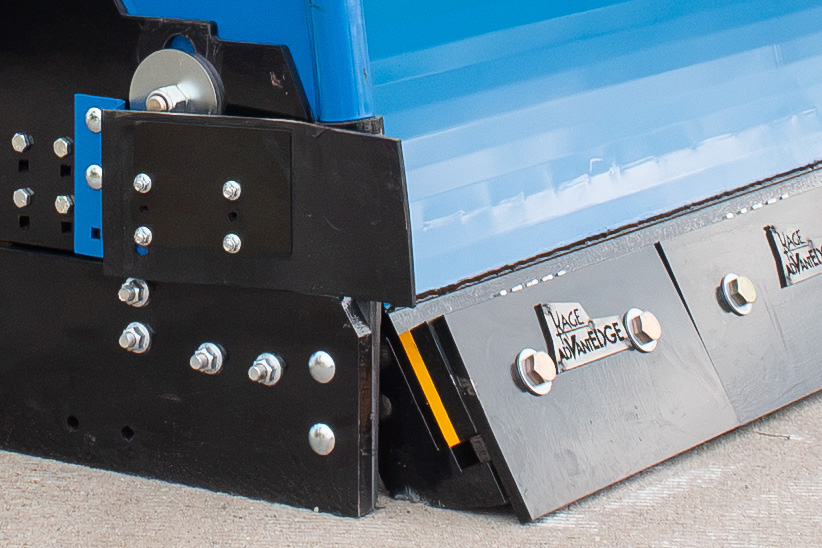

Snow Catch Flap
In order to allow for significant float in the skids, the SnowStorm Wing must give it a space (or void) above the cutting edge for it to travel into. To ensure that does not result in any snow leakage, KAGE utilizes a small, flexible rubber snow catch that accommodates both the floating skid and pivoting wing. Rest assured, although flexible, this snow catch is made of, and supported by, durable materials that won’t be just “flapping” in the breeze!

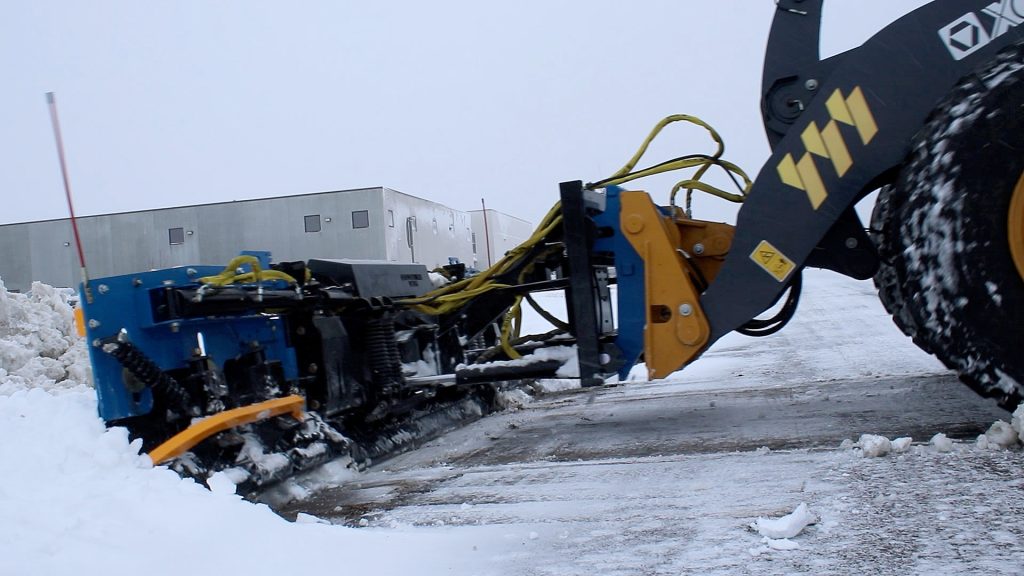

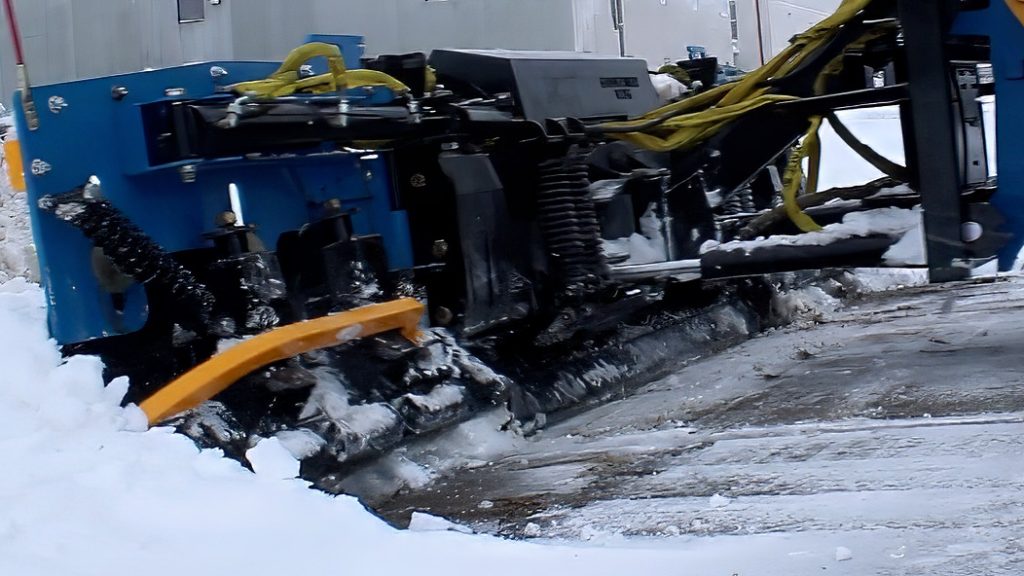

Compression Spring Trip Edge
Not only does the SnowStorm Wing implement a 90-degree trip edge to the center blade of the plow, but it also includes trip on the cutting edge of the wing that matches that of the center moldboard trip edge, adding that extra level of protection for the plow, machine, operator and infrastructure.
Like the trip edge on the blade, the wing trip edge utilizes long-lasting compression springs to ensure the cutting edge returns to its original position after encountering an obstacle.

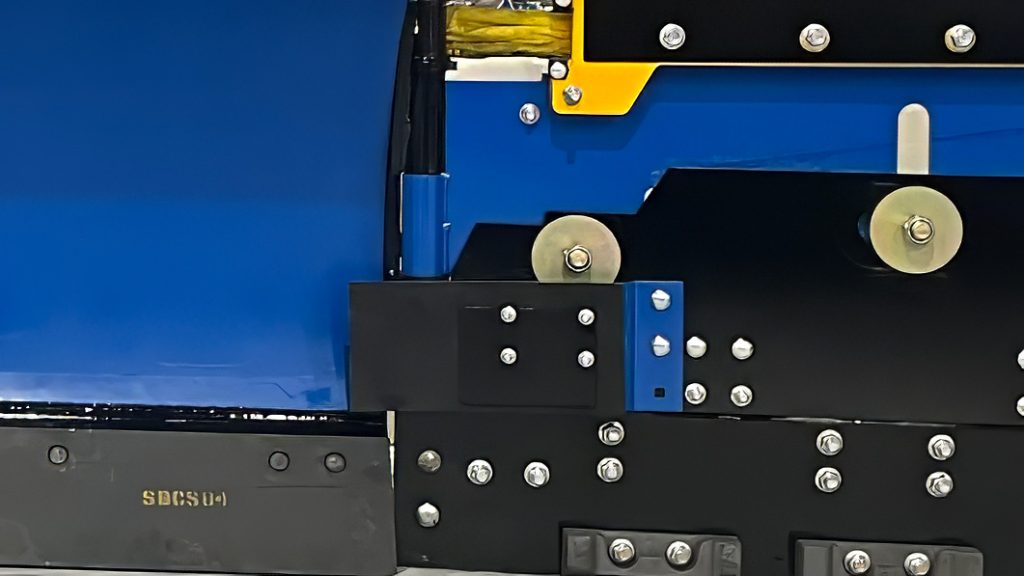

Tight/Floating Hinges
Through extensive testing, KAGE developing a wing hinge that not only allows the wings to pivot smoothly on the blade, but also closes that pesky gap between the wing and the blade that causes “snail trails” of leaked snow. The SnowStorm Wing hinges were designed to give plenty of space for pivoting. At the same time, when your wheel loader or tractor is actually pushing or back dragging the snow, that pressure of the snow and friction with the substrate slides the wings tightly against the blade to eliminate snow leakage.
Infinitely Adjustable Wing Angling
If you’ve used other wing plows, you may have found that there are pre-set angles at which the wings can be set – or you can only move one wing at a time. This can be frustrating for the skilled operator who wants to do precision work on the fly.
With the SnowStorm Wing, both wing angles can be adjusted simultaneously in the same or in different directions. The choice is yours! And – both wings offer a full 180-degree pivot range with no pre-set stopping points, mean you can adjust them to any angle you wish between 90 degrees forward and 90 degrees backward.
3-Button Control
You’ve got enough on your mind when your plowing that you don’t need to worry about one more complicated set of controls. KAGE kept that in mind when it chose its 3-button control system for the wings. It doesn’t get any simpler than that!
To top it off, the flexible inline design of the button control wiring harness allows you to quickly and easily mount your wing controls on the existing joystick of nearly any machine – with nothing more than zip ties or tape – where the buttons are most convenient for you.

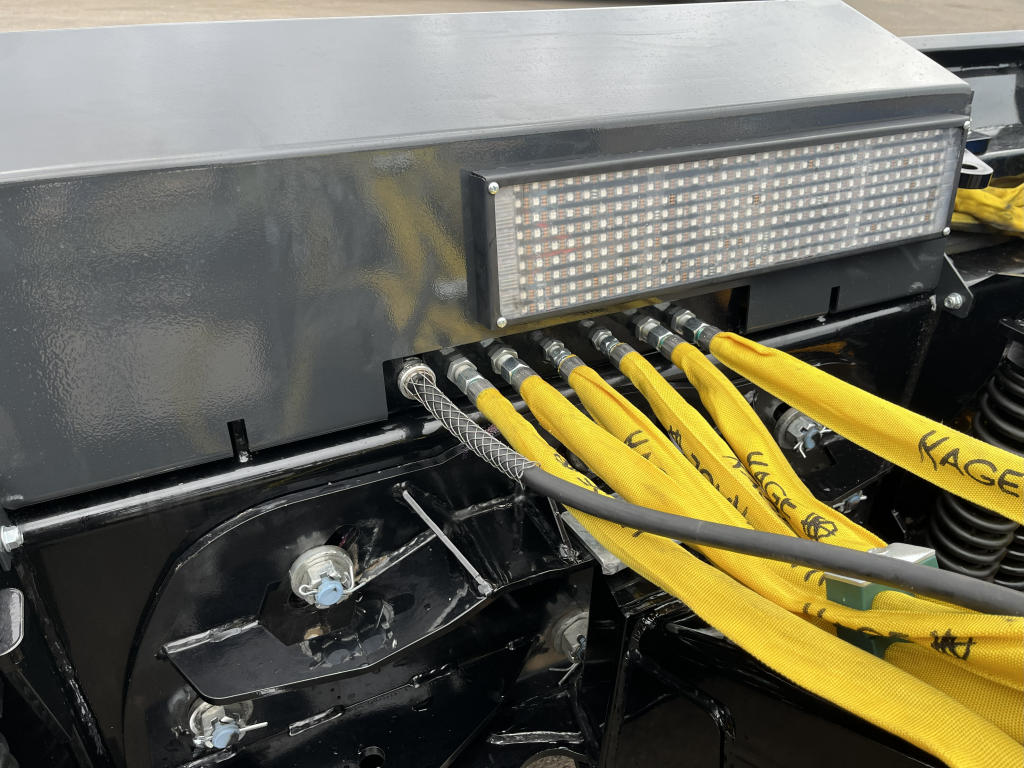

Protected Hydraulic Hoses
With all of the hydraulics that go into a system like this, KAGE understands that increases the risk that a hose can become damaged, and repairs may need to be made. To reduce the risk and hassle associated with that, special effort was placed on ensuring hoses and couplers were places in easy to access areas in an orderly fashion and were protected against the elements, including snags, pinches & cuts. With that in mind, most of the hydraulics are protected in an enclosed moldboard. Should repair or replacement of any of these parts be needs, all areas are accessible through access panels.

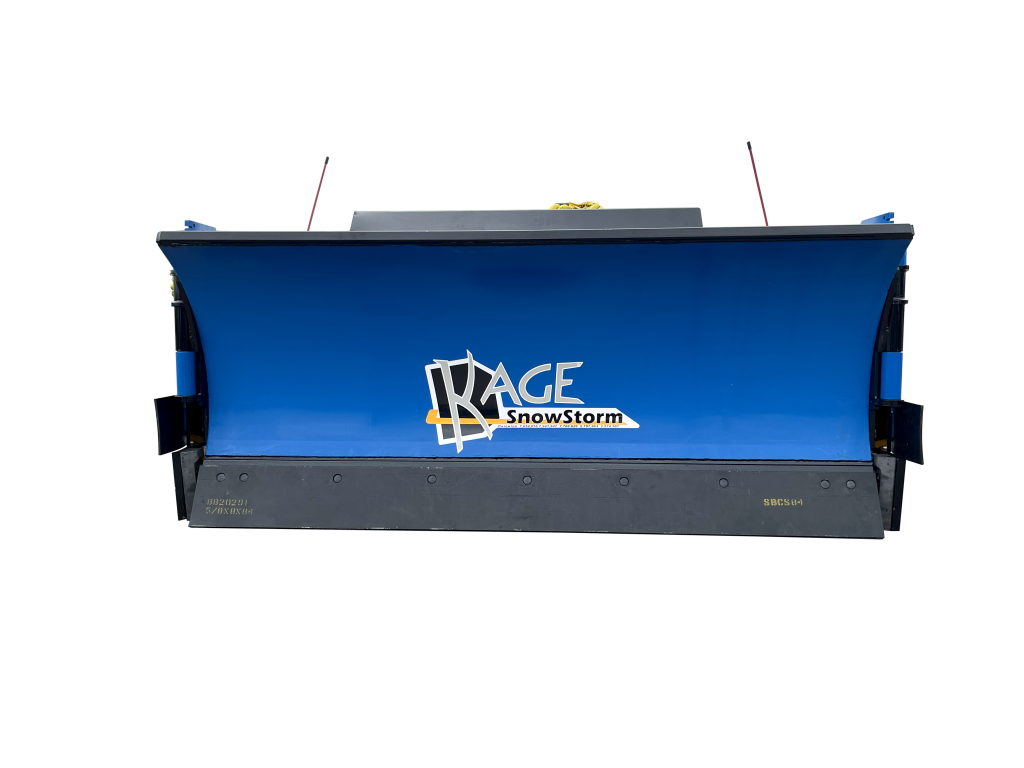

Moldboard
The snow blade is the backbone of the SnowStorm Series of plows. With that in mind, we build each moldboard as if it has to go into battle.
The tri-form box supported moldboard give you maximum durability with minimum vibration or chatter. Meanwhile the curvature of the blade front allows snow to roll in front of the plow, reducing drag and force needed from your machine
High-strength, low alloy grade 50 steel is the standard for the moldboard skin showing that we care about the materials we use. Not only does that increase tensile strength over mild steel but helps reduce the effects of corrosion.
Baked on powder coat and primer at 400+ degrees safeguards all of the steel components and keeps the blade looking great for years. The standard blue and black two-tone finish that is so unique to KAGE is a long lasting, quality product by KAGE Innovation®.
Trip Edge
The SnowStorm blade’s cutting edge trips back 90 degrees which safeguards from damage when encountering hidden obstacles. For SnowStorm Wings with 7-foot centers, the entire center cutting edge trips. Wing plows with 10′, 12′ or 14′ foot centers feature a split trip edge, preventing excessive twisting of the long cutting edge. By splitting the cutting edge in the middle, each half can trip independently, reducing the force and maintaining better snow containment. Trip edges trip back to clear obstacles such as curbs, and manhole covers.
KAGE’s sectional cutting edge – the AdvantEDGE system is compatible with the split trip edge. That doesn’t mean each individual section of the AdvantEDGE trips. Rather half the length of the full cutting edge trips with all appropriate AdvantEDGE sections attached – just as if it had a basic steel cutting edge to trip.
The trip edge action is powered by compression spring packs. The springs keep the edge from false tripping while pushing, meaning you can scrape and push without tripping unnecessarily. They also return the cutting edge to its original attack angle once the pressure against the obstacle is removed.

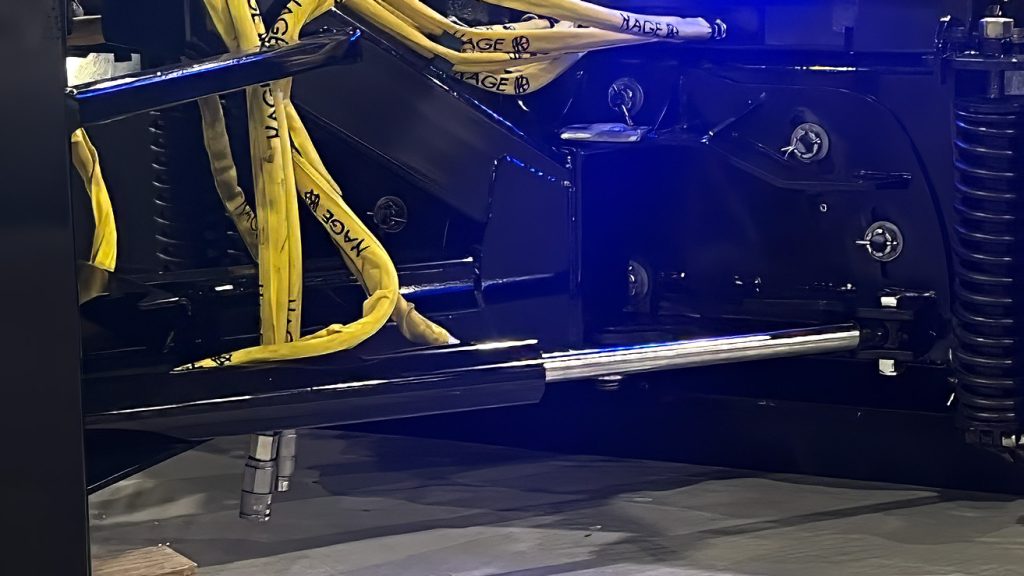

Hydraulic System
The hydraulic system for the snow blade powers the plow left and right for up to an industry-best 36-degree angle plowing.
We, too, absolutely dread that ‘midnight maintenance’ so we had that in mind when we put this hydraulic system together. This resulted in standard preventative stuff like abrasion resistant cloth hose covering on all hoses, and a crossover relief valve standard.

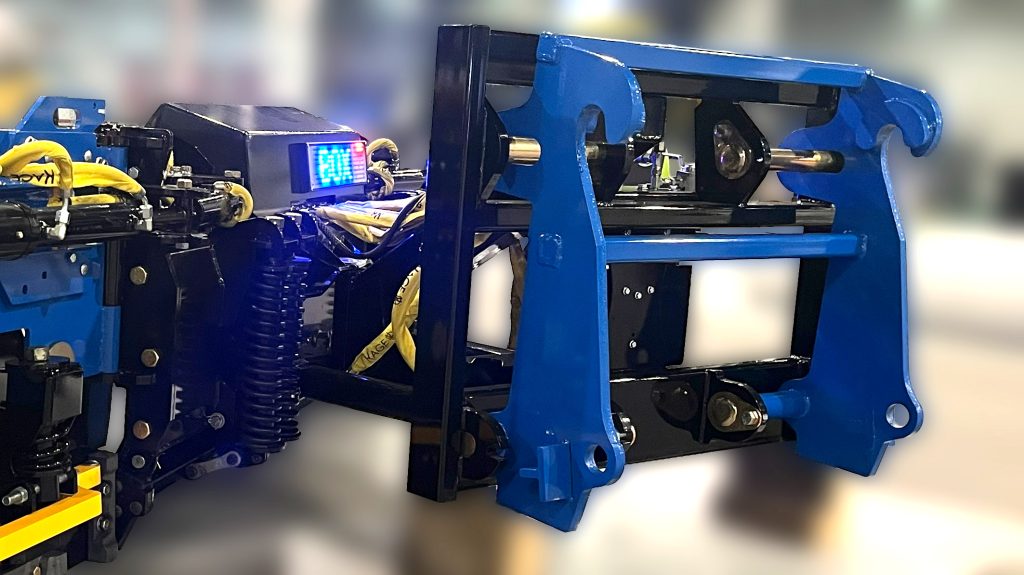

Floating Quick Attach
The quick attach that couples the carrier (loader machine) to the plow has float built right into the ears. The lower pivot points rotate on 2 x 2″ diameter 1018 cold rolled pins, while the upper slots allow the plow to float up and down riding perfectly over humps and dropping into dips.
This floating system allows the operator to concentrate on driving, and not so much on the tilt or level that the plow is sitting at. Don’t worry, whenever you want positive down pressure, simply tip the attachment forward until the quick attach meets the end of the slots, and pushes into the plow frame. (see the options tab for a list of available quick attaches)
3-Point Hitch Attachment
The 3-pt hitch attachment allows the SnowStorm Wing to quickly hook up to front mounted 3-pt hitches on 100+ horsepower tractors. The KAGE Under-Hitch is a great option for a compatible front Category II 3-point hitch on tractors.
Plow Oscillation
The SnowStorm Wing plow oscillates side to side up to 6 degrees in each direction to keep the cutting edges on the plowing surface at all times. The oscillation happens directly on the moldboard itself, so as the plow is hydraulically angled, the oscillation still operates as usual.
The bottom line is that no matter the plow angle, the oscillation will still perform as it should.
Highway Punch Cutting Edges
No matter which material or style of cutting edge you choose, the hole spacing is referred to as a “Standard Highway Punch”, so replacements are available most anywhere it snows; no need to stock custom edges or hardware for replacements! We really strive to make it easy for you, and if it’s easier for you to source cutting edges locally, do that. Otherwise, you can purchase them directly from the factory, or one of our authorized dealers!
AdvantEDGE Contouring Cutting Edge
Install the AdvantEDGE Cutting Edge System onto your SnowStorm Wing center blade for the cleanest scrape.
This live cutting edge will contour to wheel depressions and crowns as well as accommodate protruding manhole covers to ensure maximum scrape with minimum damage. It also reduces road noise from scraping and prevents uneven wear to the cutting edge as each 18” or 24” section floats and oscillates for constant contact and even pressure through its spring-loaded design.
Polyurethane Cutting Edge
Install a universal DOT punch poly cutting edge on the SnowStorm Wing to provide a gentler scrape on sensitive or decorative surfaces.
This flexible cutting edge won’t leave scratches, gouges or rust marks and typically has a similar lifespan to stock high carbon cutting edges.
Wheel Loader Attachments
Quick Attaches
The wheel loader hitch can accommodate most quick attaches found on wheel loaders and tractor loader backhoes.
The pivot frame of the plow remains the same, and the quick attach, particular to your make / model of machine merely pins on with four, 2-inch pins.
Look closely and you will see that the blade will float up and down for uneven terrain. Down pressure? Sure, just ‘dump’ the quick attach with the curl function and it will bottom out, creating down pressure for back dragging or scraping ice!
3 Point Hitch
The 3-point hitch provides a compact attachment, and full range of motion while keeping the plow as close to the machine as possible. Universal to any CAT II 3-point hitch, it can be used in combination with one of our Kage Under-Hitch Tractor Undercarriages, or any other brand.
Sizes/Width
The SnowStorm Wing plow can accommodate any width from 7 feet (with wings folded in) to 22 feet (with wings extended). This is accomplished through the use of a 7′, 10′, 12′ & 14′ center blade and 4-foot wings on both ends of the blade. Since the wings are infinitely adjustable, you can achieve any width in between the 7-foot minimum (for a 7-foot center moldboard plow) and 22-foot maximum (for a 14-foot center moldboard plow) simply by adjusting the desired angles of each wing. At the minimum 7-foot width, you can safely travel down roads under the legal road width of 102″.

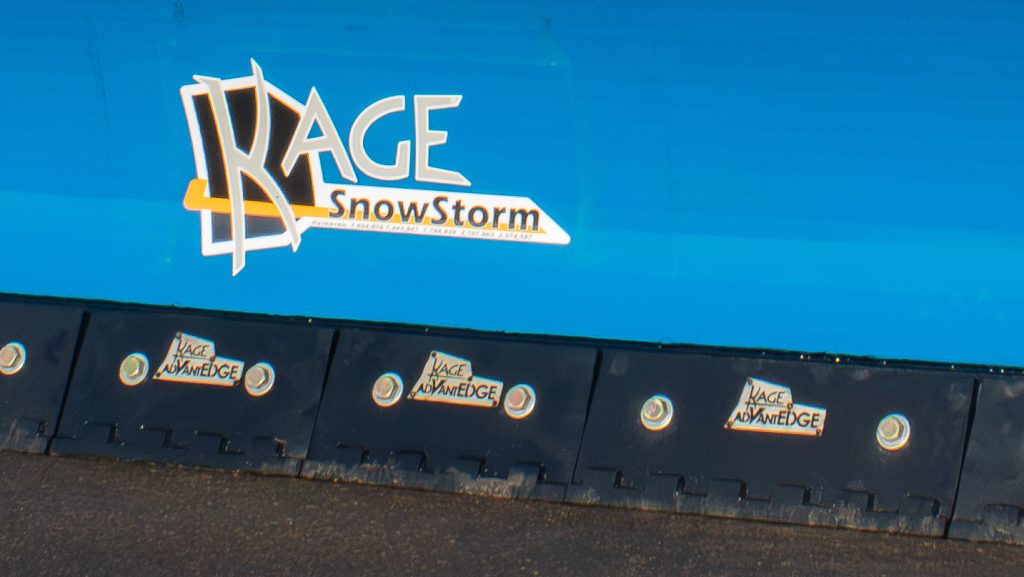

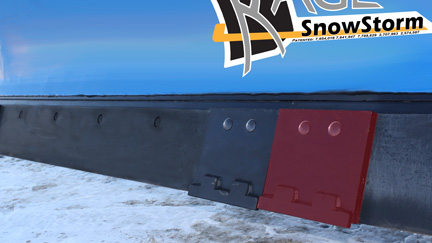

Carbide Edge Extenders
Optional Carbide Edge Extenders can be bolted on to the center and ends of the trip edge, increasing the longevity of the high carbon steel cutting edges.
AdvantEDGE Sectional Cutting Edge
Install the AdvantEDGE Cutting Edge System onto your SnowStorm Wing center blade for the cleanest scrape. This sectional contouring cutting edge is available with either carbide or Hardox steel sections.
Under-Hitch Front 3-Point Hitch Tractor Undercarriage
The KAGE Under-Hitch is a universal tractor undercarriage system that offers a front 3-point hitch option. This allows for quick and easy installation of your SnowStorm Wing plow onto the front of large ag tractors.
Foot Pedal Control
The choose the optional foot pedal control for hands-free wing positioning.
Polyurethane Cutting Edge
For a gentler touch on sensitive substrates, utilize KAGE polyurethane cutting edge kit. (Available for center moldboard cutting edge only.)

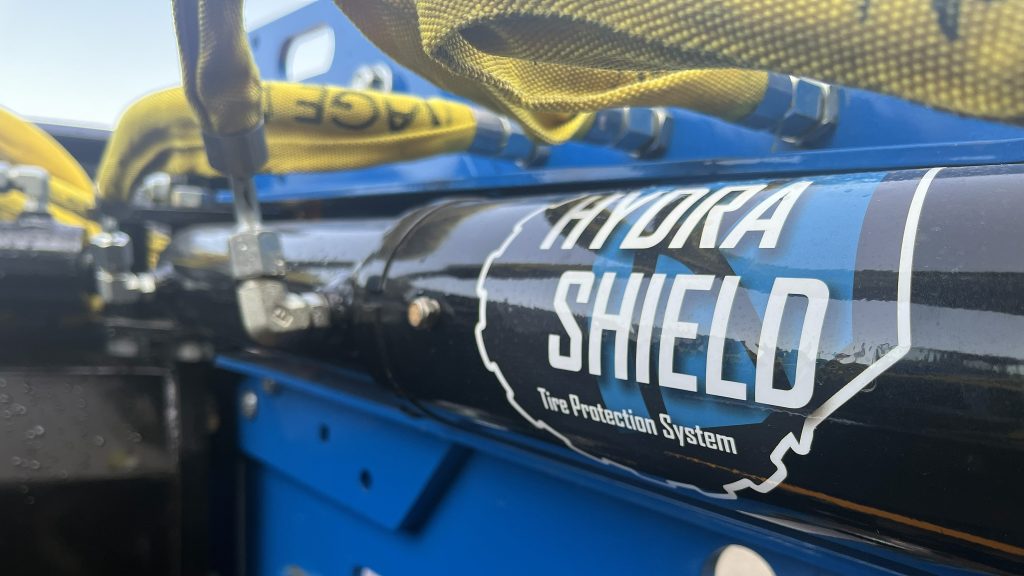

HydraShield Tire Protection
SnowStorm Wing plows with 7-foot center moldboards will benefit from the patent pending HydraShield hydraulic tire protection system which allows you to calibrate your wings to maintain a safe distance from the tires of your machine – even when the wings are back and the blade is angled.
Specifications
The SnowStorm Wing
KBSS0715'
| For Machines Weighing 15,000 – 30,000 lbs | KBSS0715 |
|---|---|
| Machine Size Rec. | 15-30K |
| Angle | 36° (Infinite) |
| Blade Width | 7′-15′ |
| Minimum Width (Wings Back) | 93.25″ |
| Oscillation Each End (Degrees) | 12°(6° Each Side) |
| Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
| Trip Springs (Moldboard/Wings) | 4/4 |
| Cutting Edge (High Carbon) | 5/8″ x 8″ x 7′ |
| Pivot Frame Length for Loader Attachment | 48″ |
| Weight | 3,750 lbs |
| Cylinders (Angle/Wing) | 3″ Bore/2″ Bore |
| Blade Height | 36″ |
KBSS1018'
| For Machines Weighing 15,000 – 30,000 lbs | BPS1018 |
|---|---|
| Machine Size Rec. | 15-30K |
| Angle | 36° |
| Blade Width | 10′-18′ |
| Minimum Width (Wings Back) | 129.25″ |
| Oscillation Each End (Degrees) | 12°(6° Each Side) |
| Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
| Trip Springs (Moldboard/Wings) | 8/4 |
| Cutting Edge (High Carbon) | 5/8″ x 8″ x 5′ (2) |
| Pivot Frame Length for Loader Attachment | 48″ |
| Weight | 4,127 lbs |
| Cylinders (Angle/Wing) | 3″ Bore/2″ Bore |
| Blade Height | 36″ |
KBSS1220'
| For Machines Weighing 15,000 – 30,000 lbs | KBSS1220 |
|---|---|
| Machine Size Rec. | 15K-30K |
| Angle | 36° |
| Blade Width | 12′-20′ |
| Minimum Width (Wings Back) | 153.25″ |
| Oscillation Each End (Degrees) | 12°(6° Each Side) |
| Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
| Trip Springs (Moldboard/Wings) | 12 |
| Cutting Edge (High Carbon) | 5/8″ x 8″ x 6′ (2) |
| Pivot Frame Length for Loader Attachment | 48″ |
| Weight | 4,378 lbs. |
| Cylinders (Angle/Wing) | 3″ Bore/2″ Bore |
| Blade Height | 36″ |
KBSS0715-3POINT'
| For Machines Weighing 15,000 – 30,000 lbs | KBSS0715-3POINT |
|---|---|
| Machine Size Rec. | 15-30K |
| Angle | 36° |
| Blade Width | 7′-15′ |
| Minimum Width (Wings Back) | 93.25″ |
| Oscillation Each End (Degrees) | 12°(6° Each Side) |
| Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
| Trip Springs (Moldboard/Wings) | 4/4 |
| Cutting Edge (High Carbon) | 5/8″ x 8″ x 7′ |
| Pivot Frame Length for Loader Attachment | 48″ |
| Weight | 3,179 lbs |
| Cylinders | 3″ Bore/2″ Bore |
| Blade Height | 36″ |
KBSS1018-3POINT'
| For Machines Weighing 15,000 – 30,000 lbs | KBSS1018-3POINT |
|---|---|
| Machine Size Rec. | 15-30K |
| Angle | 36° |
| Blade Width | 10′-18′ |
| Minimum Width (Wings Back) | 129.25″ |
| Oscillation Each End (Degrees/Inches) | 12°(6° Each Side) |
| Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
| Trip Springs (Moldboard/Wings) | 8/4 |
| Cutting Edge (High Carbon) | 3/4″ x 8″ x 5′ (2) |
| Pivot Frame Length for Loader Attachment | 48″ |
| Weight | 3,556 lbs. |
| Cylinders | 3″ Bore/2″ Bore |
| Blade Height | 46″ |
KBSS1220-3POINT'
| For Machines Weighing 15,000 – 30,000 lbs | KBSS1220-3POINT |
|---|---|
| Machine Size Rec. | 15-30K |
| Angle | 34° |
| Blade Width | 18′-26′ |
| Minimum Blade Width (Angled) | 201″ |
| Oscillation Each End (Degrees/Inches) | 12° |
| Moldboard Gauge/Steel Grade | 10 ga. / Grade 50 |
| Trip Springs (Compression) | 8 |
| Cutting Edge (High Carbon) | 3/4″ x 8″ x 6′ (2) |
| Pivot Frame Length for Loader Attachment | 48″ |
| Weight | 3,807 lbs |
| Cylinders | 3″ Bore/2″ Bore |
| Blade Height | 36″ |
Available Quick Attaches
| Make / Model | Number |
|---|---|
| JRB 416 | JRB416 |
| JRB 418 | JRB418 |
| CAT IT28 | CATIT28F-K |
| JCB 514 | JCB514 |
| JRB 418 | JRB418 |
| CAT IT38 | CATIT38F-K |
| CAT FUSION | CATFUSION |
| JOHN DEERE WORKSITEPRO | JDWKSP |
| HYUNDAI | HL740TM |
| ACS | CALL |
| VOLVO | 356-1 |
| TEREX | TERSKI863 |
Take a look at what industry professionals and the news media have published about the KAGE SnowStorm Wing plow.
Aug. 31, 2026 – KAGE Introduces HydraShield Hydraulic Tire Protection System for Wing Plow : CEG
Aug. 27, 2026 – Kage Introduces New 3-Button Control for Hydraulic Wing Plows : CEG
Feb. 2026 – In Focus Newsletter – February 2026
Nov. 6, 2025 – Be First to Own One of KAGE Innovation’s Two Newest Wing Plows : CEG
- How much does it cost? — You can find current pricing at https://shop.kageinnovation.com/snowstorm-plow-system/snowstorm-wing.html
- Do you offer it with poly contact surface? — It is available with a poly cutting edge. However, at this time the wing skids are steel only.
- Do the wings trip? Yes.
- How small of a machine can I put this on?
- ~15,000-lb Wheel Loaders (Such as a Cat 908, John Deere 324P, Yanmar V12, Wacker Neuson WL70 or Komatsu WA100M-8),
- ~100 HP Ag Tractors (Such as a Case IH Farmall Utility 100A, New Holland PowerStar 100, Case IH Vestrum 100 or Kubota M6-101)
- How do you control the wings/hydraulics?
- 3 button inline control (straps to machine joystick)
- Foot Pedal (wires in same as inline button control)
- Is the HydraShield Tire Protection System offered for the SnowStorm Wing? Yes. It is standard for those with a 7 foot center moldboard and optional for all other sizes.
- How many grease points does it have? 17
- How much does it weigh? Depending on the size, between 3,100 and 4,400 lbs
