Matching Snow Plow Size to Tractor Horsepower

A Practical Guide for Efficient Snow Removal

Whether you’re clearing a long driveway, commercial parking lot, or heavy snow on a rural farm road, picking the right snow plow size for your tractor matters. Too small, and you’ll spend longer clearing snow than needed. Too big, and your machine may struggle, slip, or put unnecessary strain on components. Below is a breakdown of KAGE Innovation’s snow plow systems and how to choose the best match for your tractor based on tractor horsepower and machine size.

---

❄️ Why Horsepower and Machine Size Matter

Before we dive into specific plow systems, here’s a quick explanation of why tractor horsepower (HP) and overall machine size guide plow size:

• Power & Control: More HP provides the ability to push larger volumes of snow without bogging down. Less HP limits pushing speed, especially in heavy wet snow.

• Traction & Weight: Horses alone aren’t enough — weight and traction play a role. Lighter tractors with adequate HP might still struggle without counterweights or tire chains.

• Attachment Demands: Systems with hydraulic angling, containment boxes, or larger blades demand more from the tractor’s hydraulics and strength.

---

Compact Tractor Snow Plows

Best for: Residential driveways, sidewalks, small business snow clearing.

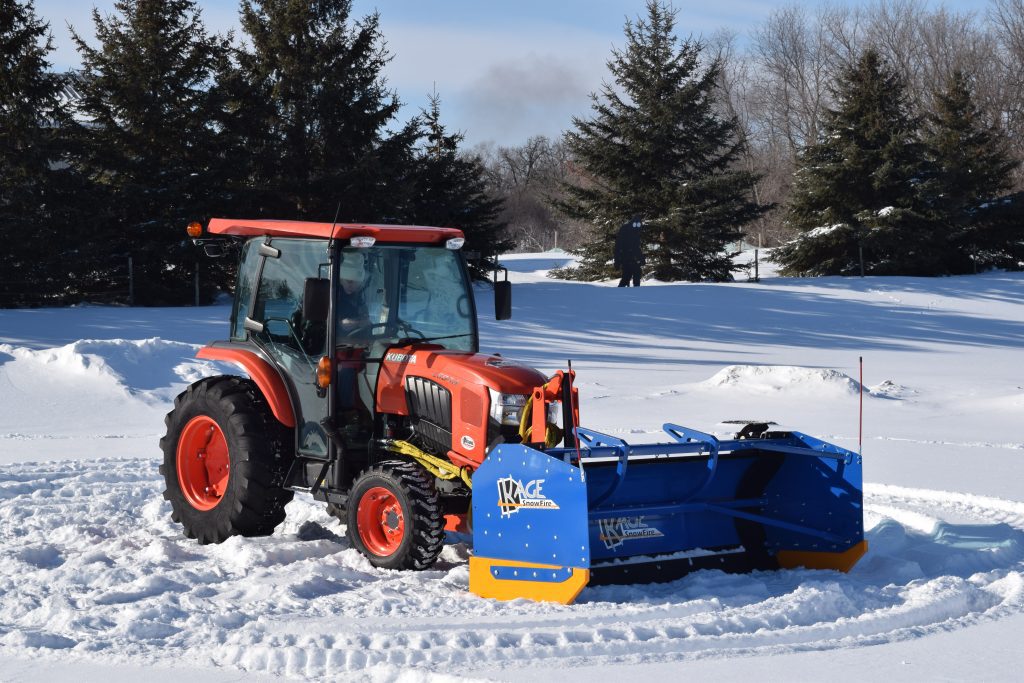

❄️ SnowFire 2-in-1 Snow Plow & Pusher

This versatile system is often the first step up from a simple blade. It allows angle plowing, pushing, and stacking snow using a combination plow and box system. Great for compact tractors.

Horsepower & Plow Size Recommendations:

Tip: If you’re using the 32″ tall plow without a box, your tractor can stay lighter — useful for tractors with just enough HP but lacking ballast.

---

❄️ Mid-Size Tractor Snow Plows

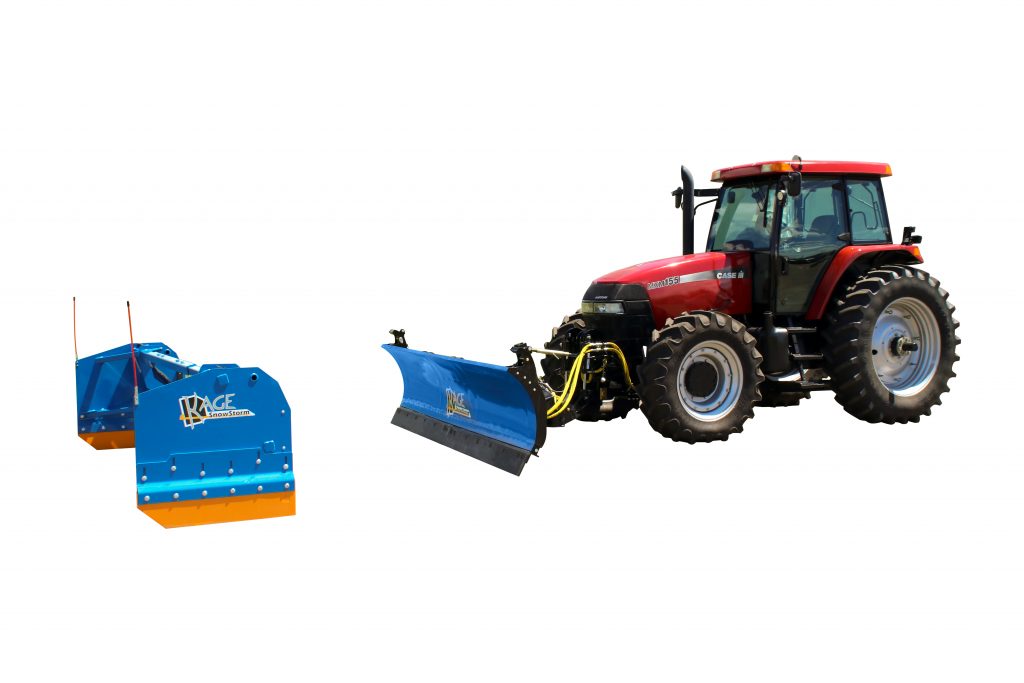

❄️ SnowStorm 2-in-1 Snow Plow System

When snow volume and clearing area increase, you step up to the SnowStorm system. Designed for tractors and loaders in the mid-size range, it offers a taller moldboard (36″) and wider widths (10′–14′).

Ideal Tractor Specs:

• 100+ Horsepower Tractors

• Tractors weighing roughly 15,000–30,000 lbs

• 10′, 12′ and 14′ plow widths are common fits

• Strong hydraulics for power angling and box attachment

Match this system to yard maintenance, light commercial lots, and service roads where snow accumulates quickly or frequently.

---

❄️ Heavy-Duty Plow Systems

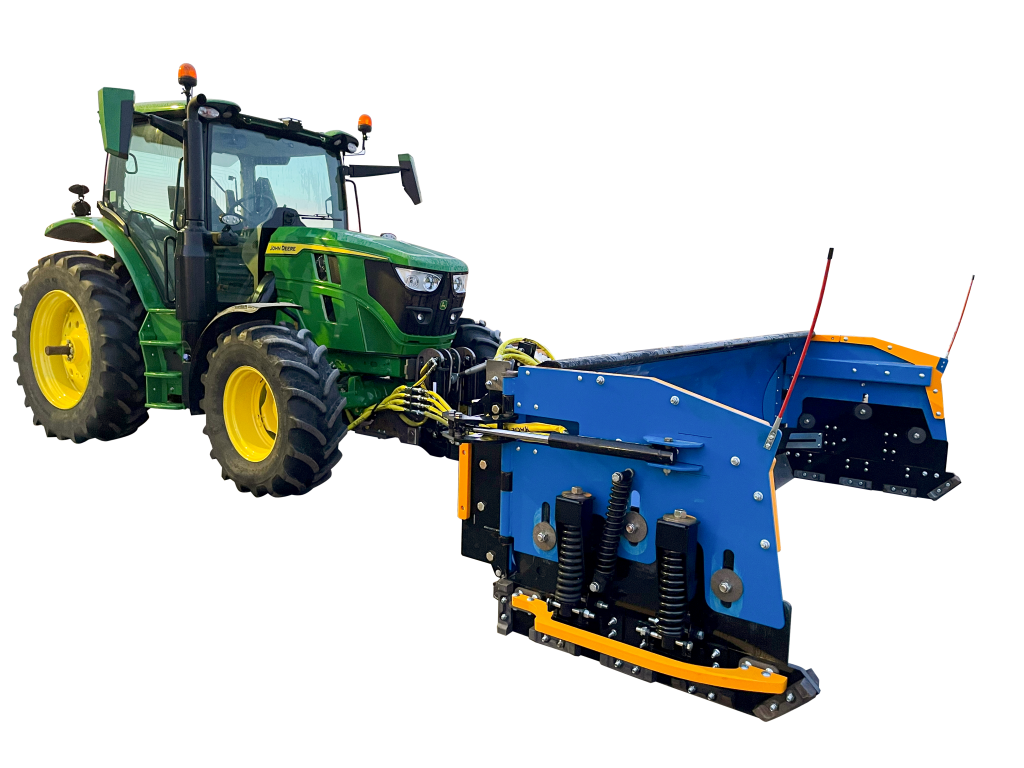

❄️ SnowDozer 2-in-1 Snow Plow System

Need to tackle big snow or big areas? The SnowDozer is built for large tractors, loaders, and heavy equipment — think commercial clearing operations, airports, or industrial yards.

Best Match:

• 300+ Horsepower Tractors / Large Wheel Loaders

• Blade widths from 12′ up to 18′ (20′ by special request)

• Taller 48″ moldboards that push huge volumes of snow

• Built for tractors/loaders weighing 25,000–50,000+ lbs

This is a pro-level system — not for residential tractors. Ideal for municipal or commercial fleet owners who clear large expanses of pavement. You can save roughly 2,000 pounds of plow weight by using the blade without the box. Call KAGE to discuss blade only options for less than 300 horsepower tractors. Do not skimp on horsepower for wing plows as they become even more demanding due to the additional hydraulics needed and increased width when the wings parallel to the moldboard.

---

General Snow Plow Sizing Tips

Even with these product lines in mind, here are some additional guidelines that help no matter your setup:

Width vs. Horsepower

• As a general rule, as horsepower increases, so can plow width — but only up to the point your machine can push efficiently without stalling or sliding.

• Smaller tractors (~30-60 HP) are comfortable with 6′–8′ blades or small 2-in-1 systems.

• Mid-range (60-100+ HP) handles 9′–14′ blades.

• High HP (200-300+) can manage very wide blades (14′+), especially with added ballast and traction aids.

Traction Is Just as Important as HP

Tractor weight, tire chains, or ballast can make or break your ability to use the horsepower effectively — especially in heavy snow or icy conditions.

Hydraulic Capacity Matters

Hydraulically-angling plows and rock-solid containment systems demand strong hydraulic flow. If your tractor’s hydraulics are marginal, consider simpler fixed pushers or lighter angle blades.

---

Final Thoughts

Matching snow plow size to tractor horsepower isn’t exact — terrain, snow type (wet vs. powder), and intended use (driveway vs. commercial lot) play big roles. But using the KAGE Innovation systems as a framework gives you clear tiers:

Compact tractors → SnowFire systems
Mid-size tractors → SnowStorm systems
Heavy tractors → SnowDozer systems

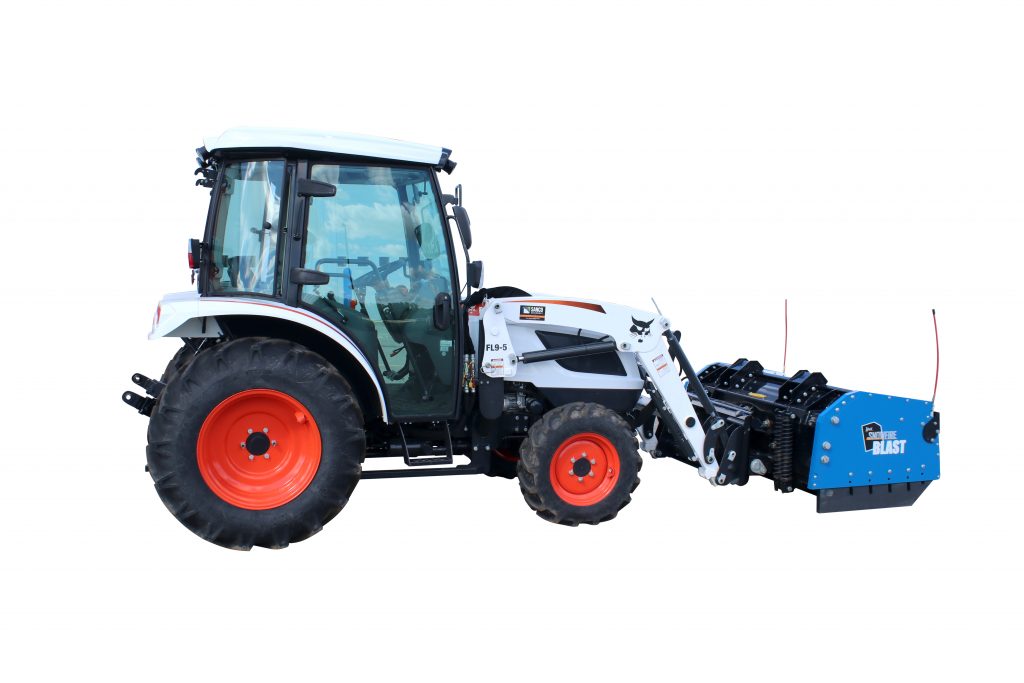

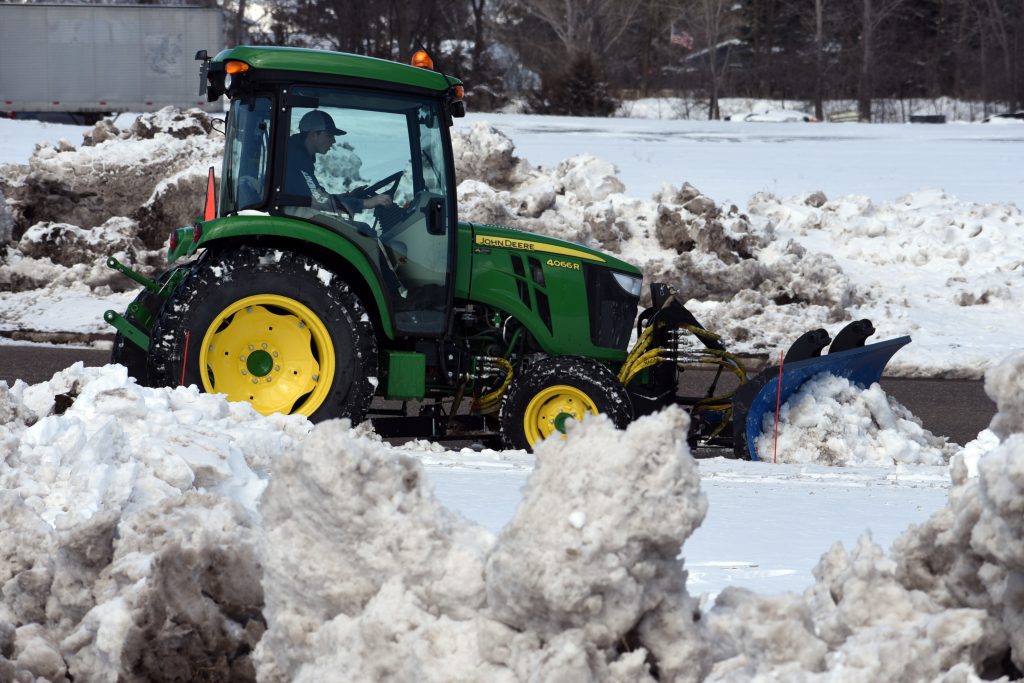

Keep in mind, these recommendations are based on your tractor plows attaching to reinforced undercarriage systems such as the KAGE Under-Hitch. If you plan to attach your plow to tractor loader arms, you’ll likely need to go smaller with your plow due to the flimsier nature of tractor loaders arms and the additional distance the plow will be in front of the tractor. You may also want to consider a shorter pivot frame on your plow – such as that offered by the KAGE SnowFire and SnowFire BLAST.

With the right match, you’ll clear snow more efficiently, reduce wear on your tractor, and get the job done with less effort each winter.
