What Is a Hydraulic Snow Plow?

by | Jan 20, 2026 | Uncategorized | 0 comments

Hydraulic hose, relief valve and treadstrip

A hydraulic snow plow is a snow removal attachment that uses a hydraulic system — pressurized fluid, pumps, and cylinders — to move and control the plow blade. Instead of manually adjusting the blade angle or position, hydraulics let the operator change angles, lift the blade, and manipulate additional functions directly from the cab of the machine.

Why Hydraulics Matter

Hydraulics are critical in heavy-duty snow removal because they provide:

  • Powerful, precise movement: Hydraulic systems multiply force, enabling large blades to angle or adjust under heavy snow loads.

  • Remote control: Operators can adjust blade angle and accessories without leaving the cab — a big advantage in cold, wet, or dangerous conditions.

  • Smooth performance: Hydraulics provide controlled adjustments, especially when plowing hard or uneven surfaces.

Most commercial plow systems — from municipal trucks to loader-mounted blades — rely on hydraulics for easier, more efficient operation.

Hydraulic Snow Plows and KAGE Innovation’s Approach

KAGE Innovation is a U.S. manufacturer known for pushing the boundaries of snow plow technology. Its hydraulic snow plows go beyond simple power-angle blades; many of its systems are versatile, integrated solutions that combine plowing, pushing, and contour control into one machine.

Here’s a breakdown of key KAGE hydraulic systems:

KAGE’s 2-in-1 Hydraulic Snow Plow Systems

Four of KAGE’s flagship hydraulic products are its 2-in-1 systems, which marry a snow blade and a snow box/pusher into one machine: SnowFire, SnowFire Xtreme SnowStorm and SnowDozer.

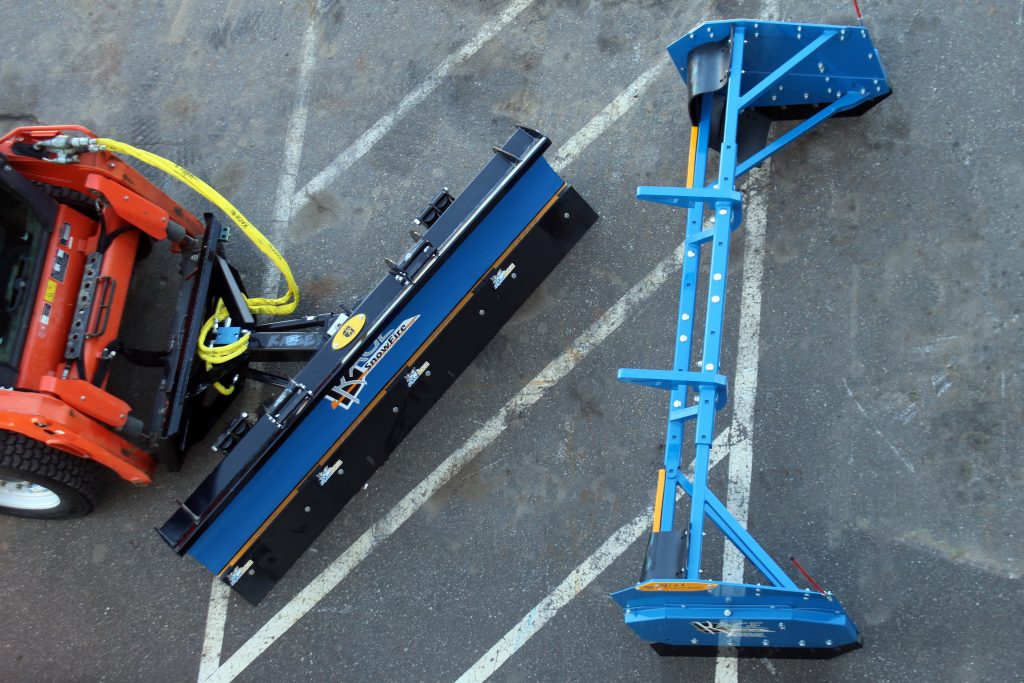

Angle Plow and Pusher

SnowFire 2-in-1 Systems

The SnowFire and SnowFire Xtreme is designed for compact loaders and tractors (roughly 4,000–15,000 lbs machines and 40+ HP tractors). It combines a hydraulically angled plow blade with a snow containment box, creating a flexible tool for windrowing, back dragging, and snow stacking — all controlled from the cab.

Here’s how hydraulics make it work:

  • Hydraulic Angling: Two hydraulic cylinders power the blade left and right for up to 35° of angle, to increase snow movement and windrowing capability.

  • Hydro-Locks: When set up for use with compact tractors, hydraulic clamps connect (and lock) the snow box to the blade without the operator leaving the seat. Operators can attach the box, angle the blade, or push snow — all with simple cab controls.

  • 3-Point Lift Arms: KAGE offers a Cat II 3-point hitch mount option for SnowFire systems so that compact tractors — typically in the ~40+ HP range — can carry the plow on front 3-point arms. Once the plow is connected, raising and lowering it works like any other 3-point implement. Hydraulic fluid pressurizes a cylinder or rockshaft that lifts the lower arms. As you move the 3-point control lever in the tractor cab, the valve directs pressurized fluid to the lift cylinder, and the arms rise — carrying the SnowFire plow up. When you lower the 3-point control, the valve allows fluid to return to the reservoir and gravity (plus controlled hydraulic flow) lets the arms drop, placing the plow back on the surface.

This system enhances productivity because a single machine and operator can plow, push, and stack snow without manual attachment changes.

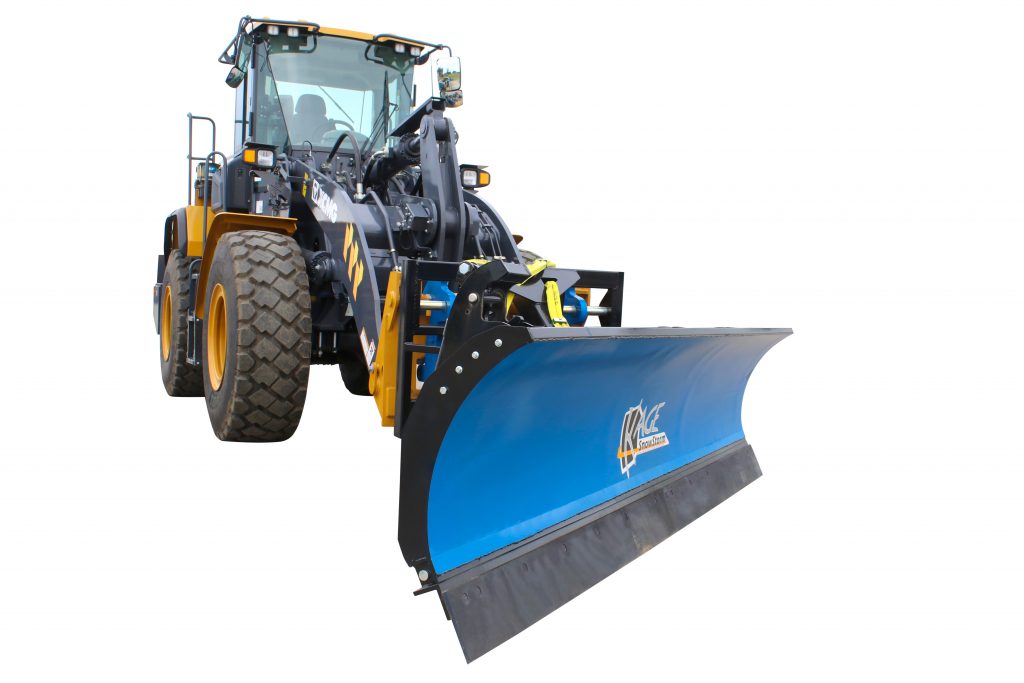

SnowStorm Hydraulic Snow PlowSnowStorm 2-in-1 System

The SnowStorm is designed for mid-size loaders and tractors (roughly 15,000–30,000 lbs machines and 100+ HP tractors). It also combines a hydraulically angled plow moldboard with a snow box, for unlimited windrowing, back dragging, and snow stacking capabilities controlled from the cab.

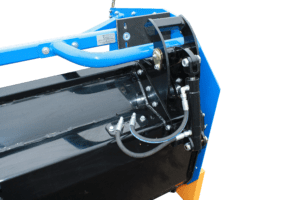

Hydro Lock Clamps for SnowStorm Plow and PusherHere’s how hydraulics make it work:

  • Hydraulic Angling: Two heavy-duty hydraulic cylinders power the blade left and right for up to 36° of angle, maximize snow movement and windrowing capability while minimizing drag.

  • Hydro-Locks: Lke the tractor compatible version of the SnowFire, all SnowStorm systems feature hydraulic clamps to connect the snow box to the blade. Operators can attach the box, angle the blade, or push snow — all with simple cab controls.

  • One-Switch Operation: An electric diverter valve lets the machine run both angle control and box locking from a single auxiliary function, making complex maneuvers easy and quick.

  • 3-Point Lift Arms: KAGE also offers a Cat II 3-point hitch mount option for SnowStorm systems that will be used on 100+ horsepower tractors.

This system allows for the same versatility of the SnowFire System to be applied on larger equipment.

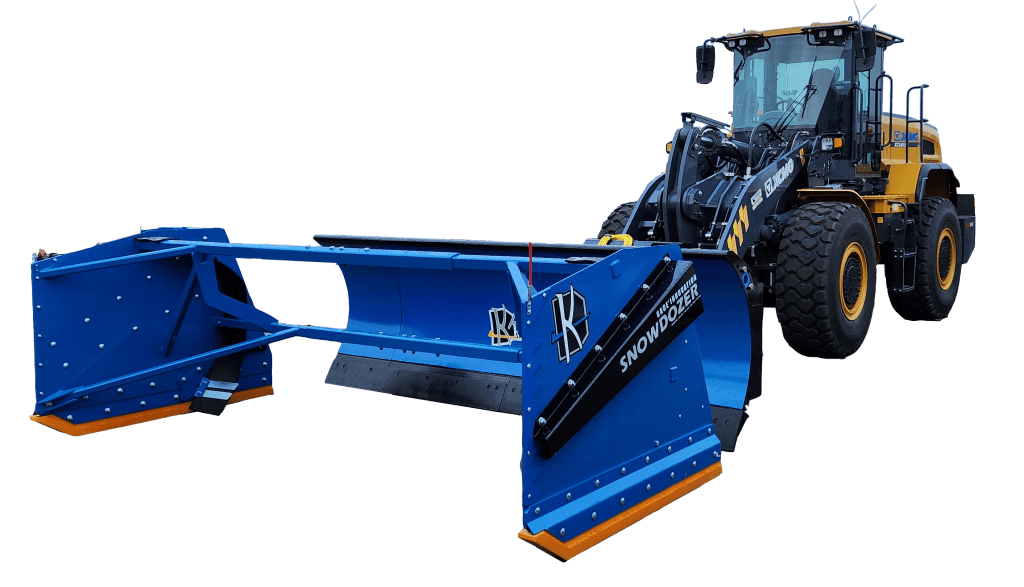

SnowDozer on XCMG Wheel LoaderSnowDozer 2-in-1 System

The SnowDozer is KAGE’s heaviest-duty version of the 2-in-1 system, built for large wheel loaders (30,000–50,000 lbs) and 300+ HP tractors. It’s similar in concept to SnowStorm but scaled up for serious work such as airports, large commercial campuses, or municipal operations.

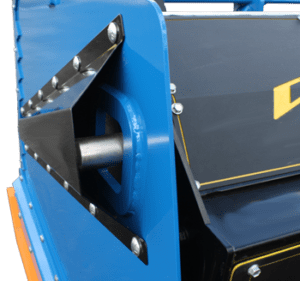

Hydraulic Locking Pin on KAGE SnowDozerHydraulics in the SnowDozer system:

  • Hydraulic Angle Control: Just like SnowStorm, hydraulics power the blade’s angle — up to around 34° in heavy work mode — enabling efficient side-to-side snow movement.

  • Hydro Lock Pins: Hydraulic pins lock the SnowKAGE containment box onto the plow. These pins extend and retract with hydraulic power, offering quick attach/detach operations and ensuring stable pushing when needed.

  • Operator Simplicity: A switch in the cab controls both the blade angling and the box lock pins without having to manually handle hardware in freezing conditions.

  • 3-Point Lift Arms: The Cat II 3-point hitch mount option is also available for SnowDozer systems that will be used on 300+ horsepower tractors.

With SnowDozer’s hydraulically-integrated system, operators tackle massive snow piles and tight spaces faster and more reliably.

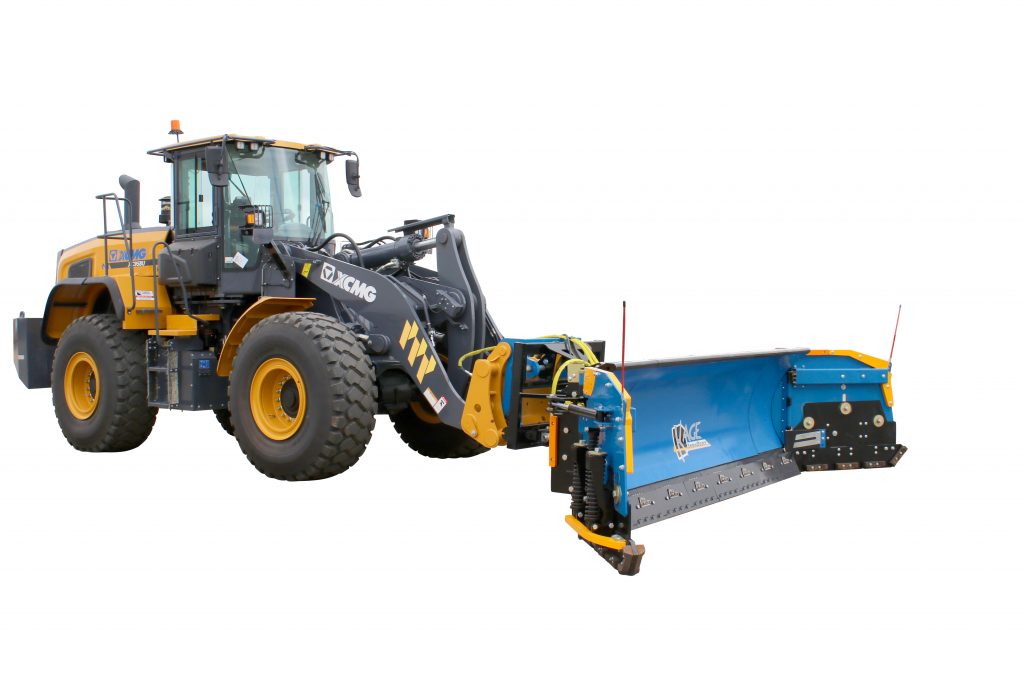

SnowDozer Wing Snow Pusher for Large Wheel LoadersHydraulically-Powered Wing Plows

In 2024, KAGE expanded beyond traditional rectangular blades with the introduction of its hydraulic wing plows — particularly the SnowDozer Wing. These systems extend plowing capability by adding hydraulically actuated wings attached to the center plow. In 2025, KAGE expanded its lineup of wing plows to include SnowFire and SnowStorm versions to accommodate a wider range of machines.

Hydraulics here do even more:

  • Independent Wing Control: Each wing has its own hydraulic cylinders, allowing infinitely adjustable wing angles up to 90° forward or backward for each side of the plow. That means a SnowDozer Wing can expand to wide widths (up to ~28 feet) or narrow down for tight areas (as low as ~10 feet) — without switching tools. SnowFire Wing and SnowStorm Wing plows can get as small as 7 feet with the wings in pusher mode.

  • Standard Moldboard Hydraulics: All KAGE wing plows utilize the same base moldboard as its 2-in-1 version, utilizing the same hydraulic setups for plow angling.

These hydraulically powered wings turn a simple plow into a dynamic snow handling machine capable of pushing snow, stacking high banks, or clearing extra-wide swaths with fewer passes.

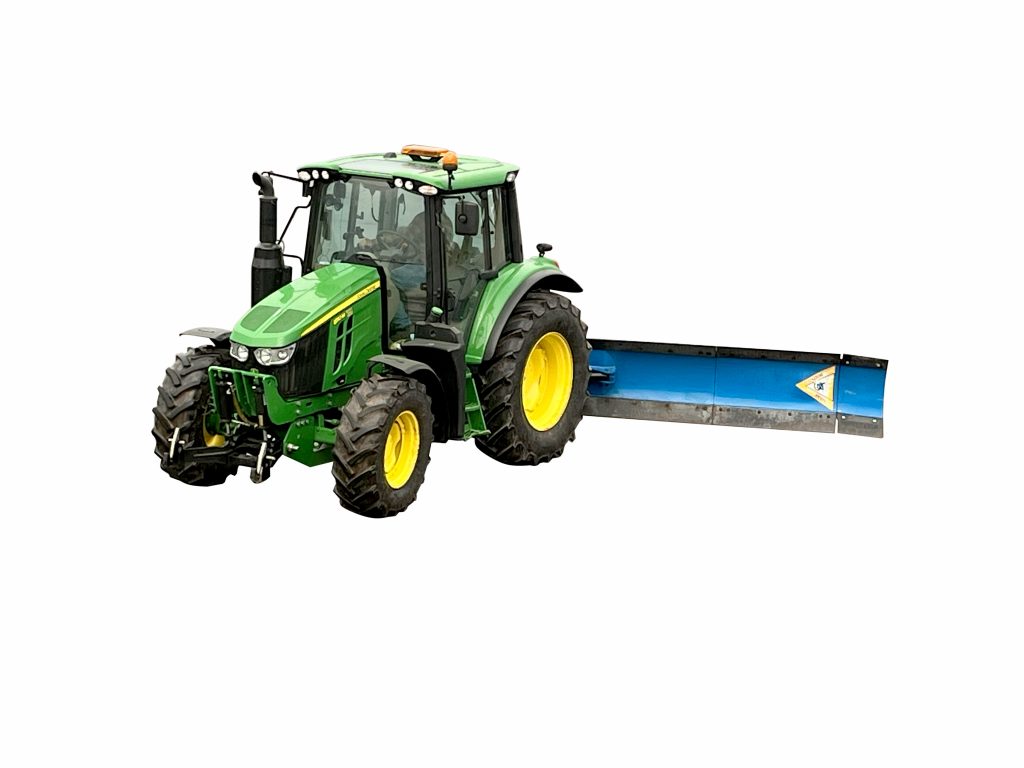

Rear Hydraulic Snow Plow for TractorsShadowBlade: The Hydraulic Rear Wing Plow

While most snow plow systems mount at the front of loaders or tractors, KAGE’s ShadowBlade takes a different approach, using hydraulics on a rear-mounted wing plow. This system:

  • Attaches to a rear 3-point hitch on tractors (9,500+ lb minimum).

  • Uses hydraulic controls (typically joystick operation) to raise, lower, and angle the wing.

  • Features a floating top link and hydraulic piston accumulator to let the blade follow contour while cushioning impacts, which helps maintain consistent ground contact over rough surfaces.

  • Hydraulics allow the wing to deploy on either side of the tractor and even fold for transport, maximizing flexibility.

The ShadowBlade gives tractors an otherwise uncommon utility: rear snow plowing with precise hydraulic control, ideal for clearing ramps, walkways, or hard-to-reach spots where front plows aren’t sufficient.

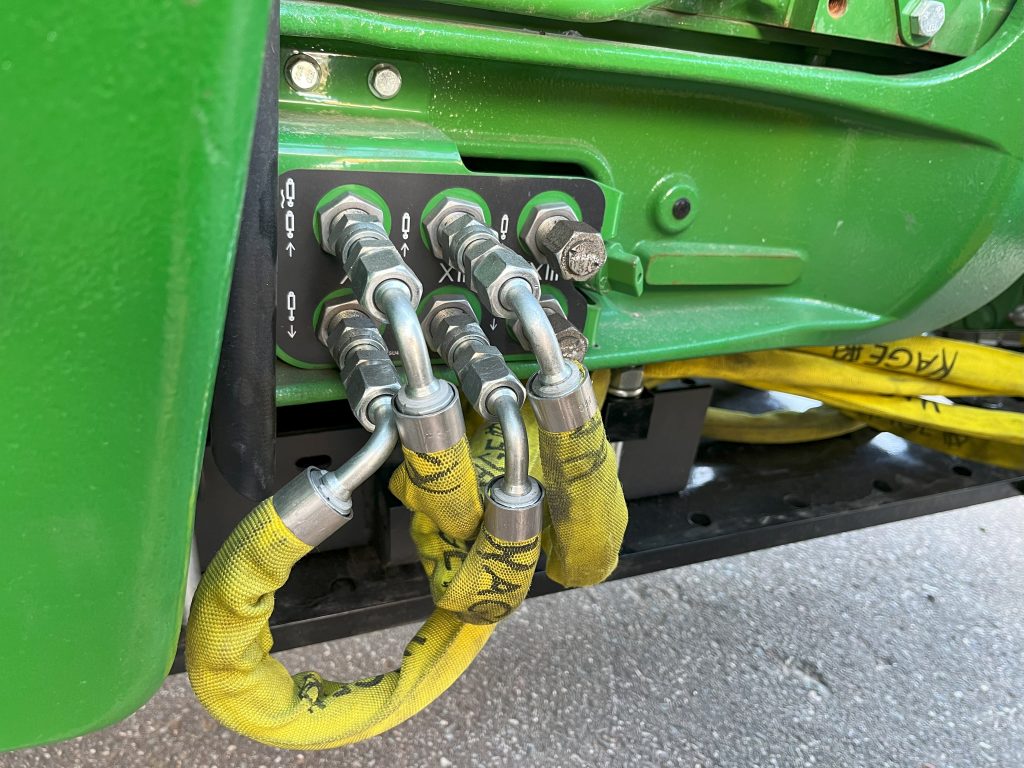

Hydraulics for Snow Plows

Hydraulics Bring Precision, Efficiency & Safety

Whether it’s an angled blade, a hydraulic wing system, or a 2-in-1 convertible plow and pusher, hydraulics transform snow removal from a manual chore into a highly controlled, efficient operation.

With every KAGE hydraulic setup — SnowFire, SnowStorm, SnowDozer, wing plows, or ShadowBlade — the key benefits revolve around:

  • Operator convenience: Adjust snow tools from the cab with minimal physical effort.

  • Versatility: One machine handles multiple tasks without swapping attachments outside.

  • Performance: Hydraulic power helps move more snow faster and with precision.

  • Safety: Reduced need to climb around in icy, snowy conditions, and better control over snow movement to protect surfaces and infrastructure.

A hydraulic snow plow is much more than a metal blade — it’s a hydraulically actuated system that gives machines the power, finesse, and adaptability needed for modern snow removal challenges. KAGE Innovation’s hydraulic plows highlight how integrated hydraulics can go even further with products like:

  • SnowFire, SnowStorm and SnowDozer 2-in-1 systems that combine plowing and pushing into a seamless workflow, hydraulically controlled from the cab;

  • Hydraulic wing plows that expand snow removal reach and flexibility;

  • The ShadowBlade rear wing plow, bringing hydraulics to back-mount snow working.

Together, these systems show how advanced hydraulic design boosts productivity, efficiency, and capabilities in the toughest winter environments.
